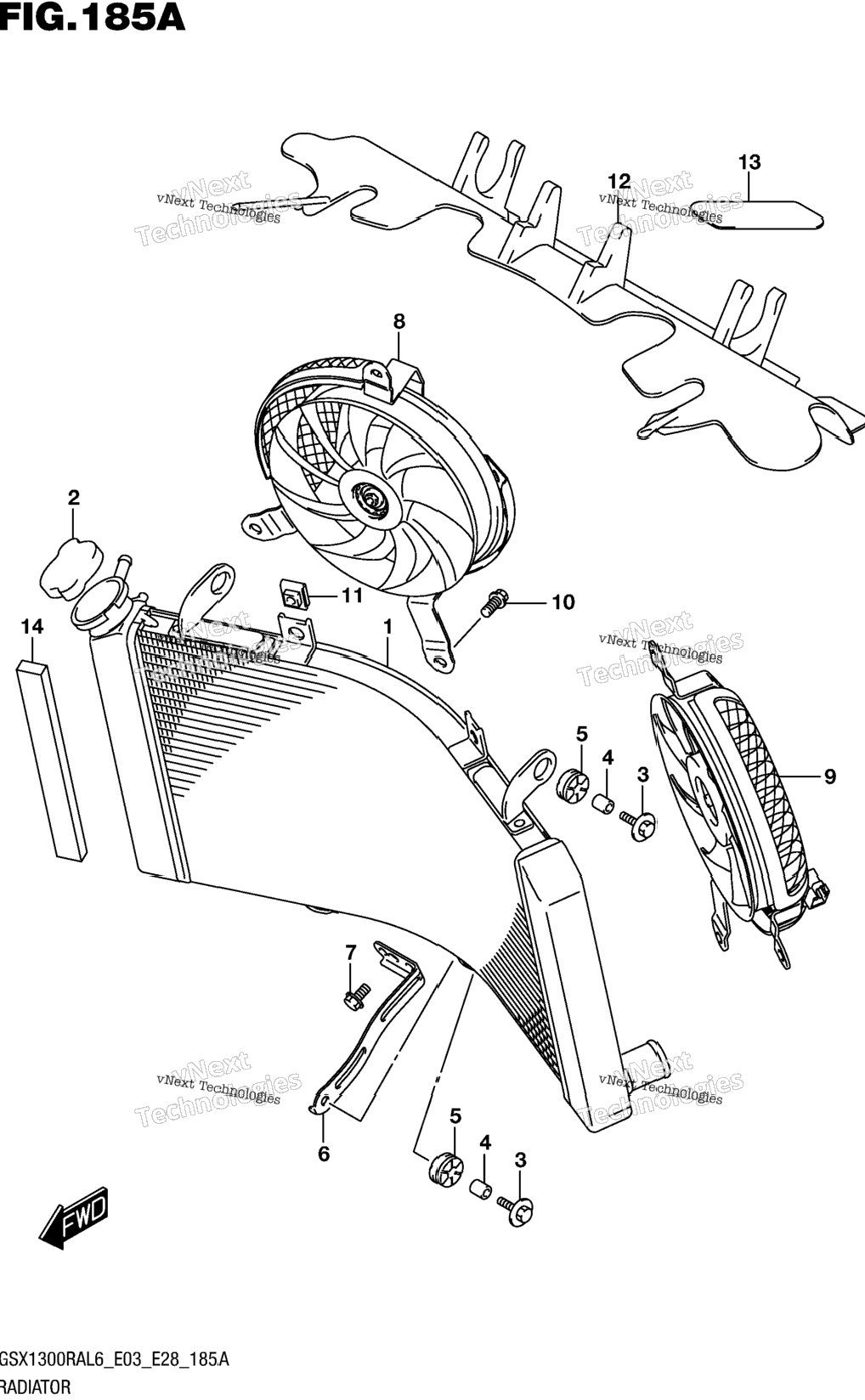

| 1 | 17710-15H10 | RADIATOR ASSY, WATER | 1 шт. | — | |
|
| 2 | 17730-08J00 | CAP | 1 шт. | — | |
|
| 3 | 09118-06097 | BOLT (6X25) | 3 шт. | — | |
|
| 4 | 09180-06290 | SPACER (6.5X10X12) | 3 шт. | — | |
|
| 5 | 09320-10051 | CUSHION | 5 шт. | — | |
|
| 6 | 17750-24F00 | BRACKET, RADIATOR LOWER | 1 шт. | — | |
|
| 7 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 8 | 17810-15H00 | FAN ASSY, RADIATOR RH | 0 шт. | — | |
|
| 9 | 17820-15H00 | FAN ASSY, RADIATOR LH | 1 шт. | — | |
|
| 10 | 17711-08J00 | BOLT, FAN ASSY | 6 шт. | — | |
|
| 11 | 17712-40F00 | NUT, FAN ASSY | 4 шт. | — | |
|
| 12 | 17771-15H00 | SHIELD, HEAT | 1 шт. | — | |
|
| 13 | 63131-10F00 | TAPE,RR FENDER (30X75X0.2) | 2 шт. | — | |
|
| 14 | 94476-17H00 | CUSHION, RESERVOIR TANK | 1 шт. | — | |
|
