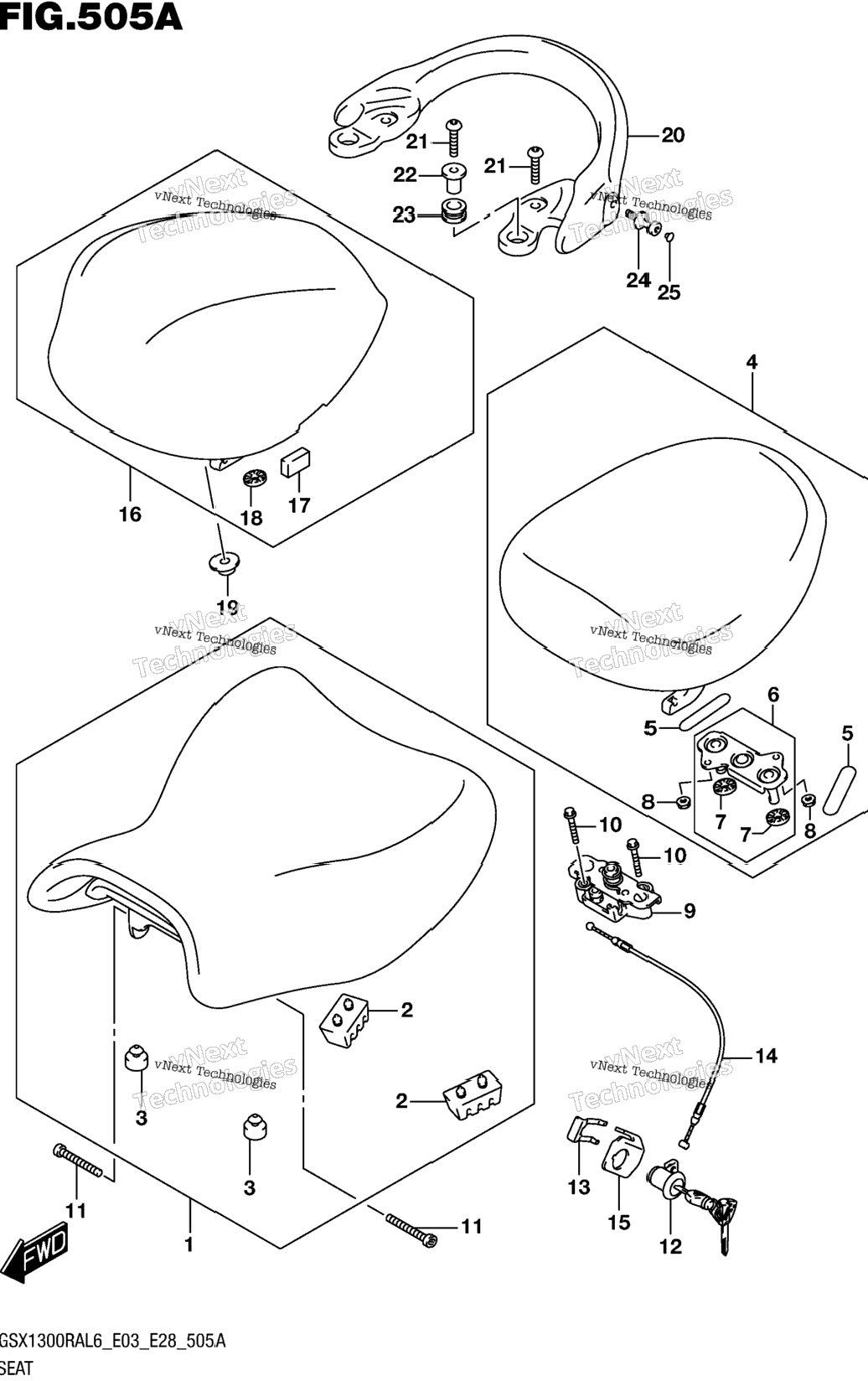

| 1 | 45100-15H01-EJY | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45149-45330 | .CUSHION | 2 шт. | — | |
|
| 3 | 09321-10011 | .CUSHION | 2 шт. | — | |
|
| 4 | 45300-15H11-U6H | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 5 | 45149-15H10 | .CUSHION | 2 шт. | — | |
|
| 6 | 45290-15H00 | .STRIKER, SEAT LOCK | 1 шт. | — | |
|
| 7 | 45213-42F00 | ..CUSHION | 2 шт. | — | |
|
| 8 | 08316-1006A | .NUT | 2 шт. | — | |
|
| 9 | 45220-15H00 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 10 | 01547-0630A | BOLT | 2 шт. | — | |
|
| 11 | 45191-15H00 | BOLT,SEAT FR | 2 шт. | — | |
|
| 12 | 95700-14F00 | LOCK ASSY, SEAT | 1 шт. | — | |
|
| 13 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 14 | 45280-18G01 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 15 | 45288-14F20 | GUIDE, CABLE | 1 шт. | — | |
|
| 16 | 45550-15H01-YVB | BOX, SEAT TAIL (BLACK) FOR AA3 | 1 шт. | — | |
|
| 17 | 45550-15H01-RB5 | BOX, SEAT TAIL (WHITE) FOR ARA | 1 шт. | — | |
|
| 18 | 45550-15H01-YYG | BOX, SEAT TAIL (RED) FOR A9Z | 1 шт. | — | |
|
| 19 | 45553-15H00 | .CUSHION | 2 шт. | — | |
|
| 20 | 45213-42F00 | .CUSHION | 2 шт. | — | |
|
| 21 | 47190-24F01 | .WASHER,FRAME COVER | 2 шт. | — | |
|
| 22 | 46211-15H01-YVB | HANDLE, PILLION RIDER (BLACK) FOR AA3 | 1 шт. | — | |
|
| 23 | 46211-15H01-RB5 | HANDLE, PILLION RIDER (WHITE) FOR ARA | 0 шт. | — | |
|
| 24 | 46211-15H01-YYG | HANDLE, PILLION RIDER (RED) FOR A9Z | 1 шт. | — | |
|
| 25 | 09106-08137 | BOLT (8X33) | 4 шт. | — | |
|
| 26 | 47190-24F11 | WASHER, PILLION RIDER HANDLE | 2 шт. | — | |
|
| 27 | 46217-24F00 | CUSHION,PILLION RIDER HANDLE | 2 шт. | — | |
|
| 28 | 46212-24F11 | HOOK, HANDLE | 2 шт. | — | |
|
| 29 | 09250-05009 | CAP (OD:10) | 2 шт. | — | |
|
| 30 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 31 | SPECIAL NOTE | AA3=YLF(GRAY),YVB(BLACK) | 0 шт. | — | |
|
| 32 | SPECIAL NOTE | ARA=RB5(WHITE),YMD(SILVER) | 0 шт. | — | |
|
| 33 | SPECIAL NOTE | A9Z=YMD(SILVER),YYG(RED) | 0 шт. | — | |
|
