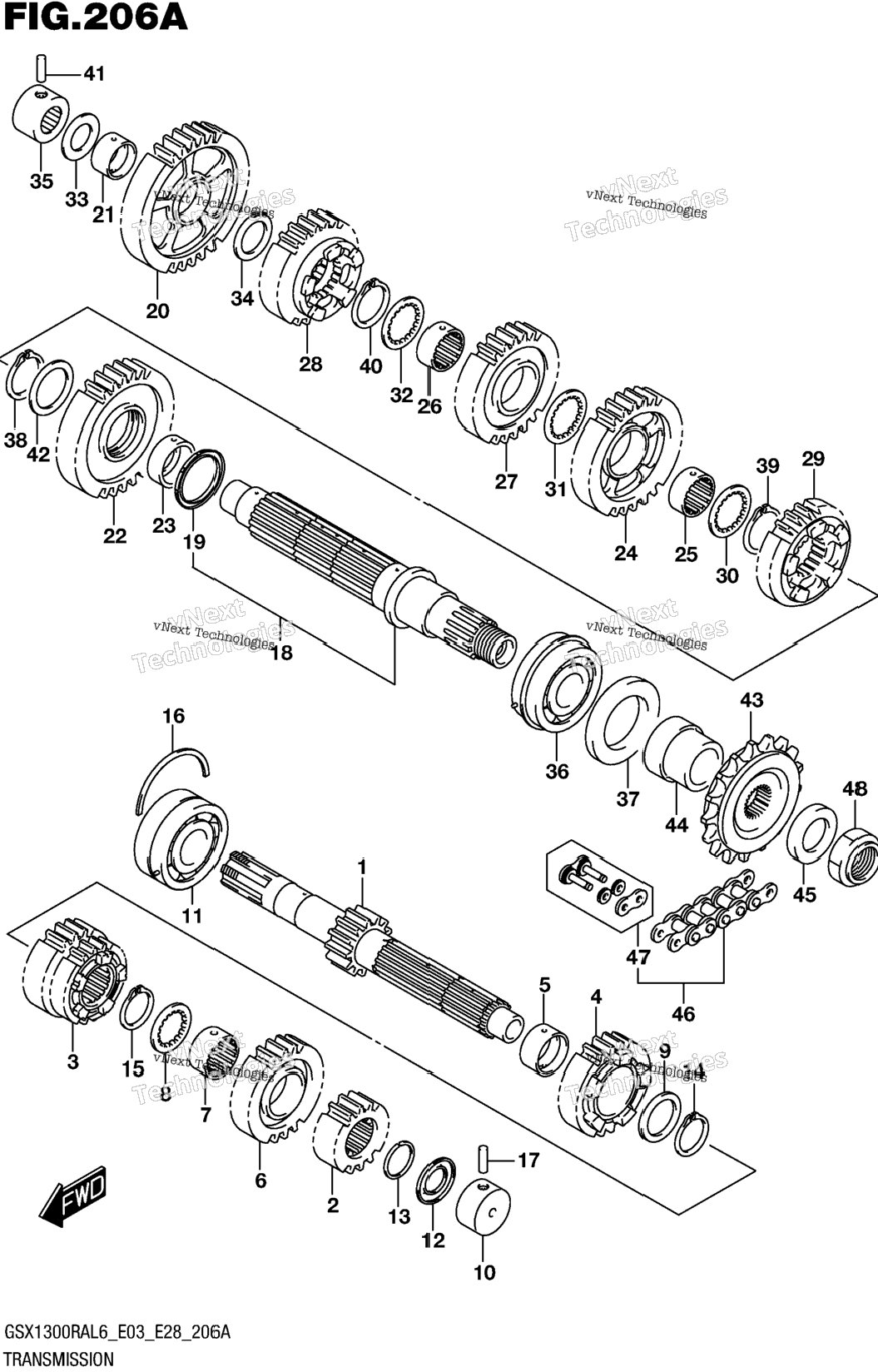

| 1 | 24120-24F00 | SHAFT, COUNTER (NT:13) | 1 шт. | — | |
|
| 2 | 24221-15H00 | GEAR,2ND DRIVE (NT:16) | 1 шт. | — | |
|
| 3 | 24231-15H00 | GEAR, 3RD & 4TH DRIVE | 1 шт. | — | |
|
| 4 | 24231-15H00 | (NT:19/21) | 0 шт. | — | |
|
| 5 | 24251-15H01 | GEAR,5TH DRIVE (NT:22) | 1 шт. | — | |
|
| 6 | 24252-24F10 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24261-15H00 | GEAR, 6TH DRIVE (NT:23) | 1 шт. | — | |
|
| 8 | 24262-24F10 | BUSH, 6TH DRIVE GEAR | 1 шт. | — | |
|
| 9 | 09167-27003 | LOCK WASHER (27X36X2.5) | 1 шт. | — | |
|
| 10 | 09181-27014 | SHIM (27X36X2.5) | 1 шт. | — | |
|
| 11 | 09263-20085 | BEARING (20X34X17.5) LH | 1 шт. | — | |
|
| 12 | 09267-25012 | BEARING (25X62X25.4) RH | 1 шт. | — | |
|
| 13 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 14 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 15 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 16 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 17 | 09390-62012 | C-RING RH | 1 шт. | — | |
|
| 18 | 04221-07209 | PIN LH | 1 шт. | — | |
|
| 19 | 24130-15H00 | SHAFT, DRIVE | 1 шт. | — | |
|
| 20 | 24136-48G01 | .RING, DRIVE SHAFT FRICTION | 1 шт. | — | |
|
| 21 | 24311-15H00 | GEAR, 1ST DRIVEN (NT:34) | 1 шт. | — | |
|
| 22 | 24312-24F10 | BUSH, 1ST DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 24321-15H00 | GEAR,2ND DRIVEN (NT:31) | 1 шт. | — | |
|
| 24 | 24322-48G00 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24331-15H00 | GEAR,3RD DRIVEN (NT:29) | 1 шт. | — | |
|
| 26 | 24332-24F10 | BUSH, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 27 | 24332-24F10 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 28 | 24341-15H00 | GEAR,4TH DRIVEN (NT:27) | 1 шт. | — | |
|
| 29 | 24351-15H01 | GEAR, 5TH DRIVEN (NT:25) | 1 шт. | — | |
|
| 30 | 24361-15H00 | GEAR,6TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 31 | 09167-30008 | LOCK WASHER | 1 шт. | — | |
|
| 32 | 09167-30008 | LOCK WASHER | 1 шт. | — | |
|
| 33 | 09167-30008 | LOCK WASHER | 1 шт. | — | |
|
| 34 | 09181-20251 | SHIM (20X34X1) | 1 шт. | — | |
|
| 35 | 09181-24005 | SHIM (24X34X1) | 1 шт. | — | |
|
| 36 | 09263-20040 | BEARING (20X34X20) RH | 1 шт. | — | |
|
| 37 | 09267-30011 | BEARING (30X62X23.8) LH | 1 шт. | — | |
|
| 38 | 09283-42018 | SEAL,OIL (42X62X7) | 1 шт. | — | |
|
| 39 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 40 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 41 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 42 | 04221-07209 | PIN | 1 шт. | — | |
|
| 43 | 08211-30405 | WASHER | 1 шт. | — | |
|
| 44 | 27510-15H00 | SPROCKET, ENGINE (NT:18) | 1 шт. | — | |
|
| 45 | 27531-15H00 | SPACER,ENGINE SPROCKET NO.1 | 1 шт. | — | |
|
| 46 | 27532-15H00 | SPACER,ENGINE SPROCKET NO.2 ( | 1 шт. | — | |
|
| 47 | 27600-24F60-118 | CHAIN ASSY, DRIVE | 1 шт. | — | |
|
| 48 | 27600-24F60-118 | (RK GB50GSVZ4) L:118->114 | 0 шт. | — | |
|
| 49 | 27620-24F60 | .JOINT SET, DRIVEN | 1 шт. | — | |
|
| 50 | 09159-22008 | NUT | 1 шт. | — | |
|
