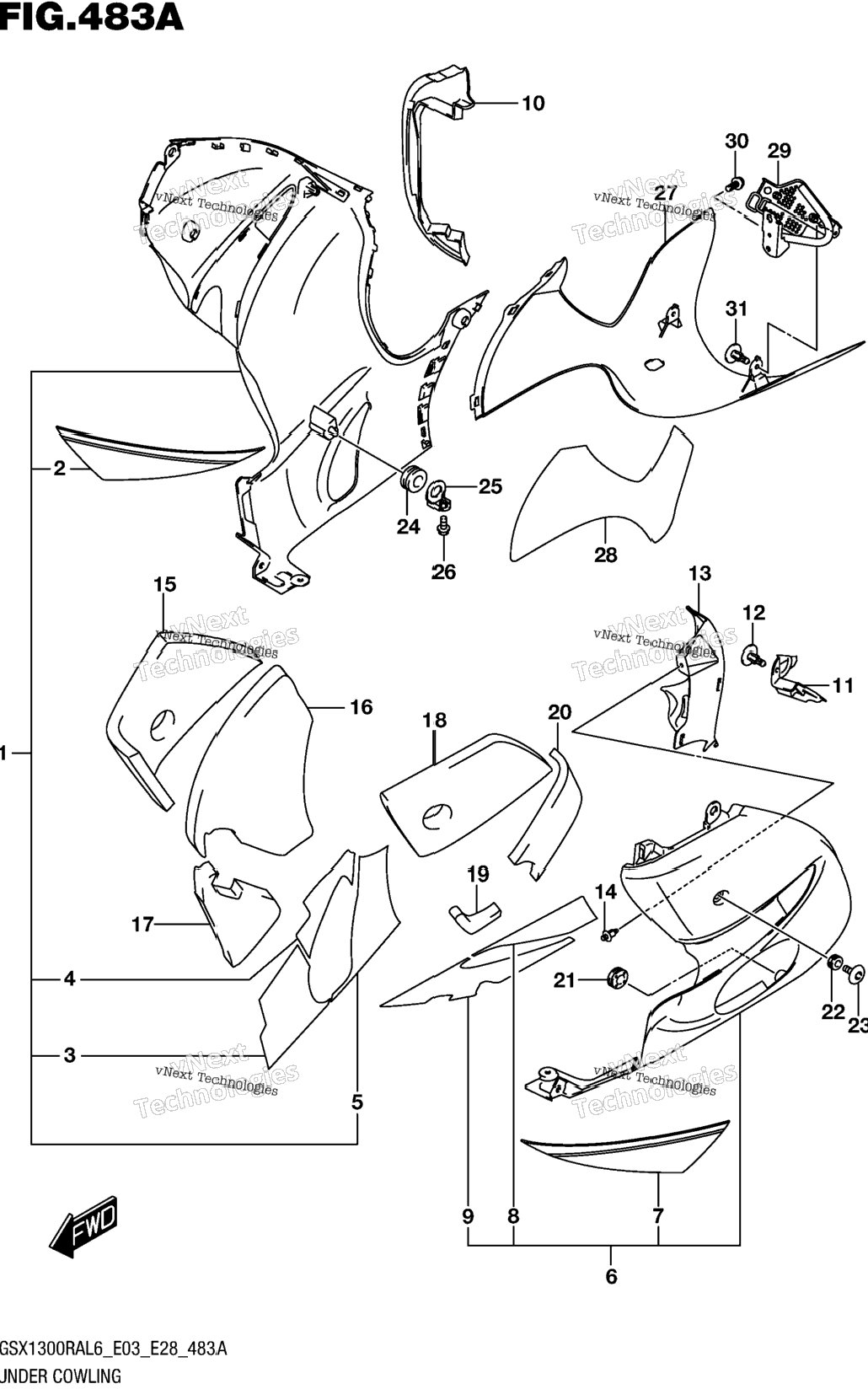

| 1 | 94470-15H50-AAX | COWLING, UNDER RH (GRAY) FOR AA3 | 1 шт. | — | |
|
| 2 | 94470-15H50-5KX | COWLING, UNDER RH (SILVER) FOR ARA | 1 шт. | — | |
|
| 3 | 94470-15H50-BCX | COWLING, UNDER RH (SILVER) FOR A9Z | 1 шт. | — | |
|
| 4 | 68185-15H50-AWS | .TAPE, UNDER COWLING RH FOR AAX | 1 шт. | — | |
|
| 5 | 68185-15H50-A96 | .TAPE, UNDER COWLING RH FOR 5KX | 0 шт. | — | |
|
| 6 | 68185-15H50-A97 | .TAPE, UNDER COWLING RH FOR BCX | 1 шт. | — | |
|
| 7 | 94472-15H00 | .SHIELD, HEAT RH NO.1 | 1 шт. | — | |
|
| 8 | 94472-15H20 | .SHIELD, HEAT RH NO.3 | 1 шт. | — | |
|
| 9 | 94472-15H10 | .SHIELD, HEAT RH NO.2 | 1 шт. | — | |
|
| 10 | 94480-15H50-AAX | COWLING, UNDER LH (GRAY) FOR AA3 | 1 шт. | — | |
|
| 11 | 94480-15H50-5KX | COWLING, UNDER LH (SILVER) FOR ARA | 1 шт. | — | |
|
| 12 | 94480-15H50-BCX | COWLING, UNDER LH (SILVER) FOR A9Z | 1 шт. | — | |
|
| 13 | 68195-15H50-AWS | .TAPE, UNDER COWLING LH FOR AAX | 1 шт. | — | |
|
| 14 | 68195-15H50-A96 | .TAPE, UNDER COWLING LH FOR 5KX | 0 шт. | — | |
|
| 15 | 68195-15H50-A97 | .TAPE, UNDER COWLING LH FOR BCX | 1 шт. | — | |
|
| 16 | 94482-15H00 | .SHIELD, HEAT LH NO.1 | 1 шт. | — | |
|
| 17 | 94482-15H10 | .SHIELD, HEAT LH NO.2 | 1 шт. | — | |
|
| 18 | 94475-15H00 | PROTECTOR, RH | 1 шт. | — | |
|
| 19 | 94485-15H00 | PROTECTOR, LH | 1 шт. | — | |
|
| 20 | 94479-35F00 | CLIP | 1 шт. | — | |
|
| 21 | 94489-15H00 | COVER, UNDER LH | 1 шт. | — | |
|
| 22 | 09409-06314-5PK | CLIP (BLACK) LH | 1 шт. | — | |
|
| 23 | 94478-15H00 | CUSHION, UNDER COWL RH NO.1 | 1 шт. | — | |
|
| 24 | 94478-15H10 | CUSHION, UNDER COWL RH NO.2 | 1 шт. | — | |
|
| 25 | 94478-15H20 | CUSHION, UNDER COWL RH NO.3 | 1 шт. | — | |
|
| 26 | 94488-15H00 | CUSHION, UNDER COWL LH NO.1 | 1 шт. | — | |
|
| 27 | 94488-15H10 | CUSHION, UNDER COWL LH NO.2 | 1 шт. | — | |
|
| 28 | 94488-15H20 | CUSHION, UNDER COWL LH NO.3 | 1 шт. | — | |
|
| 29 | 94479-15H00 | CUSHION,UNDER COWLING,L | 1 шт. | — | |
|
| 30 | 09320-09016 | CUSHION (9X18X9.5) | 3 шт. | — | |
|
| 31 | 09139-06190 | SCREW (6X20) | 4 шт. | — | |
|
| 32 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 33 | 94560-15H00 | PLATE, UNDER COWL | 2 шт. | — | |
|
| 34 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 35 | 94661-15H00-YLF | COWLING, UNDER REAR (GRAY) FOR AA3 | 1 шт. | — | |
|
| 36 | 94661-15H00-YMD | COWLING, UNDER REAR (SILVER) FOR ARA,A9Z | 1 шт. | — | |
|
| 37 | 94667-15H00 | SHIELD, HEAT | 1 шт. | — | |
|
| 38 | 94540-15H00 | BRACKET, REAR COWLING | 1 шт. | — | |
|
| 39 | 01550-0816A | BOLT | 2 шт. | — | |
|
| 40 | 94479-35F00 | CLIP | 2 шт. | — | |
|
| 41 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 42 | SPECIAL NOTE | AA3=YLF(GRAY),YVB(BLACK) | 0 шт. | — | |
|
| 43 | SPECIAL NOTE | ARA=RB5(WHITE),YMD(SILVER) | 0 шт. | — | |
|
| 44 | SPECIAL NOTE | A9Z=YMD(SILVER),YYG(RED) | 0 шт. | — | |
|
