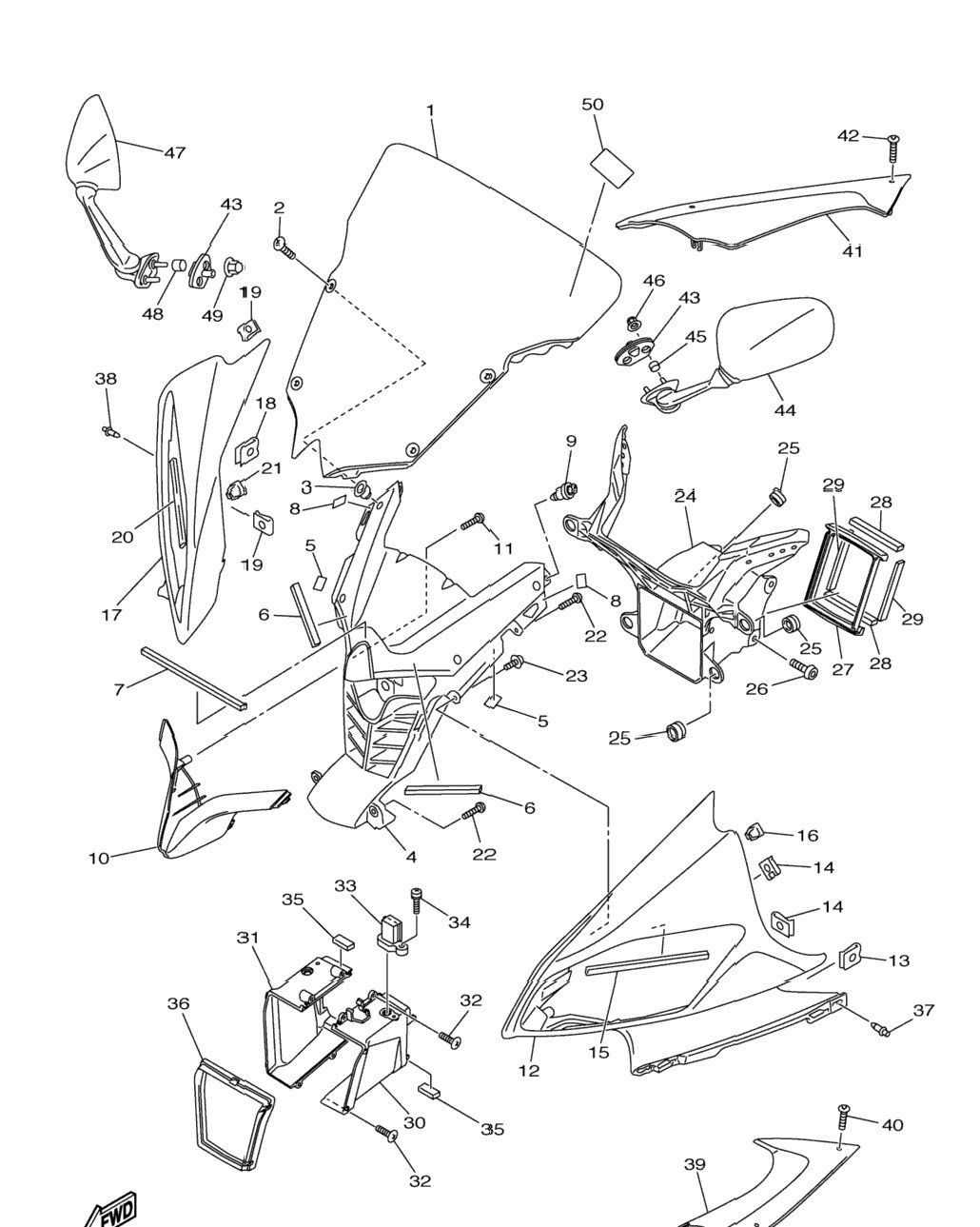

| 1 | 13S-28381-10-00 | Windshield | 1 шт. | — | |
|
| 2 | 90150-05023-00 | Screw, Round Head | 4 шт. | — | |
|
| 3 | 90179-05523-00 | Nut | 4 шт. | — | |
|
| 4 | 13S-2836K-00-00 | Panel, Inner 1 | 1 шт. | — | |
|
| 5 | 3P6-28217-00-00 | Damper 1 | 2 шт. | — | |
|
| 6 | 13S-28227-00-00 | Damper 2 | 2 шт. | — | |
|
| 7 | 13S-28237-00-00 | Damper 3 | 1 шт. | — | |
|
| 8 | 13S-28371-00-00 | Damper | 2 шт. | — | |
|
| 9 | 90269-06046-00 | Rivet | 2 шт. | — | |
|
| 10 | 13S-28365-10-00 | Cover | 1 шт. | — | |
|
| 12 | 13S-2835G-00-P1 | Body, Front Upper 1 BWC1 | 1 шт. | — | |
|
| 17 | 13S-2835H-00-P1 | Body, Front Upper 2 BWC1 | 1 шт. | — | |
|
| 18 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 18 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 19 | 90183-05042-00 | Nut, Spring | 2 шт. | — | |
|
| 19 | 90183-05042-00 | Nut, Spring | 2 шт. | — | |
|
| 20 | 2C0-28455-00-00 | Damper, 4 | 1 шт. | — | |
|
| 20 | 2C0-28455-00-00 | Damper, 4 | 1 шт. | — | |
|
| 21 | 90480-01605-00 | Grommet | 1 шт. | — | |
|
| 21 | 90480-01605-00 | Grommet | 1 шт. | — | |
|
| 22 | 97707-50016-00 | Screw, Truss Head Tapping | 4 шт. | — | |
|
| 23 | 97707-40012-00 | .Screw, Tapping | 2 шт. | — | |
|
| 24 | 13S-28356-00-00 | Stay 1 | 1 шт. | — | |
|
| 25 | 4XV-83513-00-00 | Damper | 7 шт. | — | |
|
| 26 | 90111-06116-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 27 | 2C0-28342-01-00 | Joint | 0 шт. | — | |
|
| 28 | 2C0-28217-00-00 | Damper 1 | 2 шт. | — | |
|
| 29 | 2C0-28227-00-00 | .Damper 2 | 2 шт. | — | |
|
| 30 | 13S-2838R-00-00 | Duct 2 | 0 шт. | — | |
|
| 31 | 13S-2838T-00-00 | Duct 3 | 1 шт. | — | |
|
| 32 | 97702-40016-00 | Screw, Tapping | 2 шт. | — | |
|
| 32 | 97702-40016-00 | Screw, Tapping | 4 шт. | — | |
|
| 33 | 8FP-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 34 | 97702-50116-00 | Screw, Tapping | 1 шт. | — | |
|
| 35 | 51Y-21639-00-00 | Damper 2 | 4 шт. | — | |
|
| 36 | 2C0-28371-00-00 | Damper | 1 шт. | — | |
|
| 38 | 90269-06008-00 | Rivet | 1 шт. | — | |
|
| 38 | 90269-06008-00 | Rivet | 1 шт. | — | |
|
| 39 | 13S-2837L-00-00 | Panel, Console 1 | 1 шт. | — | |
|
| 41 | 13S-2837M-00-00 | Panel, Console 2 | 1 шт. | — | |
|
| 42 | 90111-05021-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 42 | 90111-05021-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 43 | 13S-26298-00-00 | Plate, Mirror Fitting 1 | 2 шт. | — | |
|
| 44 | 13S-26280-10-00 | Rear View Mirror Assy (Left) | 1 шт. | — | |
|
| 47 | 13S-26290-10-00 | Rear View Mirror Assy (Right) | 1 шт. | — | |
|
| 48 | 90387-064T3-00 | Collar | 2 шт. | — | |
|
| 48 | 90387-064T3-00 | Collar | 2 шт. | — | |
|
| 49 | 90176-06008-00 | Nut, Crown | 2 шт. | — | |
|
| 49 | 90176-06008-00 | Nut, Crown | 2 шт. | — | |
|
| 50 | 4B5-2815K-00-00 | Label, Notice Windshield 1 | 1 шт. | — | |
|
