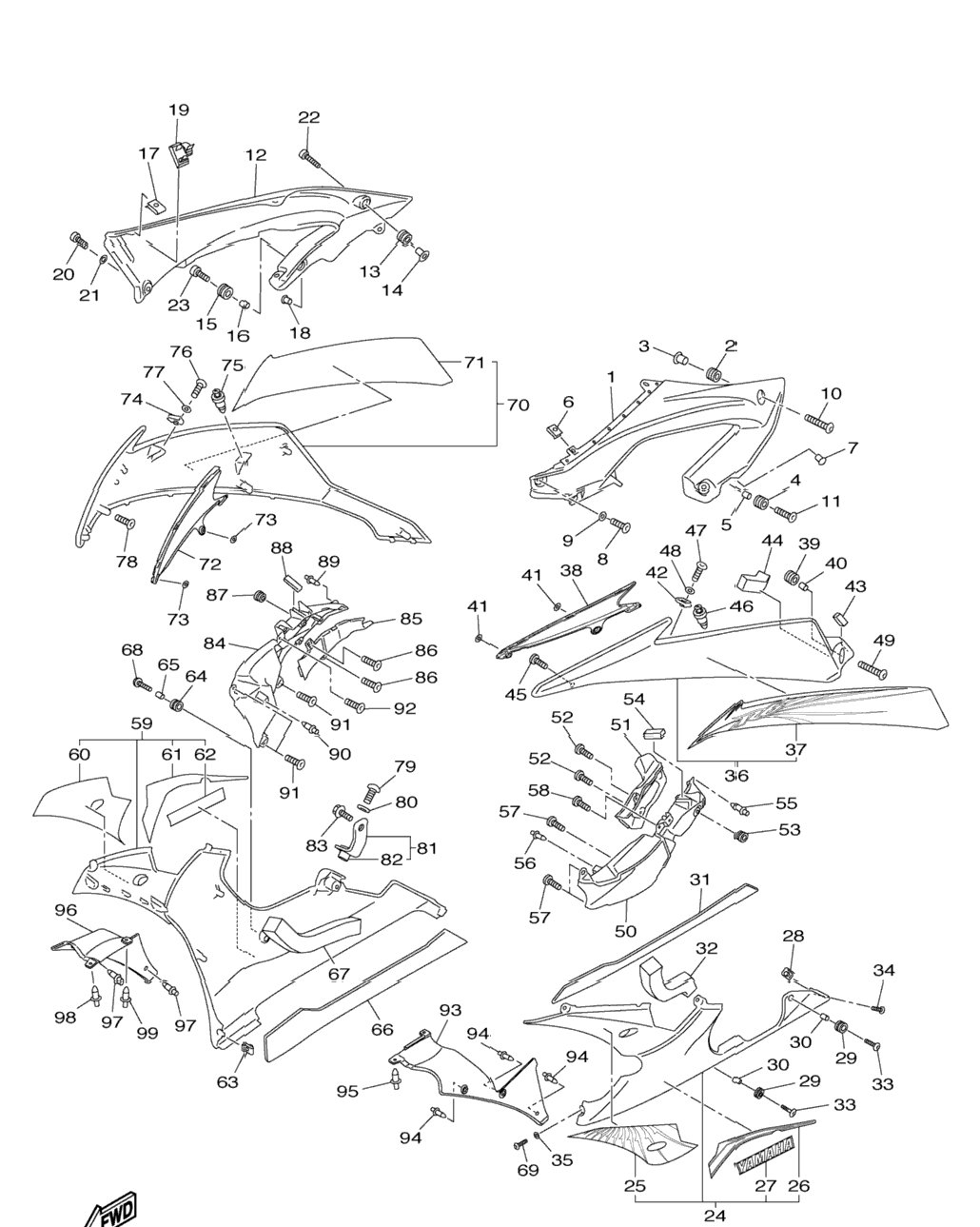

| 1 | 13S-2117V-00-P1 | Cover 7 BWC1 | 1 шт. | — | |
|
| 12 | 13S-2117W-00-P1 | Cover 8 BWC1 | 1 шт. | — | |
|
| 13 | 90480-12613-00 | Grommet | 1 шт. | — | |
|
| 13 | 90480-12613-00 | Grommet | 1 шт. | — | |
|
| 14 | 90387-067K8-00 | Collar | 1 шт. | — | |
|
| 14 | 90387-067K8-00 | Collar | 1 шт. | — | |
|
| 18 | 90338-06134-00 | Plug | 1 шт. | — | |
|
| 18 | 90338-06134-00 | Plug | 1 шт. | — | |
|
| 19 | 90464-20014-00 | Clamp | 1 шт. | — | |
|
| 22 | 90111-06063-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 22 | 90111-06063-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 24 | 13S-W2838-00-33 | Under Cover Comp. 1 YB | 1 шт. | — | |
|
| 25 | 1JS-283A1-30-00 | . .Graphic, Under Cover 1 | 1 шт. | — | |
|
| 26 | 1JS-283A3-00-00 | . .Graphic, Under Cover 3 | 1 шт. | — | |
|
| 31 | 13S-2838G-00-00 | Seat 1 | 1 шт. | — | |
|
| 32 | 90520-50002-00 | Damper, Plate | 1 шт. | — | |
|
| 36 | 13S-W283U-00-33 | Panel Assy 1 YB | 1 шт. | — | |
|
| 37 | 1JS-28391-40-00 | . .Graphic 1 | 1 шт. | — | |
|
| 38 | 13S-28219-00-00 | Cover 1 | 1 шт. | — | |
|
| 43 | 13S-28415-00-00 | Damper 1 | 1 шт. | — | |
|
| 44 | 90520-50001-00 | Damper, Plate | 1 шт. | — | |
|
| 50 | 13S-2137U-00-00 | Guide, Air 1 | 1 шт. | — | |
|
| 51 | 13S-2137K-00-00 | Guide, Air 3 | 1 шт. | — | |
|
| 59 | 13S-W2839-00-33 | Under Cover Comp. 2 YB | 1 шт. | — | |
|
| 60 | 1JS-283A2-30-00 | . .Graphic, Under Cover 2 | 0 шт. | — | |
|
| 61 | 1JS-283A4-00-00 | . .Graphic, Under Cover 4 | 1 шт. | — | |
|
| 62 | 1JS-2153E-20-00 | . .Emblem, Yamaha | 1 шт. | — | |
|
| 62 | 1JS-2153E-20-00 | . .Emblem, Yamaha | 1 шт. | — | |
|
| 64 | 90480-14003-00 | Grommet | 1 шт. | — | |
|
| 64 | 90480-14003-00 | Grommet | 2 шт. | — | |
|
| 64 | 90480-14003-00 | Grommet | 1 шт. | — | |
|
| 64 | 90480-14003-00 | Grommet | 1 шт. | — | |
|
| 64 | 90480-14003-00 | Grommet | 1 шт. | — | |
|
| 65 | 90387-06260-00 | .Collar | 1 шт. | — | |
|
| 65 | 90387-06260-00 | .Collar | 1 шт. | — | |
|
| 65 | 90387-06260-00 | .Collar | 2 шт. | — | |
|
| 65 | 90387-06260-00 | .Collar | 1 шт. | — | |
|
| 65 | 90387-06260-00 | .Collar | 1 шт. | — | |
|
| 66 | 13S-2848K-00-00 | Seat 2 | 1 шт. | — | |
|
| 67 | 13S-2847R-00-00 | Damper 10 | 1 шт. | — | |
|
| 68 | 90111-06040-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 68 | 90111-06040-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 68 | 90111-06040-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 68 | 90111-06040-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 68 | 90111-06040-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 70 | 13S-W283V-00-33 | Panel Assy 2 YB | 1 шт. | — | |
|
| 71 | 1JS-28392-40-00 | . .Graphic 2 | 1 шт. | — | |
|
| 72 | 13S-28229-00-00 | Cover 2 | 1 шт. | — | |
|
| 73 | 90183-05M02-00 | Nut, Spring | 2 шт. | — | |
|
| 73 | 90183-05M02-00 | Nut, Spring | 2 шт. | — | |
|
| 74 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 74 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 74 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 74 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 74 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 74 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 75 | 90269-07007-00 | Rivet | 1 шт. | — | |
|
| 75 | 90269-07007-00 | Rivet | 1 шт. | — | |
|
| 76 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 76 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 76 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 76 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 76 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 76 | 90110-05201-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 77 | 90202-05180-00 | Washer, Plate | 1 шт. | — | |
|
| 77 | 90202-05180-00 | Washer, Plate | 1 шт. | — | |
|
| 77 | 90202-05180-00 | Washer, Plate | 1 шт. | — | |
|
| 77 | 90202-05180-00 | Washer, Plate | 1 шт. | — | |
|
| 77 | 90202-05180-00 | Washer, Plate | 1 шт. | — | |
|
| 79 | 90109-06207-00 | Bolt | 1 шт. | — | |
|
| 80 | 90202-10024-00 | Washer, Plate | 1 шт. | — | |
|
| 81 | 13S-2836G-00-00 | Bracket 4 | 1 шт. | — | |
|
| 82 | 90179-06059-00 | . .Nut | 1 шт. | — | |
|
| 83 | 90105-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 84 | 13S-2137V-00-00 | Guide, Air 2 | 1 шт. | — | |
|
| 85 | 13S-2137L-00-00 | Guide, Air 4 | 1 шт. | — | |
|
| 86 | 97702-50016-00 | Screw, Tapping | 2 шт. | — | |
|
| 86 | 97702-50016-00 | Screw, Tapping | 2 шт. | — | |
|
| 87 | 90480-01558-00 | Grommet | 1 шт. | — | |
|
| 87 | 90480-01558-00 | Grommet | 1 шт. | — | |
|
| 88 | 13S-28217-00-00 | Damper 1 | 1 шт. | — | |
|
| 88 | 13S-28217-00-00 | Damper 1 | 1 шт. | — | |
|
| 90 | 90269-06081-00 | Rivet | 1 шт. | — | |
|
| 90 | 90269-06081-00 | Rivet | 1 шт. | — | |
|
| 91 | 97707-50016-00 | Screw, Truss Head Tapping | 3 шт. | — | |
|
| 91 | 97707-50016-00 | Screw, Truss Head Tapping | 2 шт. | — | |
|
| 91 | 97707-50016-00 | Screw, Truss Head Tapping | 3 шт. | — | |
|
| 91 | 97707-50016-00 | Screw, Truss Head Tapping | 1 шт. | — | |
|
| 92 | 97702-50020-00 | Screw, Tapping | 1 шт. | — | |
|
| 92 | 97702-50020-00 | Screw, Tapping | 1 шт. | — | |
|
| 93 | 13S-2836L-00-00 | Panel, Inner 2 | 1 шт. | — | |
|
| 96 | 13S-2836M-00-00 | Panel, Inner 3 | 1 шт. | — | |
|
| 98 | 90269-06002-00 | Rivet | 1 шт. | — | |
|
| 98 | 90269-06002-00 | Rivet | 1 шт. | — | |
|
| 99 | 90269-06008-00 | Rivet | 1 шт. | — | |
|
| 99 | 90269-06008-00 | Rivet | 3 шт. | — | |
|
| 99 | 90269-06008-00 | Rivet | 1 шт. | — | |
|
| 99 | 90269-06008-00 | Rivet | 2 шт. | — | |
|
| 99 | 90269-06008-00 | Rivet | 1 шт. | — | |
|
