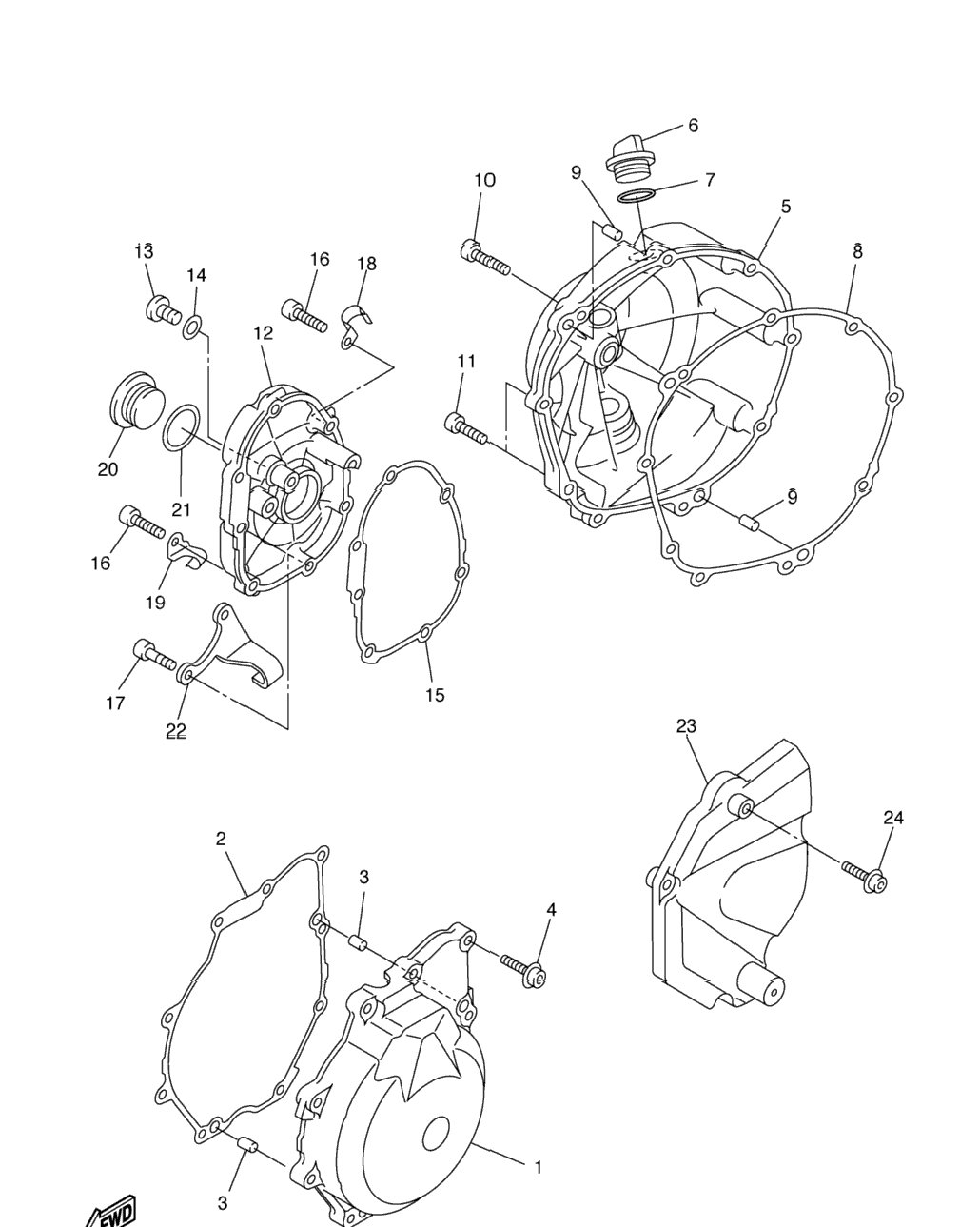

| 1 | 2C0-15411-01-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 2C0-15451-01-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 3 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 5 | 2C0-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 6 | 3F9-15362-10-00 | Plug, Oil Level | 1 шт. | — | |
|
| 7 | 93210-27194-00 | O-Ring | 1 шт. | — | |
|
| 8 | 2C0-15461-01-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 9 | 93608-17263-00 | Pin, Dowel | 2 шт. | — | |
|
| 10 | 90110-06323-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 11 | 90110-06324-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 2C0-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 13 | 92014-08014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 14 | 90430-08143-00 | Gasket | 1 шт. | — | |
|
| 15 | 2C0-15456-01-00 | Gasket, Oil Pump Cover 1 | 1 шт. | — | |
|
| 16 | 90110-06331-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 17 | 90110-06326-00 | Bolt, Hexagon Socket Head | 9 шт. | — | |
|
| 17 | 90110-06326-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 90465-08395-00 | Clamp | 1 шт. | — | |
|
| 19 | 2C0-21823-00-00 | Clamp, Hose | 1 шт. | — | |
|
| 20 | 90340-32004-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 21 | 93210-32172-00 | O-Ring | 1 шт. | — | |
|
| 22 | 2C0-15441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 23 | 2C0-15418-00-00 | Cover, Chain Case | 1 шт. | — | |
|
| 24 | 90110-06060-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
