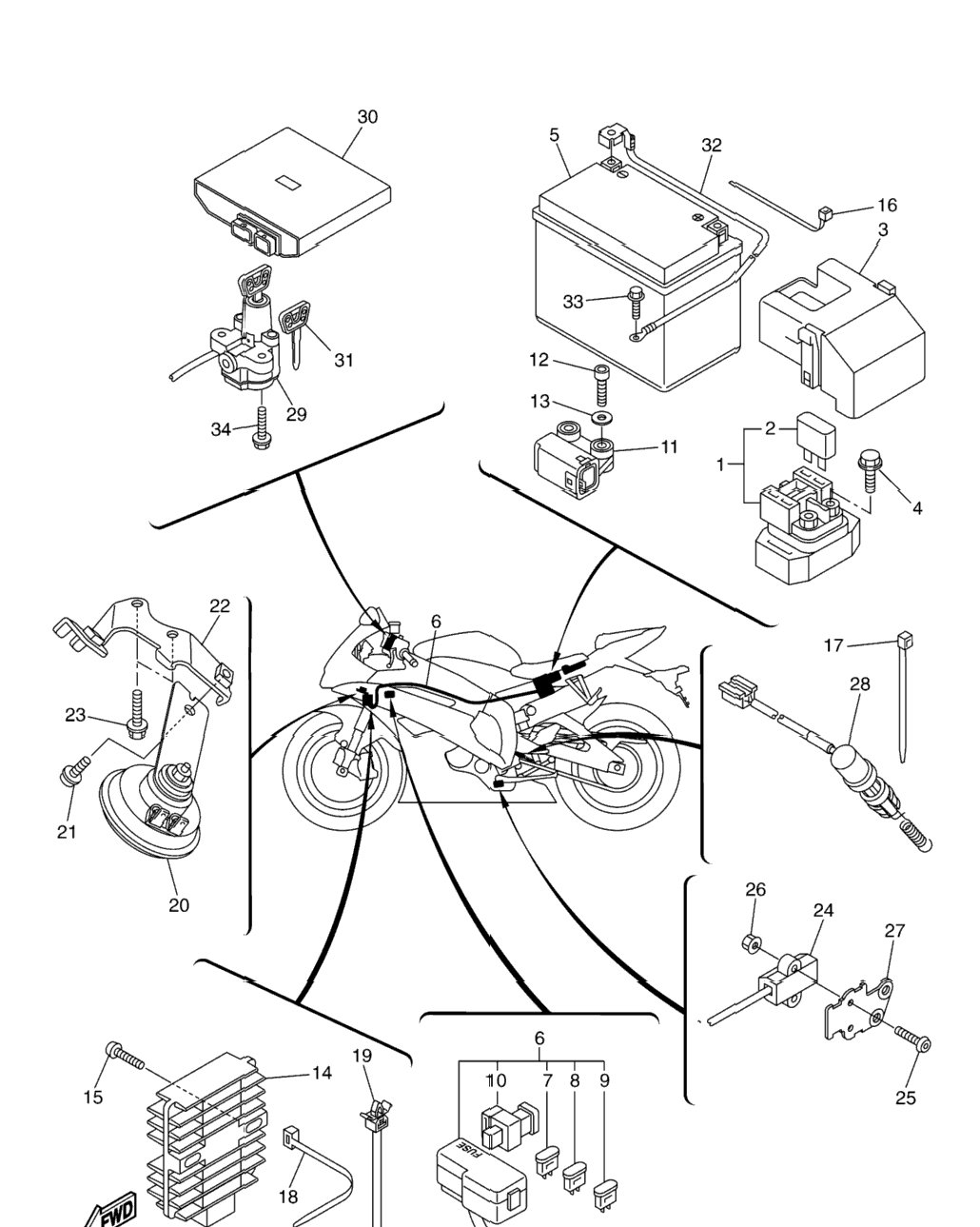

| 1 | 2C0-81940-00-00 | Starter Relay Assy (Rc19-054) | 1 шт. | — | |
|
| 2 | 36Y-82151-00-00 | . .Fuse (15A-Bl) | 2 шт. | — | |
|
| 3 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 4 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 5 | 5VY-82100-00-00 | Battery Assy (Yuasa Ytz10s) | 1 шт. | — | |
|
| 6 | 13S-82590-10-00 | Wire Harness Assy | 1 шт. | — | |
|
| 7 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 5 шт. | — | |
|
| 8 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 3 шт. | — | |
|
| 9 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 10 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 11 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 12 | 91317-04025-00 | Bolt | 2 шт. | — | |
|
| 13 | 90201-042E0-00 | Washer, Plate | 2 шт. | — | |
|
| 14 | 4XY-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 15 | 92012-06025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 16 | 90465-15011-00 | Clamp | 2 шт. | — | |
|
| 17 | 90464-32060-00 | Clamp | 2 шт. | — | |
|
| 18 | 90464-16061-00 | Clamp | 4 шт. | — | |
|
| 19 | 90464-12036-00 | Clamp | 2 шт. | — | |
|
| 20 | 4TH-83371-00-00 | Horn | 1 шт. | — | |
|
| 21 | 95812-06012-00 | Bolt, Flange | 0 шт. | — | |
|
| 22 | 13S-23377-00-00 | Bracket, Horn | 1 шт. | — | |
|
| 23 | 95822-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 13S-82566-70-00 | Switch, Side Stand | 1 шт. | — | |
|
| 25 | 92012-05025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 26 | 95602-05200-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 27 | 2C0-27961-00-00 | Bracket, Sensor 1 | 1 шт. | — | |
|
| 28 | 13S-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 29 | 2C0-82501-10-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 30 | 13S-8591A-H0-00 | Engine Control Unit Assy | 1 шт. | — | |
|
| 31 | 4BH-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 32 | 2C0-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 33 | 91380-06012-00 | .Bolt | 1 шт. | — | |
|
| 34 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
