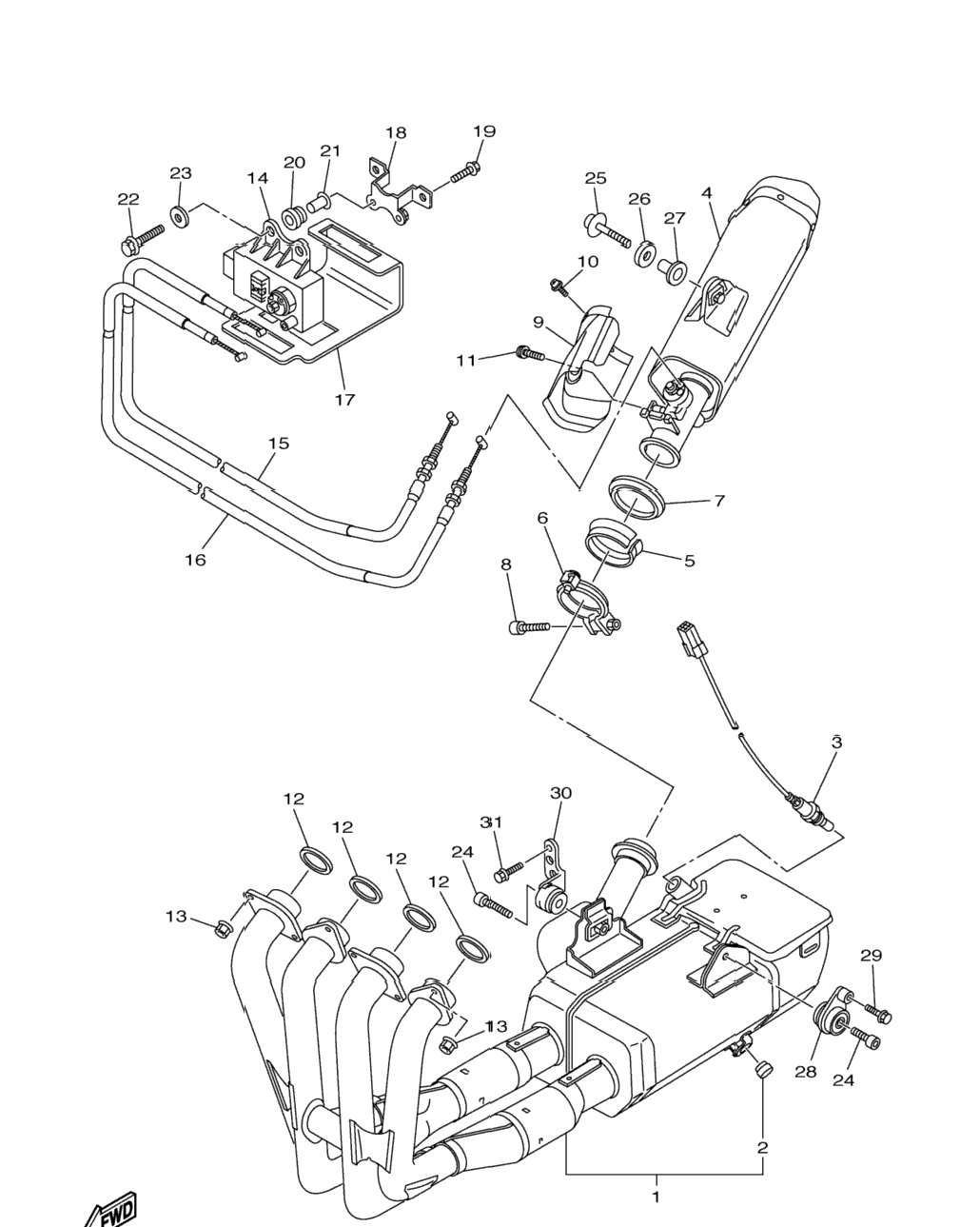

| 1 | 13S-14610-30-00 | Exhaust Pipe Assy 1 | 1 шт. | — | |
|
| 2 | 4FM-24181-00-00 | . .Damper, Locating 1 | 2 шт. | — | |
|
| 3 | 13S-8592A-00-00 | Sensor, Oxygen | 1 шт. | — | |
|
| 4 | 13S-14753-30-00 | Silencer, Exhaust | 1 шт. | — | |
|
| 5 | 2C0-14618-00-00 | Ring, Stopper | 1 шт. | — | |
|
| 6 | 2C0-14725-00-00 | Band, Muffler | 1 шт. | — | |
|
| 7 | 2C0-14623-00-00 | Gasket, Exhaust Pipe | 1 шт. | — | |
|
| 8 | 91314-06030-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 9 | 13S-14718-00-00 | Protector, Muffler 1 | 1 шт. | — | |
|
| 10 | 90111-06099-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 11 | 90111-06071-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 12 | 4FM-14613-00-00 | Gasket, Exhaust Pipe | 4 шт. | — | |
|
| 13 | 90179-08410-00 | Nut | 8 шт. | — | |
|
| 14 | 2C0-85820-00-00 | Servo Motor Assy | 1 шт. | — | |
|
| 15 | 13S-1133E-01-00 | Cable, Pulley 1 | 1 шт. | — | |
|
| 16 | 13S-1133F-01-00 | Cable, Pulley 2 | 1 шт. | — | |
|
| 17 | 2C0-2177F-00-00 | Cover | 1 шт. | — | |
|
| 18 | 2C0-2116J-00-00 | Bracket 7 | 1 шт. | — | |
|
| 19 | 95027-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 20 | 90480-14005-00 | Grommet | 2 шт. | — | |
|
| 21 | 90387-063E6-00 | Collar | 2 шт. | — | |
|
| 22 | 95827-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 23 | 90201-06M31-00 | Washer, Plate | 2 шт. | — | |
|
| 24 | 91314-08035-00 | .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 25 | 90110-08099-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 26 | 90201-087G2-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 90387-08021-00 | Collar | 1 шт. | — | |
|
| 28 | 13S-21446-00-00 | Stay, Muffler 2 | 1 шт. | — | |
|
| 29 | 90105-08054-00 | .Bolt, Flange | 1 шт. | — | |
|
| 30 | 13S-21445-00-00 | Stay, Muffler 1 | 1 шт. | — | |
|
| 31 | 90105-08171-00 | Bolt, Flange | 1 шт. | — | |
|
