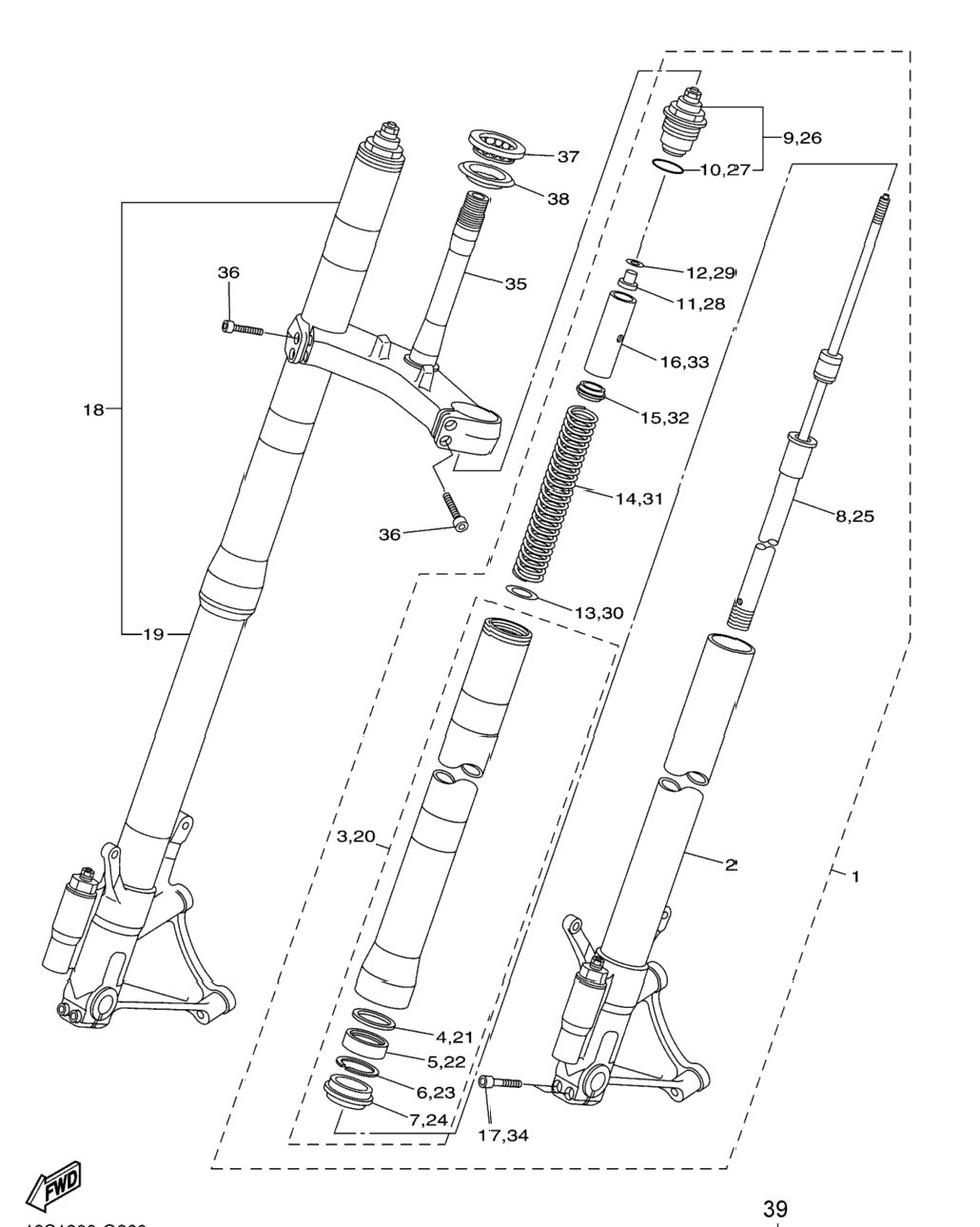

| 1 | 13S-23102-12-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 13S-23110-02-00 | . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 3 | 13S-23106-10-00 | . Outer Tube Comp | 1 шт. | — | |
|
| 4 | 3VD-23115-00-00 | . . .Guide, Cover Upper | 1 шт. | — | |
|
| 5 | 5VU-23145-00-00 | . . .Oil Seal INCL. IN FRONT FORK KIT | 1 шт. | — | |
|
| 6 | 3VD-23156-00-00 | . . .Ring, Snap | 1 шт. | — | |
|
| 7 | 3VD-23144-00-00 | . . .Seal, Dust INCL. IN FRONT FORK KIT | 1 шт. | — | |
|
| 8 | 13S-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 9 | 13S-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 10 | 93210-41N50-00 | . . ..O-Ring | 1 шт. | — | |
|
| 11 | 13S-23393-00-00 | . .Nut, Special | 1 шт. | — | |
|
| 12 | 13S-2332N-00-00 | . .Plate, Valve 2 | 1 шт. | — | |
|
| 13 | 2C0-23143-00-00 | . .Seat, Spring Lower | 1 шт. | — | |
|
| 14 | 13S-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 15 | 13S-23142-00-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 16 | 13S-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 17 | 91314-08040-00 | . Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 13S-23103-12-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 19 | 13S-23120-02-00 | . Inner Tube Comp. 2 | 1 шт. | — | |
|
| 20 | 13S-23106-10-00 | . Outer Tube Comp | 1 шт. | — | |
|
| 21 | 3VD-23115-00-00 | . . .Guide, Cover Upper | 1 шт. | — | |
|
| 22 | 5VU-23145-00-00 | . . .Oil Seal INCL. IN FRONT FORK KIT | 1 шт. | — | |
|
| 23 | 3VD-23156-00-00 | . . .Ring, Snap | 1 шт. | — | |
|
| 24 | 3VD-23144-00-00 | . . .Seal, Dust INCL. IN FRONT FORK KIT | 1 шт. | — | |
|
| 25 | 13S-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 26 | 13S-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 27 | 93210-41N50-00 | . . ..O-Ring | 1 шт. | — | |
|
| 28 | 13S-23393-00-00 | . .Nut, Special | 1 шт. | — | |
|
| 29 | 13S-2332N-00-00 | . .Plate, Valve 2 | 1 шт. | — | |
|
| 30 | 2C0-23143-00-00 | . .Seat, Spring Lower | 1 шт. | — | |
|
| 31 | 13S-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 32 | 13S-23142-00-00 | . .Seat, Spring Upper | 1 шт. | — | |
|
| 33 | 13S-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 34 | 91314-08040-00 | . Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 35 | 13S-23340-00-00 | Under Bracket Comp | 1 шт. | — | |
|
| 36 | 91314-08030-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 37 | 93399-99957-00 | Bearing | 1 шт. | — | |
|
| 38 | 3FV-23462-00-00 | .Seal, Steering | 1 шт. | — | |
|
| 39 | 5VU-W003B-00-00 | Fork Seal Kit | 1 шт. | — | |
|
