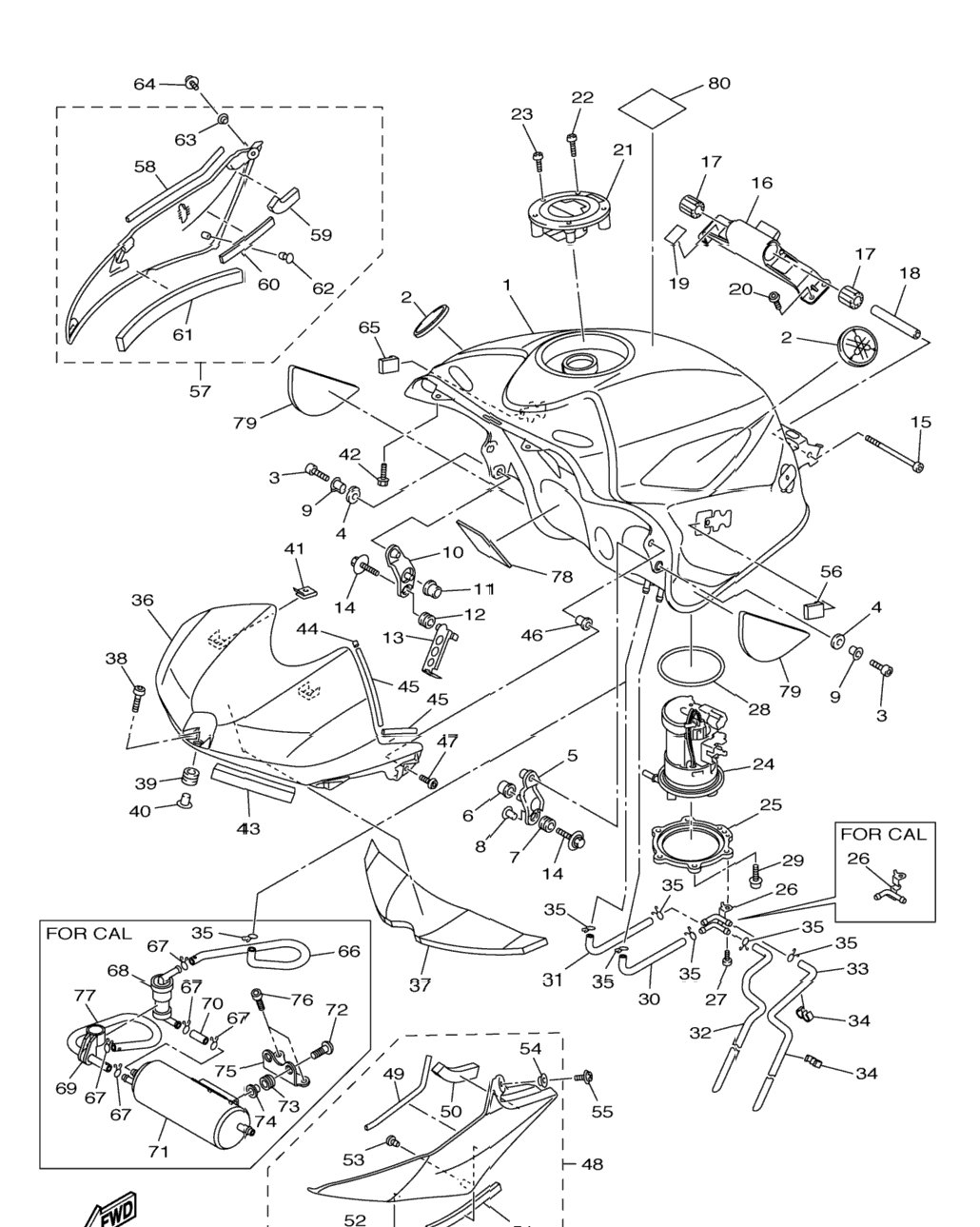

| 1 | 13S-YK241-00-P1 | Fuel Tank Comp BWC1 | 1 шт. | — | |
|
| 2 | 5SL-2413B-00-00 | Emblem | 2 шт. | — | |
|
| 3 | 91312-06016-00 | Bolt | 2 шт. | — | |
|
| 4 | 5VY-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 5 | 5VY-24191-10-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 6 | 5VY-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 7 | 90480-10542-00 | Grommet | 1 шт. | — | |
|
| 8 | 90387-066Y6-00 | Collar | 1 шт. | — | |
|
| 9 | 90387-06143-00 | Collar | 2 шт. | — | |
|
| 10 | 5VY-24192-10-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 11 | 5VY-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 12 | 90480-10542-00 | Grommet | 1 шт. | — | |
|
| 13 | 2C0-21339-00-00 | Guide, Wire | 1 шт. | — | |
|
| 14 | 90119-06262-00 | Bolt, With Washer | 2 шт. | — | |
|
| 15 | 91312-06090-00 | Bolt | 1 шт. | — | |
|
| 16 | 2C0-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 17 | 5SL-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 18 | 90387-06055-00 | Collar | 1 шт. | — | |
|
| 19 | 2C0-21566-00-00 | Tape, 1 | 2 шт. | — | |
|
| 20 | 90111-06071-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 21 | 39P-24602-00-00 | Cap Assy | 1 шт. | — | |
|
| 22 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 23 | 91312-05010-00 | Bolt | 1 шт. | — | |
|
| 24 | 14B-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 25 | 13S-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 26 | 13S-24135-00-00 | Clamp 1 | 1 шт. | — | |
|
| 27 | 13S-24135-10-00 | Clamp 1 FOR CALIFORNIA | 0 шт. | — | |
|
| 28 | 90154-05012-00 | Screw, Binding | 1 шт. | — | |
|
| 29 | 19B-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 30 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 31 | 13S-24315-00-00 | Pipe 5 | 1 шт. | — | |
|
| 32 | 13S-24316-00-00 | Pipe 6 | 1 шт. | — | |
|
| 33 | 13S-24317-00-00 | Pipe 7 | 1 шт. | — | |
|
| 34 | 13S-24317-10-00 | Pipe 7 FOR CALIFORNIA | 0 шт. | — | |
|
| 35 | 13S-24313-00-00 | Pipe 3 | 1 шт. | — | |
|
| 36 | 90464-09M31-00 | Clamp | 2 шт. | — | |
|
| 37 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 38 | 90467-09006-00 | Clip | 6 шт. | — | |
|
| 39 | 13S-2171A-00-P1 | Cover, Top BWC1 | 1 шт. | — | |
|
| 40 | 13S-24854-00-00 | Damper | 1 шт. | — | |
|
| 41 | 90111-06030-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 42 | 90480-12314-00 | Grommet | 1 шт. | — | |
|
| 43 | 90387-06222-00 | Collar | 1 шт. | — | |
|
| 44 | 90183-05074-00 | Nut, Spring | 2 шт. | — | |
|
| 45 | 90105-05014-00 | Bolt, Flange | 2 шт. | — | |
|
| 46 | 2C0-2414J-00-00 | .Damper, Plate 2 | 2 шт. | — | |
|
| 47 | 13S-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 48 | 2C0-2414N-00-00 | Damper, Plate 4 | 4 шт. | — | |
|
| 49 | 90179-05523-00 | Nut | 2 шт. | — | |
|
| 50 | 98902-05014-00 | Screw, Bind | 2 шт. | — | |
|
| 51 | 13S-24106-00-00 | Tank Side Cover Assy 1 | 1 шт. | — | |
|
| 52 | 4C8-2414H-00-00 | . .Damper, Plate 1 | 1 шт. | — | |
|
| 53 | 2C0-2414P-00-00 | . .Damper, Plate 5 | 1 шт. | — | |
|
| 54 | 4C8-2414J-00-00 | . .Damper, Plate 2 | 1 шт. | — | |
|
| 55 | 2C0-24184-00-00 | . .Damper, Locating 4 | 1 шт. | — | |
|
| 56 | 90338-06018-00 | . Plug | 1 шт. | — | |
|
| 57 | 90387-05035-00 | . Collar | 1 шт. | — | |
|
| 58 | 98902-05008-00 | Screw, Bind | 1 шт. | — | |
|
| 59 | 5PW-2411J-01-00 | Damper, Side Cover | 1 шт. | — | |
|
| 60 | 13S-24108-00-00 | Tank Side Cover Assy 2 | 1 шт. | — | |
|
| 61 | 4C8-2414H-00-00 | . .Damper, Plate 1 | 1 шт. | — | |
|
| 62 | 2C0-2414P-00-00 | . .Damper, Plate 5 | 1 шт. | — | |
|
| 63 | 4C8-2414J-00-00 | . .Damper, Plate 2 | 1 шт. | — | |
|
| 64 | 2C0-24184-00-00 | . .Damper, Locating 4 | 1 шт. | — | |
|
| 65 | 90338-06018-00 | . Plug | 1 шт. | — | |
|
| 66 | 90387-05035-00 | . Collar | 1 шт. | — | |
|
| 67 | 98902-05008-00 | Screw, Bind | 1 шт. | — | |
|
| 68 | 5PW-2411J-01-00 | Damper, Side Cover | 1 шт. | — | |
|
| 69 | 13S-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 70 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 71 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 72 | 2C0-24398-00-00 | Band 1 FOR CALIFORNIA | 0 шт. | — | |
|
| 73 | 90445-11065-00 | Hose (L30) FOR CALIFORNIA | 0 шт. | — | |
|
| 74 | 5EL-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 75 | 90111-06091-00 | Bolt,Hex. Socket Button FOR CALIFORNIA | 0 шт. | — | |
|
| 76 | 90480-13018-00 | Grommet FOR CALIFORNIA | 0 шт. | — | |
|
| 77 | 90387-062L2-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 78 | 2C0-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 шт. | — | |
|
| 79 | 90110-06175-00 | Bolt, Hexagon Socket Head FOR CALIFORNIA | 0 шт. | — | |
|
| 80 | 2C0-1443J-01-00 | Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 81 | 13S-24145-10-00 | Damper, Side Cover | 1 шт. | — | |
|
| 82 | 2C0-24145-10-00 | Damper, Side Cover | 2 шт. | — | |
|
| 83 | 4C8-2118K-00-00 | Label, Caution | 1 шт. | — | |
|
