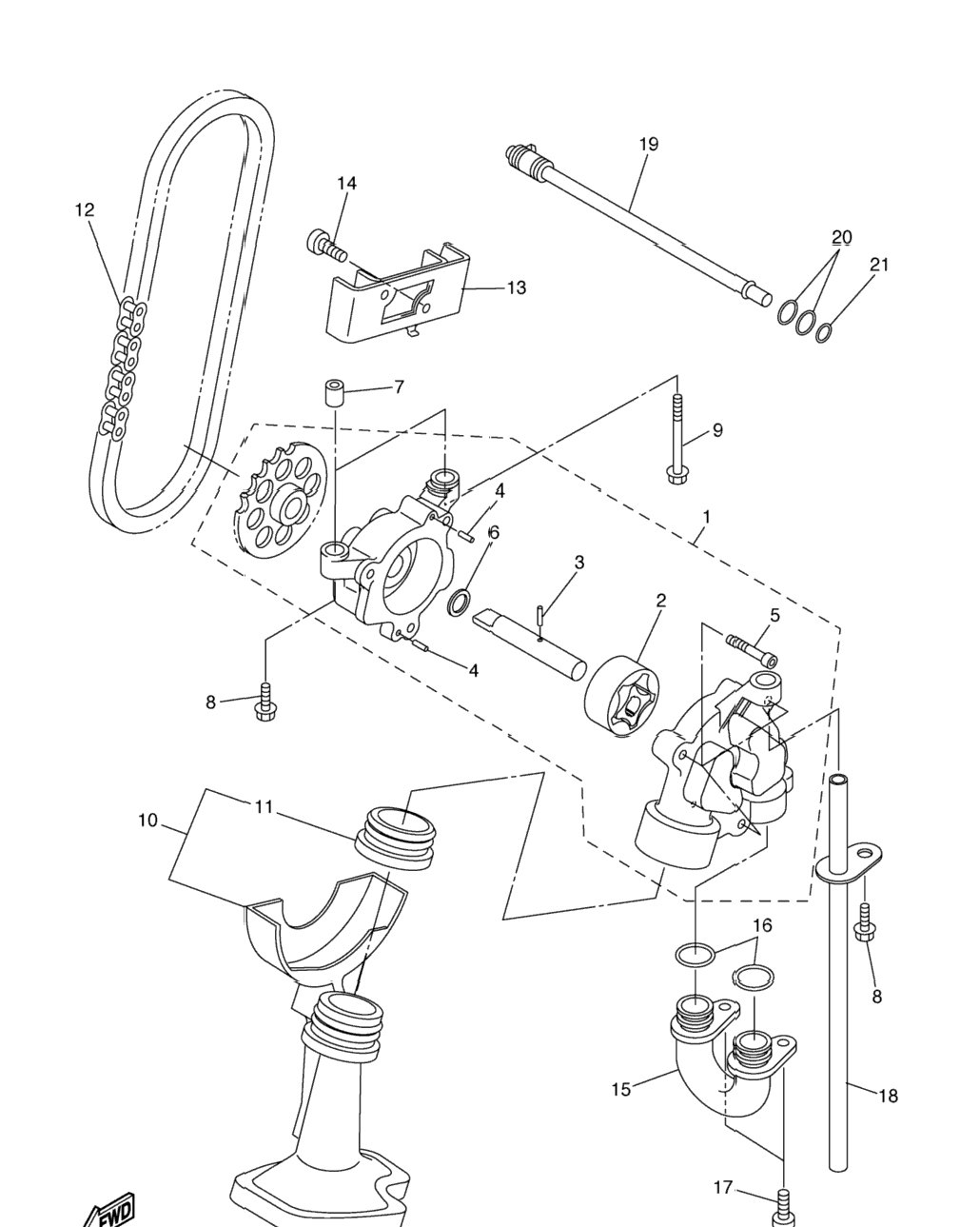

| 1 | 2C0-13300-00-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 4SV-13310-00-00 | . .Rotor Assy 1 | 1 шт. | — | |
|
| 3 | 93603-17070-00 | . Pin, Dowel | 1 шт. | — | |
|
| 4 | 93603-09106-00 | . Pin, Dowel | 2 шт. | — | |
|
| 5 | 91312-06025-00 | . Bolt | 3 шт. | — | |
|
| 6 | 90201-113K2-00 | . .Washer, Plate | 1 шт. | — | |
|
| 7 | 91808-17032-00 | Pin, Dowel | 2 шт. | — | |
|
| 8 | 95812-06030-00 | Bolt, Flange | 2 шт. | — | |
|
| 9 | 95812-06080-00 | Bolt, Flange | 1 шт. | — | |
|
| 10 | 2C0-13410-00-00 | Strainer Housing Assy | 1 шт. | — | |
|
| 11 | 2C0-13415-00-00 | . .Seal, Oil Strainer | 1 шт. | — | |
|
| 12 | 94580-25074-00 | Chain | 1 шт. | — | |
|
| 13 | 2C0-13898-00-00 | Holder | 0 шт. | — | |
|
| 15 | 2C0-13416-00-00 | Pipe, Oil 1 | 1 шт. | — | |
|
| 16 | 93210-14003-00 | O-Ring | 2 шт. | — | |
|
| 17 | 90110-06161-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 17 | 90110-06161-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 5EB-13161-00-00 | Pipe, Delivery 1 | 1 шт. | — | |
|
| 19 | 2C0-1316E-00-00 | Pipe, Delivery 5 | 1 шт. | — | |
|
| 20 | 93210-09165-00 | O-Ring | 2 шт. | — | |
|
| 21 | 93210-06667-00 | O-Ring | 1 шт. | — | |
|
