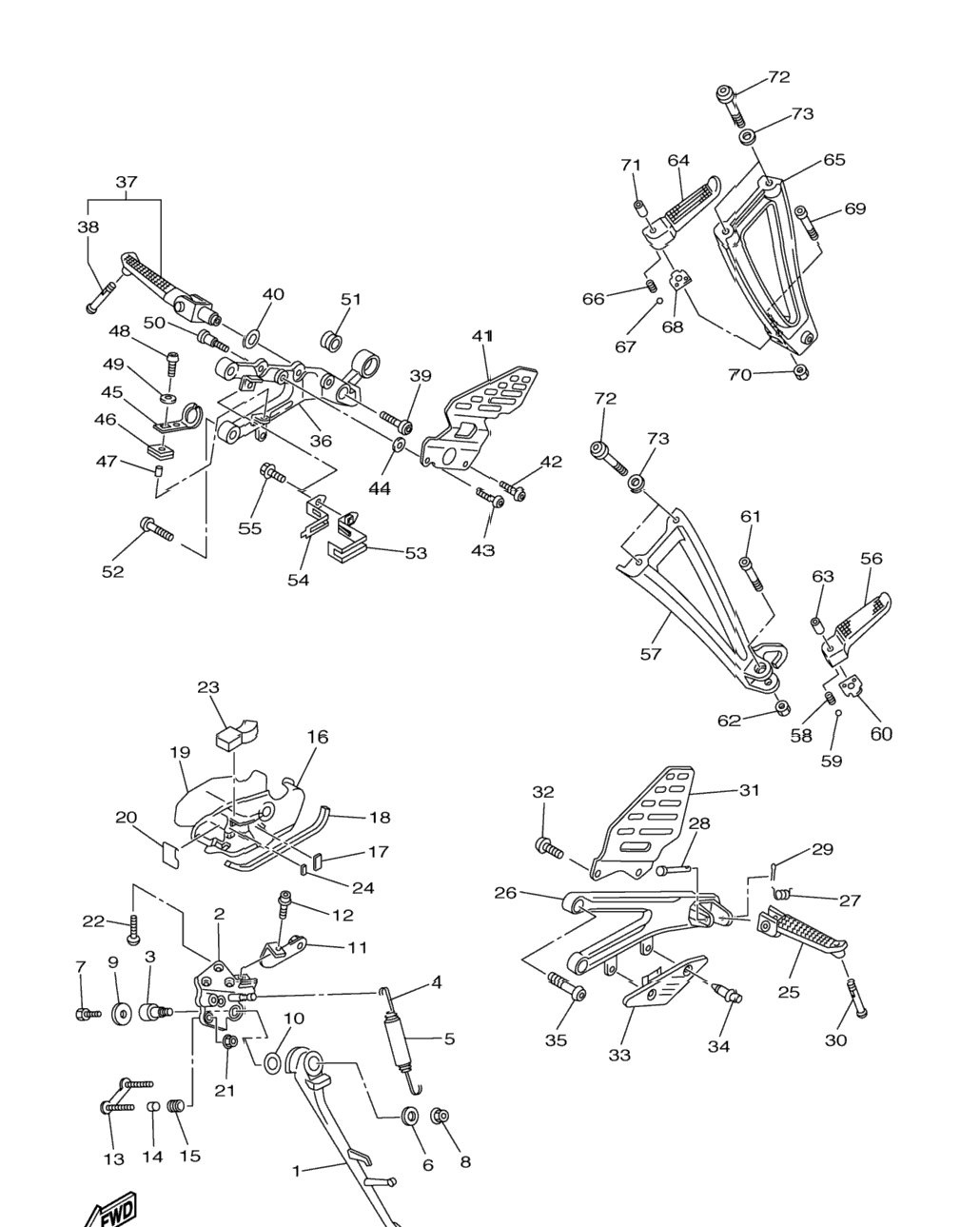

| 1 | 2C0-27311-10-00 | Stand, Side | 1 шт. | — | |
|
| 2 | 2C0-27321-10-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 3 | 2C0-27351-00-00 | Guide, Side Stand | 1 шт. | — | |
|
| 4 | 90506-18008-00 | Spring, Tension | 1 шт. | — | |
|
| 5 | 90445-19002-00 | Hose (L60) | 1 шт. | — | |
|
| 6 | 90201-10035-00 | Washer, Plate | 1 шт. | — | |
|
| 7 | 90101-08662-00 | Bolt | 1 шт. | — | |
|
| 8 | 95602-10200-00 | Nut, U Flange | 1 шт. | — | |
|
| 9 | 90201-08050-00 | Washer, Plate | 1 шт. | — | |
|
| 10 | 90201-146F9-00 | Washer, Plate | 1 шт. | — | |
|
| 11 | 13S-2836F-00-00 | Bracket 3 | 1 шт. | — | |
|
| 12 | 90105-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 2C0-27263-00-00 | Bracket 1 | 1 шт. | — | |
|
| 14 | 90387-05025-00 | Collar | 2 шт. | — | |
|
| 15 | 90480-11006-00 | Grommet | 2 шт. | — | |
|
| 16 | 2C0-27453-00-00 | Cover 1 | 1 шт. | — | |
|
| 17 | 2C0-27414-00-00 | Damper, Footrest | 1 шт. | — | |
|
| 18 | 2C0-27415-00-00 | Plate, Footrest | 1 шт. | — | |
|
| 19 | 2C0-28428-00-00 | Seal 1 | 1 шт. | — | |
|
| 20 | 2C0-28429-00-00 | Seal 2 | 1 шт. | — | |
|
| 21 | 90185-05009-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 22 | 90111-08065-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
| 23 | 2C0-28425-00-00 | Damper 3 | 1 шт. | — | |
|
| 24 | 2C0-21485-00-00 | Damper, Rubber 1 | 1 шт. | — | |
|
| 25 | 5SL-27451-00-00 | Footrest | 1 шт. | — | |
|
| 26 | 2C0-27442-10-00 | Bracket 2 | 1 шт. | — | |
|
| 27 | 90508-18134-00 | Spring, Torsion | 1 шт. | — | |
|
| 28 | 90240-08084-00 | Pin, Clevis | 1 шт. | — | |
|
| 29 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 30 | 90109-086F8-00 | .Bolt | 1 шт. | — | |
|
| 31 | 2C0-27445-10-00 | Plate 1 | 1 шт. | — | |
|
| 32 | 90149-06233-00 | Screw | 2 шт. | — | |
|
| 33 | 2C0-27491-00-00 | Protector | 1 шт. | — | |
|
| 34 | 90269-06008-00 | Rivet | 2 шт. | — | |
|
| 35 | 90109-085G6-00 | Bolt | 2 шт. | — | |
|
| 36 | 2C0-27443-10-00 | Bracket 3 | 1 шт. | — | |
|
| 37 | 2C0-27420-10-00 | Front Footrest Assy (Right) | 1 шт. | — | |
|
| 38 | 90109-086F8-00 | . .Bolt | 1 шт. | — | |
|
| 39 | 90109-103A9-00 | Bolt | 1 шт. | — | |
|
| 40 | 90214-13002-00 | Washer, Claw | 1 шт. | — | |
|
| 41 | 13S-27446-10-00 | Plate 2 | 1 шт. | — | |
|
| 42 | 90149-06233-00 | Screw | 1 шт. | — | |
|
| 43 | 90111-06067-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 44 | 90387-06215-00 | Collar | 1 шт. | — | |
|
| 45 | 13S-2144G-00-00 | Stay, Stop Switch | 1 шт. | — | |
|
| 46 | 90480-12607-00 | Grommet | 1 шт. | — | |
|
| 47 | 90387-06023-00 | Collar | 1 шт. | — | |
|
| 48 | 92017-06016-00 | Bolt, Button Head | 1 шт. | — | |
|
| 49 | 90201-06380-00 | Washer Plain | 1 шт. | — | |
|
| 50 | 90109-066F0-00 | Bolt | 2 шт. | — | |
|
| 51 | 2C0-14747-00-00 | .Damper, Muffler | 1 шт. | — | |
|
| 52 | 90109-085G6-00 | Bolt | 2 шт. | — | |
|
| 53 | 2C0-2116K-00-00 | Bracket 8 | 1 шт. | — | |
|
| 54 | 2C0-2116L-00-00 | Bracket 9 | 1 шт. | — | |
|
| 55 | 95024-06012-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 56 | 5JJ-27431-10-00 | Footrest, Rear 1 | 1 шт. | — | |
|
| 57 | 2C0-2741L-10-00 | Bracket 4 | 1 шт. | — | |
|
| 58 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 59 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 60 | 5JJ-27437-01-00 | Washer, Special | 1 шт. | — | |
|
| 61 | 91312-06035-00 | Bolt | 1 шт. | — | |
|
| 62 | 95602-06200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 63 | 90387-06697-00 | Collar | 1 шт. | — | |
|
| 64 | 5JJ-27441-10-00 | Footrest, Rear 2 | 1 шт. | — | |
|
| 65 | 2C0-2742L-10-00 | Bracket 5 | 1 шт. | — | |
|
| 66 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 67 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 68 | 5JJ-27437-01-00 | Washer, Special | 1 шт. | — | |
|
| 69 | 91312-06035-00 | Bolt | 1 шт. | — | |
|
| 70 | 95602-06200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 71 | 90387-06697-00 | Collar | 1 шт. | — | |
|
| 72 | 90111-08066-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 73 | 13S-27417-00-00 | Washer, Footrest | 4 шт. | — | |
|
