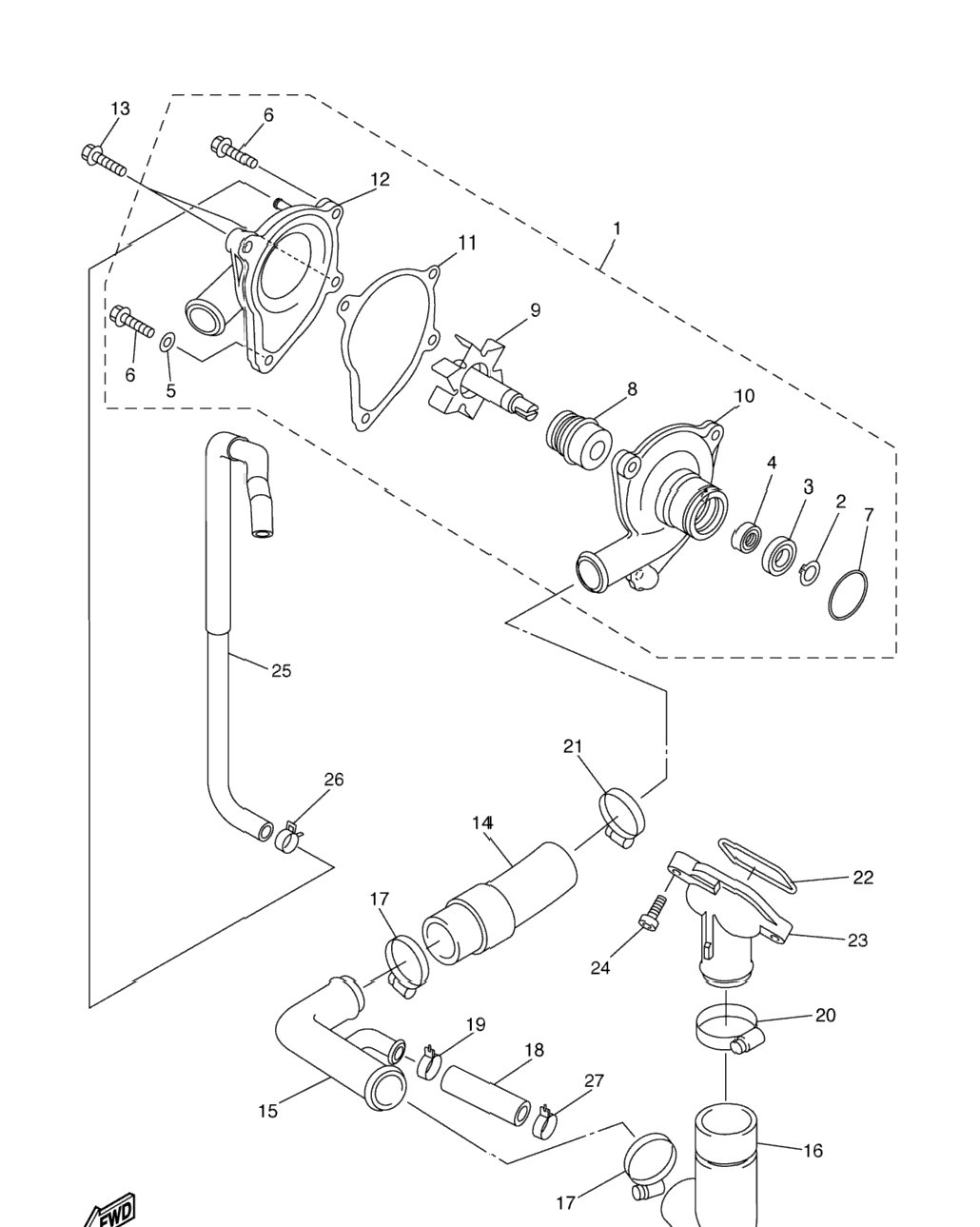

| 1 | 2C0-12420-00-00 | Water Pump Assy | 1 шт. | — | |
|
| 2 | 99009-10400-00 | . Circlip | 1 шт. | — | |
|
| 3 | 93306-00006-00 | . Bearing | 1 шт. | — | |
|
| 4 | 93101-10090-00 | . Oil Seal | 1 шт. | — | |
|
| 5 | 90430-06014-00 | . .Gasket | 1 шт. | — | |
|
| 6 | 95024-06025-00 | . Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 7 | 93210-33133-00 | . O-Ring | 1 шт. | — | |
|
| 8 | 2C0-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 9 | 2C0-12450-00-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 10 | 2C0-12421-00-00 | . .Housing, Water Pump | 1 шт. | — | |
|
| 11 | 2C0-12428-01-00 | . .Gasket, Housing Cover 2 | 1 шт. | — | |
|
| 12 | 2C0-W1242-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 13 | 90110-06140-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 14 | 2C0-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 15 | 2C0-12581-00-00 | Joint, Hose 1 | 1 шт. | — | |
|
| 16 | 2C0-12577-00-00 | Hose 2 | 1 шт. | — | |
|
| 17 | 90450-35001-00 | .Hose Clamp Assy | 2 шт. | — | |
|
| 18 | 2C0-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 19 | 90467-200A0-00 | Clip | 1 шт. | — | |
|
| 20 | 90450-38003-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 21 | 90450-32001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 22 | 93210-46001-00 | O-Ring | 1 шт. | — | |
|
| 23 | 5EB-12469-00-00 | Joint 1 | 1 шт. | — | |
|
| 24 | 90105-06082-00 | Bolt, Flange | 2 шт. | — | |
|
| 25 | 2C0-1243A-00-00 | Hose 1 | 1 шт. | — | |
|
| 26 | 90467-11090-00 | Clip | 2 шт. | — | |
|
| 27 | 90467-200A0-00 | Clip | 1 шт. | — | |
|
