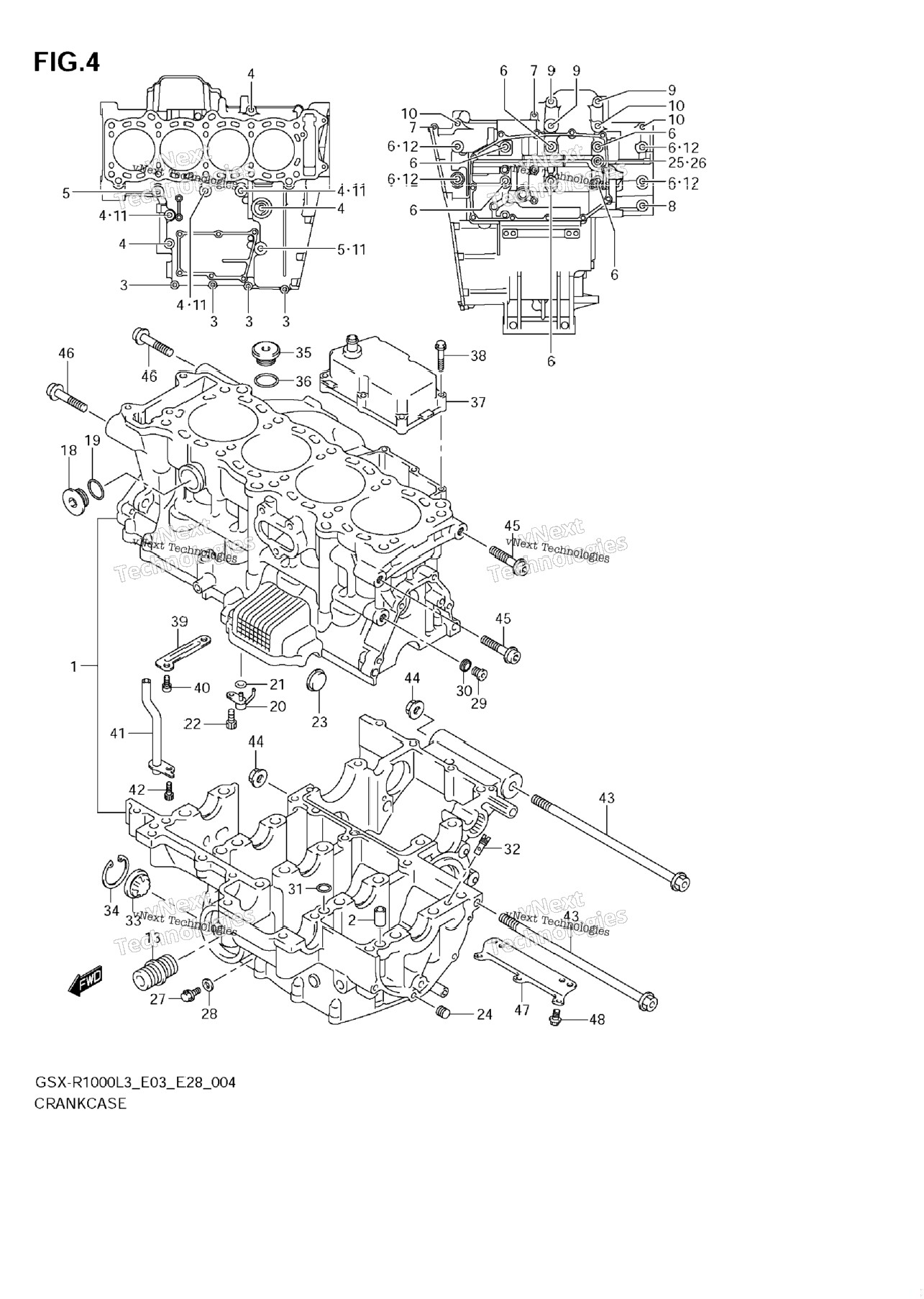

| 1 | 11300-47890 | CRANKCASE SET | 0 шт. | — | |
|
| 2 | 11319-33E50 | PIN | 3 шт. | — | |
|
| 3 | 01547-0635A | BOLT | 4 шт. | — | |
|
| 6 | 09103-09012 | BOLT (9X95) | 10 шт. | — | |
|
| 7 | 01547-0645A | BOLT | 2 шт. | — | |
|
| 8 | 01550-0835A | BOLT | 1 шт. | — | |
|
| 9 | 01550-0855A | BOLT | 3 шт. | — | |
|
| 9 | 01550-0855A | BOLT | 6 шт. | — | |
|
| 10 | 01550-0865A | BOLT | 2 шт. | — | |
|
| 10 | 01550-0865A | BOLT | 3 шт. | — | |
|
| 11 | 09168-08016 | GASKET (8.2X14X1) | 4 шт. | — | |
|
| 12 | 09168-10031 | GASKET (10.2X20X2.3) | 4 шт. | — | |
|
| 13 | 16591-06B01 | UNION, OIL FILTER STAND | 1 шт. | — | |
|
| 14 | 09280-00045 | O RING (D:3,ID:102) NOT ILLUSTRATED | 1 шт. | — | |
|
| 15 | 09139-06151 | BOLT (6X20) NOT ILLUSTRATED | 6 шт. | — | |
|
| 17 | 12228-48B00-0H0 | BEARING, THRUST LH (BLACK) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0F0 | BEARING, THRUST LH (BLUE) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0B0 | BEARING, THRUST LH (BROWN) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0E0 | BEARING, THRUST LH (GREEN) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0G0 | BEARING, THRUST LH (ORANGE) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0C0 | BEARING, THRUST LH (RED) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0D0 | BEARING, THRUST LH (YELLOW) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 17 | 12228-48B00-0E0 | BEARING, THRUST RH (GREEN) SEE ILLUST ON FIG.7 | 1 шт. | — | |
|
| 18 | 11318-35F00 | PLUG, WATER JACKET | 3 шт. | — | |
|
| 19 | 09280-20002 | O RING (D:3.1,ID:19.4) | 3 шт. | — | |
|
| 20 | 11390-21H00 | JET, PISTON COOLING | 4 шт. | — | |
|
| 21 | 09280-04004 | O RING (D:1.2,ID:4) | 4 шт. | — | |
|
| 23 | 09241-23005 | PLUG | 1 шт. | — | |
|
| 24 | 09246-05006 | PLUG | 1 шт. | — | |
|
| 25 | 09248-12004 | PLUG (L:12) | 1 шт. | — | |
|
| 26 | 09168-12002 | GASKET (12.1X16.2X3.7) | 1 шт. | — | |
|
| 27 | 01547-0612A | BOLT | 1 шт. | — | |
|
| 28 | 09168-06018 | .GASKET (6.2X13X1.2) | 1 шт. | — | |
|
| 29 | 09248-10010 | PLUG (10X10) | 1 шт. | — | |
|
| 30 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 31 | 09280-08012 | O RING (D:1.9,ID:7.8) | 2 шт. | — | |
|
| 32 | 09493-28012 | JET, 140 | 1 шт. | — | |
|
| 33 | 11971-33210 | .LENS,OIL LEVEL CHECK | 1 шт. | — | |
|
| 34 | 08331-4130A | CIRCLIP | 1 шт. | — | |
|
| 35 | 09259-26011 | PLUG (26X9) | 1 шт. | — | |
|
| 36 | 09280-22008 | O RING (D:3.1,ID:22.7) | 1 шт. | — | |
|
| 37 | 11380-47H00 | COVER, BREATHER | 1 шт. | — | |
|
| 38 | 01547-0630A | BOLT | 6 шт. | — | |
|
| 39 | 11382-47H00 | PLATE, BREATHER OIL RETURN | 1 шт. | — | |
|
| 40 | 09106-06075 | BOLT (6X12) | 4 шт. | — | |
|
| 40 | 09106-06075 | BOLT (6X12) | 2 шт. | — | |
|
| 41 | 11383-47H00 | PIPE, BREATHER OIL RETURN | 1 шт. | — | |
|
| 42 | 07130-0612A | BOLT | 1 шт. | — | |
|
| 43 | 09103-12110 | BOLT (12X220) | 2 шт. | — | |
|
| 44 | 09159-12054 | NUT | 2 шт. | — | |
|
| 45 | 09106-10089 | BOLT (10X45) | 2 шт. | — | |
|
| 46 | 09106-10090 | BOLT (10X55) | 2 шт. | — | |
|
| 47 | 11322-47H00 | PLATE, LOWER | 0 шт. | — | |
|
| 48 | 09103-06188 | BOLT (6X10) | 4 шт. | — | |
|
