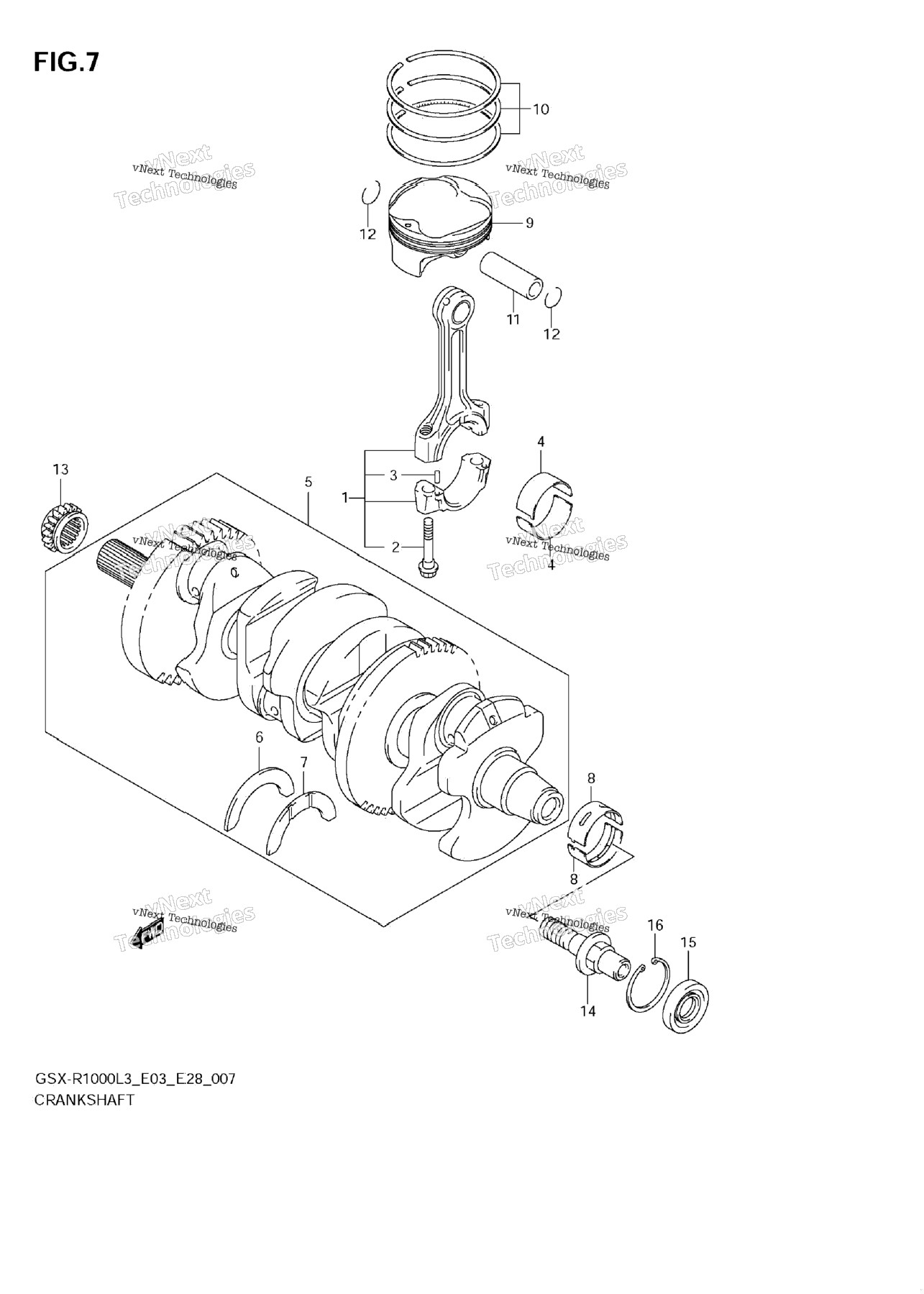

| 1 | 12160-47H00 | ROD ASSY, CONNECTING | 4 шт. | — | |
|
| 2 | 12163-24F10 | BOLT | 8 шт. | — | |
|
| 3 | 12165-27A50 | PIN, CONNROD | 8 шт. | — | |
|
| 4 | 12164-47H00-0B0 | BEARING, CRANK PIN (BLACK) | 8 шт. | — | |
|
| 4 | 12164-47H00-0C0 | BEARING, CRANK PIN (BROWN) | 8 шт. | — | |
|
| 4 | 12164-47H00-0A0 | BEARING, CRANK PIN (GREEN) | 8 шт. | — | |
|
| 4 | 12164-47H00-0D0 | BEARING, CRANK PIN (YELLOW) | 8 шт. | — | |
|
| 5 | 12000-47860 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7 | 12228-48B00-0H0 | BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 7 | 12228-48B00-0F0 | BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 7 | 12228-48B00-0B0 | BEARING, THRUST LH (BROWN) | 1 шт. | — | |
|
| 7 | 12228-48B00-0E0 | BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 7 | 12228-48B00-0G0 | BEARING, THRUST LH (ORANGE) | 1 шт. | — | |
|
| 7 | 12228-48B00-0C0 | BEARING, THRUST LH (RED) | 1 шт. | — | |
|
| 7 | 12228-48B00-0D0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 7 | 12228-48B00-0E0 | BEARING, THRUST RH (GREEN) | 1 шт. | — | |
|
| 8 | 12229-41G00-0B0 | BEARING, CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 8 | 12229-41G00-0E0 | BEARING, CRANKSHAFT (BLUE) | 10 шт. | — | |
|
| 8 | 12229-41G00-0C0 | BEARING, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 8 | 12229-41G00-0A0 | BEARING, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 8 | 12229-41G00-0D0 | BEARING, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 9 | 12111-47H50-0F0 | PISTON | 4 шт. | — | |
|
| 10 | 12140-47H10 | RING SET, PISTON | 4 шт. | — | |
|
| 11 | 12151-47H00 | PIN, PISTON | 4 шт. | — | |
|
| 12 | 09381-15001 | CIRCLIP | 8 шт. | — | |
|
| 13 | 12731-47H00 | SPROCKET, CAM CHAIN | 1 шт. | — | |
|
| 14 | 12224-47H00 | BOLT, GENERATOR ROTOR | 1 шт. | — | |
|
| 15 | 09282-14007 | OIL SEAL (14X30X8) LH | 1 шт. | — | |
|
| 16 | 08331-41329 | CIRCLIP | 1 шт. | — | |
|
