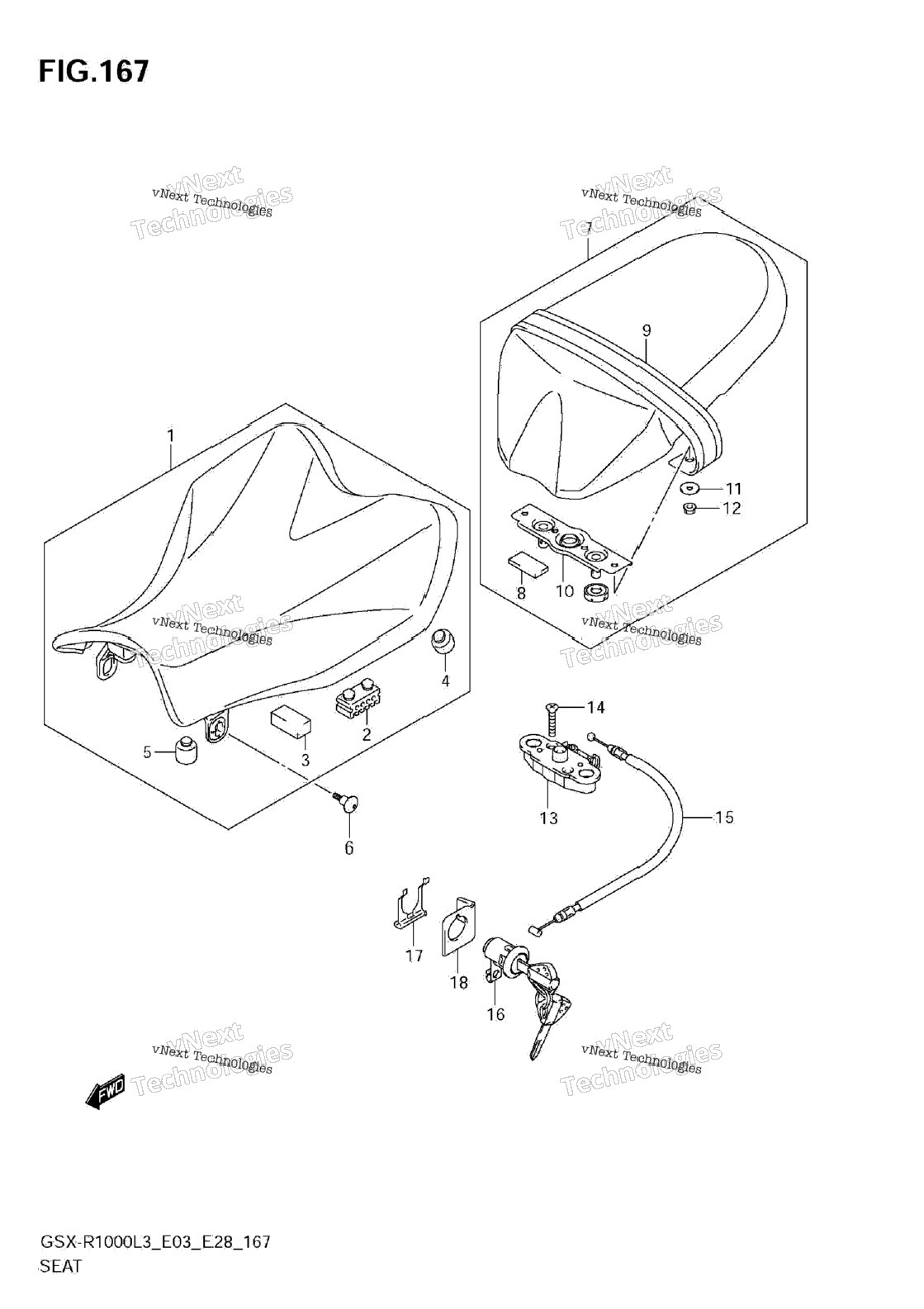

| 1 | 45100-47H10-DW2 | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45149-19D00 | CUSHION, SIDE | 2 шт. | — | |
|
| 3 | 45149-31E00 | CUSHION, FRONT (20X40X15) | 1 шт. | — | |
|
| 4 | 09321-10011 | CUSHION | 2 шт. | — | |
|
| 5 | 09321-10034 | CUSHION | 2 шт. | — | |
|
| 6 | 09139-06190 | SCREW (6X20) | 2 шт. | — | |
|
| 7 | 45300-47H10-P3H | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 8 | 45149-31E00 | CUSHION, FRONT (20X40X15) | 1 шт. | — | |
|
| 9 | 45180-47H00-P3H | BAND ASSY, SEAT (BLACK) | 1 шт. | — | |
|
| 10 | 45290-47H01 | STRIKER | 1 шт. | — | |
|
| 11 | 09160-06088 | WASHER (6.5X20X1.6) | 2 шт. | — | |
|
| 12 | 08316-1006A | NUT | 2 шт. | — | |
|
| 13 | 45220-47H00 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 14 | 02122-0630A | SCREW | 2 шт. | — | |
|
| 15 | 45280-47H00 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 16 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 17 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 18 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
