Under Cowling (Gsx-R1000zl3 E28)

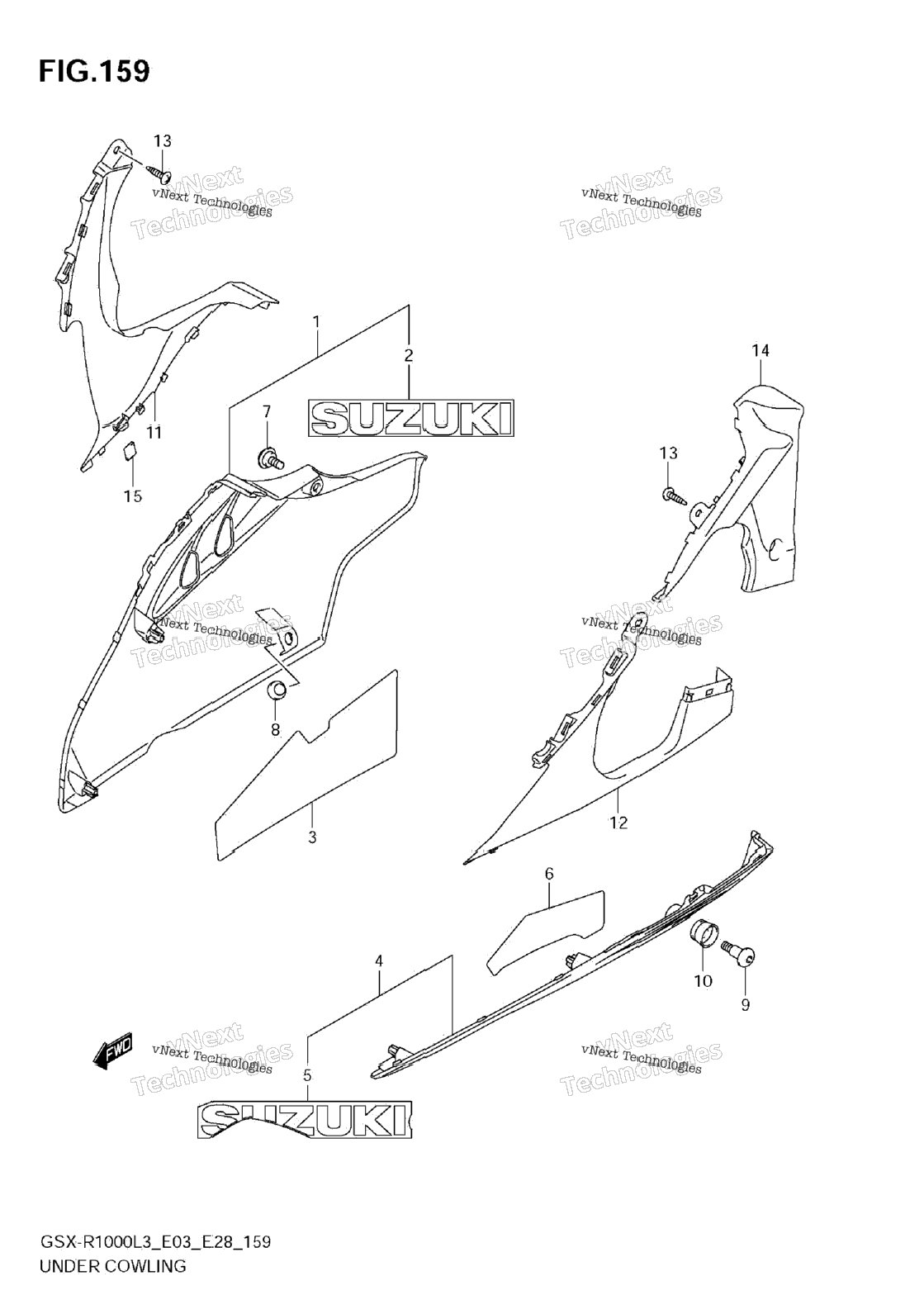

Схема Under Cowling (Gsx-R1000zl3 E28)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 94470-47H00-YWW | COWL, UNDER RH (WHITE) | 1 шт. | — | |
| 2 | 68181-33C20-019 | EMBLEM, "SUZUKI" (BLACK) | 1 шт. | — | |
| 3 | 94476-47H00 | SHIELD, HEAT FRONT RH | 1 шт. | — | |
| 4 | 94480-47H00-YWW | COWL, UNDER LH (WHITE) | 1 шт. | — | |
| 5 | 68191-47H00-019 | EMBLEM, "SUZUKI" (BLACK) | 1 шт. | — | |
| 6 | 94486-47H00 | SHIELD, HEAT LH | 1 шт. | — | |
| 7 | 09139-05064 | SCREW (5X13) | 1 шт. | — | |
| 8 | 09321-10018 | CUSHION | 2 шт. | — | |
| 9 | 09139-06190 | SCREW (6X20) | 2 шт. | — | |
| 10 | 94479-15H00 | CUSHION,UNDER COWLING,L | 2 шт. | — | |
| 11 | 94474-47H00 | COWL, SIDE LOWER RH | 1 шт. | — | |
| 12 | 94484-47H00 | COWL, SIDE LOWER LH | 1 шт. | — | |
| 13 | 03541-0516A | SCREW | 2 шт. | — | |
| 14 | 94482-47H00 | COVER, SIDE COWL LH | 1 шт. | — | |
| 15 | 63115-37H00 | CUSHION, SIDE COWL | 1 шт. | — | |
