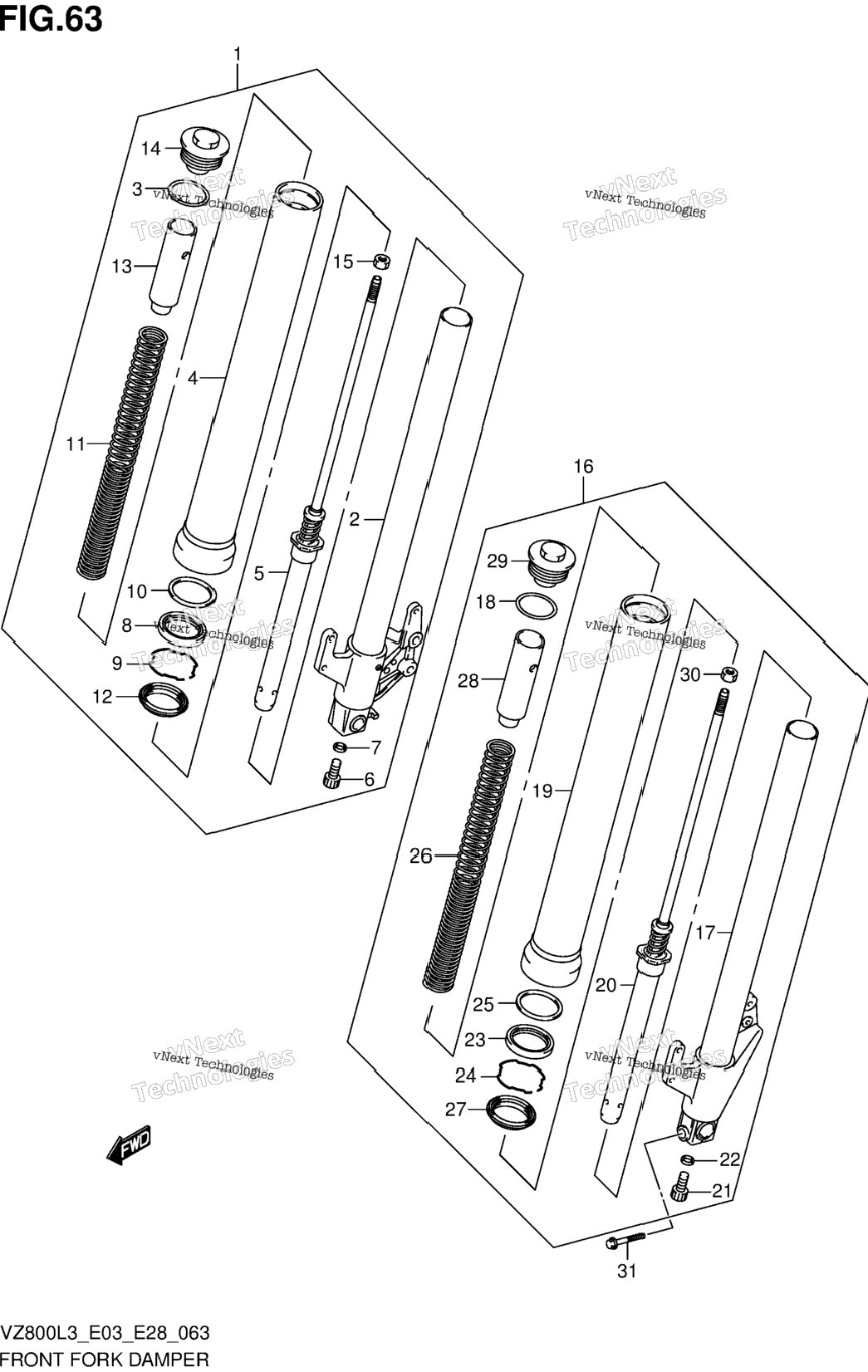

| 1 | 51103-39G20 | DAMPER ASSY, FRONT FORK RH | 0 шт. | — | |
|
| 2 | 51110-39G20 | TUBE, INNER RH | 1 шт. | — | |
|
| 16 | 51104-39G20 | DAMPER ASSY, FRONT FORK LH | 0 шт. | — | |
|
| 17 | 51120-39G20 | TUBE, INNER LH | 0 шт. | — | |
|
| 18 | 51117-39G20 | O RING | 1 шт. | — | |
|
| 18 | 51117-39G20 | O RING | 1 шт. | — | |
|
| 19 | 51130-39G20 | TUBE, OUTER | 1 шт. | — | |
|
| 19 | 51130-39G20 | TUBE, OUTER | 1 шт. | — | |
|
| 20 | 51146-39G20 | CYLINDER | 1 шт. | — | |
|
| 20 | 51146-39G20 | CYLINDER | 1 шт. | — | |
|
| 21 | 51147-05H00 | BOLT | 1 шт. | — | |
|
| 21 | 51147-05H00 | BOLT | 1 шт. | — | |
|
| 22 | 51148-41310 | GASKET | 1 шт. | — | |
|
| 22 | 51148-41310 | GASKET | 1 шт. | — | |
|
| 23 | 51153-10G50 | SEAL, OIL | 1 шт. | — | |
|
| 23 | 51153-10G50 | SEAL, OIL | 1 шт. | — | |
|
| 24 | 51156-49440 | RING, OIL SEAL STOPPER | 1 шт. | — | |
|
| 24 | 51156-49440 | RING, OIL SEAL STOPPER | 1 шт. | — | |
|
| 25 | 51158-05A00 | WASHER | 1 шт. | — | |
|
| 25 | 51158-05A00 | WASHER | 1 шт. | — | |
|
| 26 | 51171-39G20 | SPRING, FRONT | 1 шт. | — | |
|
| 26 | 51171-39G20 | SPRING, FRONT | 1 шт. | — | |
|
| 27 | 51173-14F00 | SEAL, DUST | 1 шт. | — | |
|
| 27 | 51173-14F00 | SEAL, DUST | 1 шт. | — | |
|
| 28 | 51176-21H00 | SPACER, SPRING | 1 шт. | — | |
|
| 28 | 51176-21H00 | SPACER, SPRING | 1 шт. | — | |
|
| 29 | 51351-39G20 | CAP | 0 шт. | — | |
|
| 29 | 51351-39G20 | CAP | 0 шт. | — | |
|
| 30 | 51352-13A60 | NUT, ROD | 1 шт. | — | |
|
| 30 | 51352-13A60 | NUT, ROD | 1 шт. | — | |
|
| 31 | 51166-10G10 | BOLT,AXLE STOPPER | 1 шт. | — | |
|
