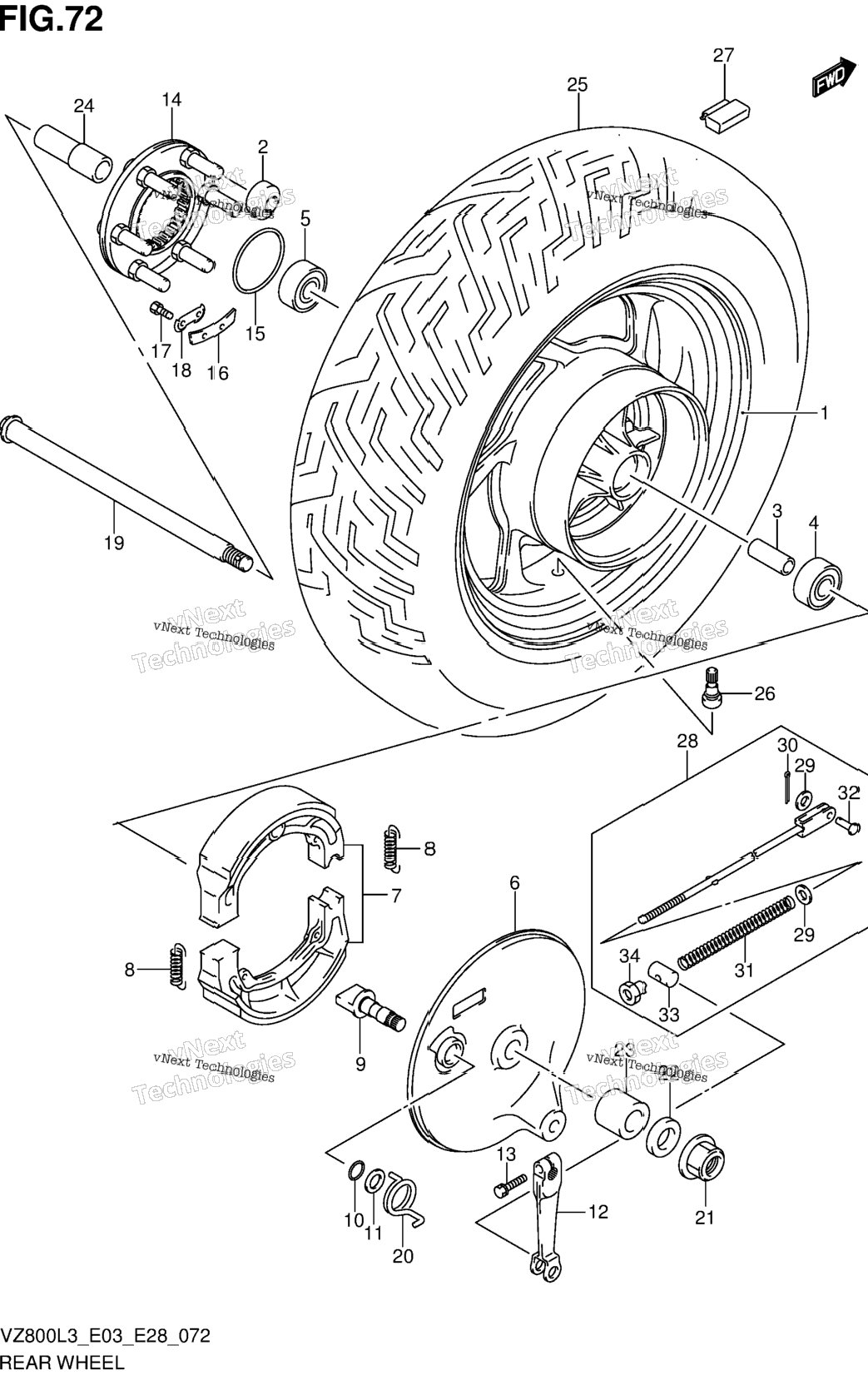

| 1 | 64150-39G00-20H | WHEEL, REAR (15M/CXMT4.00) (SILVER) | 0 шт. | — | |
|
| 2 | 09319-12019 | BUSH | 6 шт. | — | |
|
| 3 | 09180-17112 | SPACER (17.3X25X99) | 1 шт. | — | |
|
| 4 | 08123-63037 | BEARING RH | 1 шт. | — | |
|
| 5 | 08143-63037 | BEARING LH | 2 шт. | — | |
|
| 6 | 64210-38A70-20H | PANEL,REAR BRAKE ANCHOR (SILV | 1 шт. | — | |
|
| 7 | 64400-38820 | SHOE SET, BRAKE | 1 шт. | — | |
|
| 8 | 55420-30000 | SPRING, SHOE | 2 шт. | — | |
|
| 9 | 64441-38A20 | CAM, BRAKE | 1 шт. | — | |
|
| 10 | 09280-15003 | O RING (D:2.4,ID:14.8) | 1 шт. | — | |
|
| 11 | 09160-15048 | WASHER (15.5X24X1.6) | 1 шт. | — | |
|
| 12 | 64451-38A01 | LEVER, BRAKE CAM | 1 шт. | — | |
|
| 13 | 01570-06257 | BOLT | 1 шт. | — | |
|
| 14 | 64680-45113 | JOINT, HUB DRIVEN | 1 шт. | — | |
|
| 15 | 09280-65003 | O RING (D:2.1,ID:65) | 1 шт. | — | |
|
| 16 | 64677-45110 | WASHER, THRUST | 3 шт. | — | |
|
| 17 | 09119-06049 | BOLT (6X16) | 6 шт. | — | |
|
| 18 | 09169-06030 | WASHER | 3 шт. | — | |
|
| 19 | 64711-19F00 | AXLE, REAR | 1 шт. | — | |
|
| 20 | 09448-33006 | SPRING | 1 шт. | — | |
|
| 21 | 08319-2116A | NUT | 1 шт. | — | |
|
| 22 | 09160-17050 | WASHER (17X30X3.2) | 1 шт. | — | |
|
| 23 | 64741-41F00 | SPACER, RH | 1 шт. | — | |
|
| 24 | 64772-34201 | SPACER, LH | 1 шт. | — | |
|
| 25 | 65110-41F10 | TIRE, RR (170/80-15M/C 77H) | 1 шт. | — | |
|
| 26 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 27 | 43222-73H10 | BALANCER, WHEEL NO.1 | 1 шт. | — | |
|
| 28 | 43224-73H10 | BALANCER, WHEEL NO.2 | 1 шт. | — | |
|
| 29 | 43226-73H10 | BALANCER, WHEEL NO.3 | 1 шт. | — | |
|
| 30 | 43300-41F00 | ROD ASSY, REAR BRAKE | 1 шт. | — | |
|
| 31 | 08322-0106B | WASHER | 2 шт. | — | |
|
| 32 | 04111-2015A | COTTER PIN | 1 шт. | — | |
|
| 33 | 09440-09004 | SPRING | 1 шт. | — | |
|
| 34 | 09200-06013 | PIN (10X16) | 1 шт. | — | |
|
| 35 | 09209-13018 | PIN (13X18) | 1 шт. | — | |
|
| 36 | 09150-06010 | NUT | 1 шт. | — | |
|
