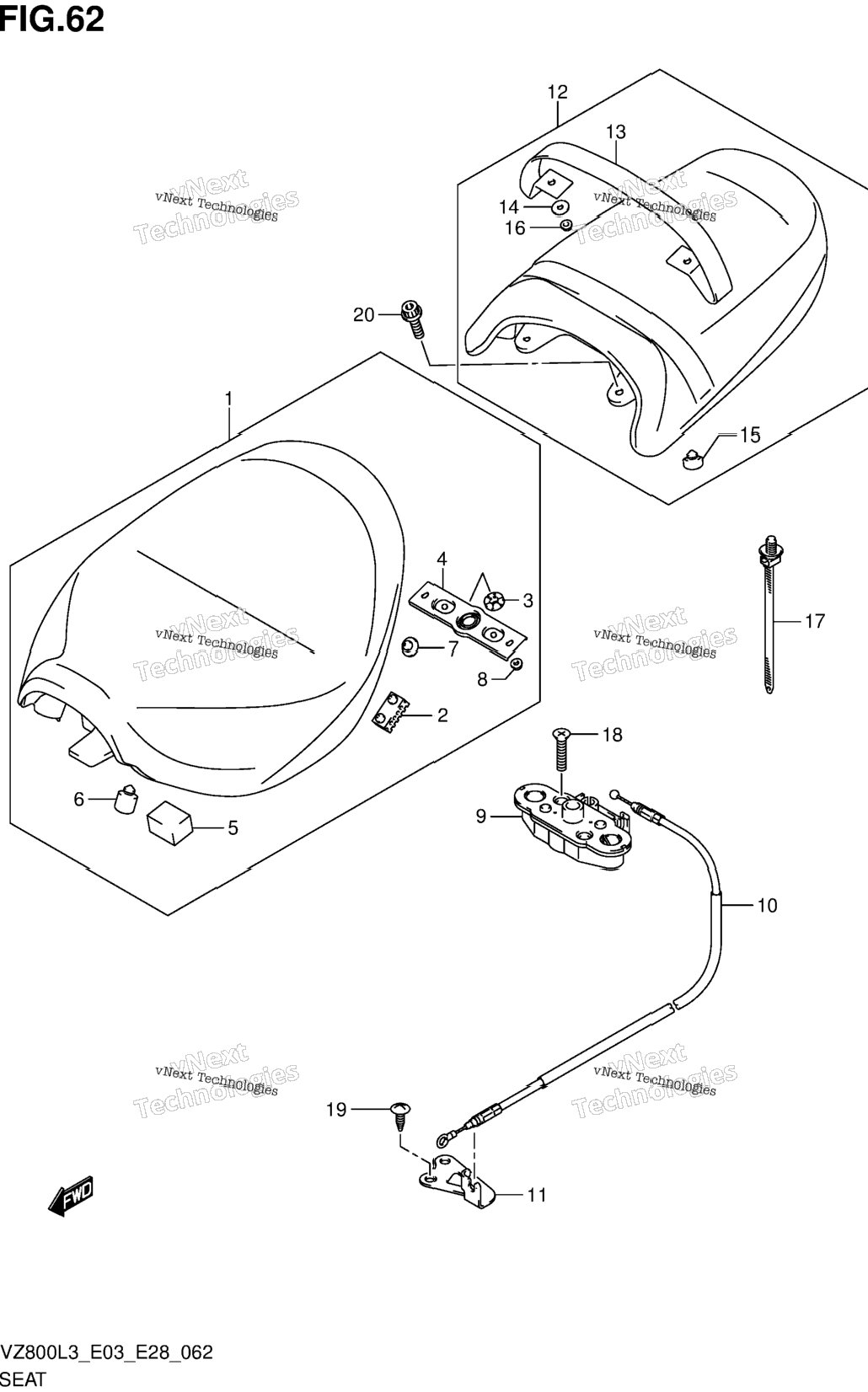

| 1 | 45100-39G30-48H | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45149-31300 | CUSHION, SEAT MOUNT | 4 шт. | — | |
|
| 3 | 45213-13601 | ..CUSHION,SEAT LOCK (10X22X6) | 2 шт. | — | |
|
| 4 | 45215-26F00 | STRIKER, SEAT LOCK | 1 шт. | — | |
|
| 5 | 45255-15500 | CUSHION, BATTERY | 0 шт. | — | |
|
| 6 | 09321-10034 | CUSHION | 2 шт. | — | |
|
| 7 | 09329-10001 | CUSHION | 1 шт. | — | |
|
| 8 | 08316-1006A | NUT | 2 шт. | — | |
|
| 9 | 45220-47H00 | BRACKET, SEAT SUPP | 1 шт. | — | |
|
| 10 | 45280-39G00 | CABLE, SEAT LOCK | 0 шт. | — | |
|
| 11 | 45288-39G00 | GUIDE, SEAT LOCK CABLE | 0 шт. | — | |
|
| 12 | 45300-39G30-48H | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 13 | 45380-39G30-48H | BAND, SEAT PILLION (BLACK) | 0 шт. | — | |
|
| 14 | 09160-06088 | WASHER (6.5X20X1.6) | 2 шт. | — | |
|
| 15 | 09321-10002 | CUSHION (11.5X22X20) | 4 шт. | — | |
|
| 16 | 08316-1006A | NUT | 2 шт. | — | |
|
| 17 | 09407-17403 | CLAMP (L:154) | 1 шт. | — | |
|
| 18 | 02122-0630A | SCREW | 2 шт. | — | |
|
| 19 | 03541-0516A | SCREW | 2 шт. | — | |
|
| 20 | 07120-0616A | BOLT | 2 шт. | — | |
|
