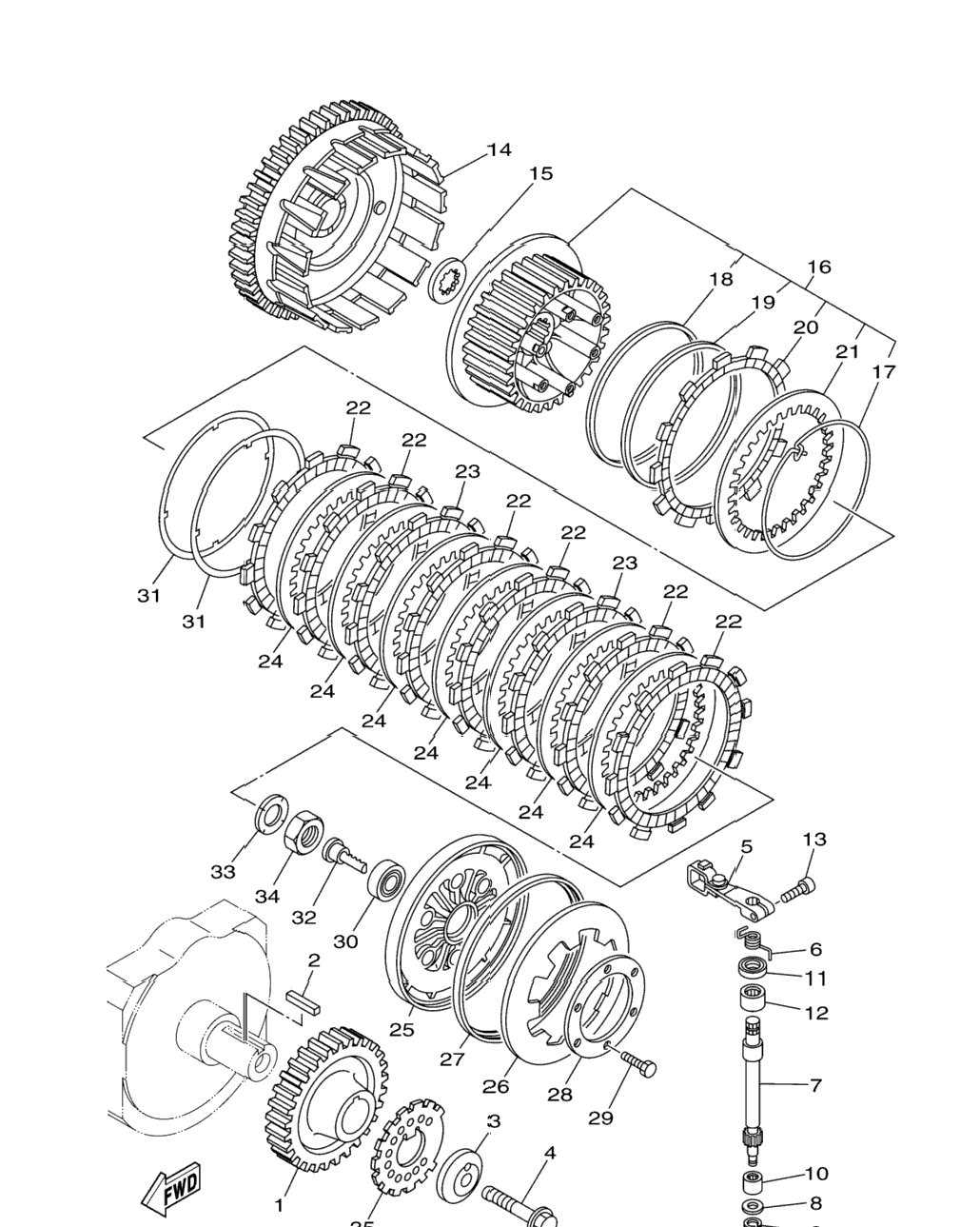

| 1 | 4WM-16111-00-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 2 | 4WM-16193-00-00 | Key, Feather | 1 шт. | — | |
|
| 3 | 4WM-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 4 | 90101-12011-00 | Bolt | 1 шт. | — | |
|
| 5 | 5PX-16340-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 6 | 90508-16007-00 | Spring, Torsion | 1 шт. | — | |
|
| 7 | 4WM-16382-00-00 | Axle, Push Lever | 1 шт. | — | |
|
| 8 | 92907-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 9 | 99001-07600-00 | Circlip | 1 шт. | — | |
|
| 10 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 11 | 93102-15212-00 | Oil Seal | 1 шт. | — | |
|
| 12 | 93315-31502-00 | Bearing | 1 шт. | — | |
|
| 13 | 91314-06020-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 14 | 4WM-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 15 | 5VN-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 16 | 5PX-16370-10-00 | Clutch Boss Assy | 1 шт. | — | |
|
| 17 | 26H-16385-00-00 | . Ring Set INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 18 | 26H-16384-00-00 | . .Plate, Seat | 1 шт. | — | |
|
| 19 | 1FK-16383-00-00 | . Spring, Cushion | 1 шт. | — | |
|
| 22 | 26H-16307-01-00 | Plate, Friction 3 INCL. IN CLUTCH PLATE KIT | 6 шт. | — | |
|
| 23 | 26H-16321-01-00 | . Plate, Friction INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 23 | 26H-16321-01-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 2 шт. | — | |
|
| 24 | 26H-16324-00-00 | . Plate, Clutch 1 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 24 | 26H-16324-00-00 | Plate, Clutch 1 INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 25 | 1FK-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 26 | 1FK-16334-10-00 | Spring, Clutch 2 | 1 шт. | — | |
|
| 26 | 1FK-16334-00-00 | Spring, Clutch 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 27 | 1FK-16335-00-00 | Housing, Spring | 1 шт. | — | |
|
| 28 | 5PX-16352-00-00 | Plate, Pressure 2 | 1 шт. | — | |
|
| 29 | 97007-06025-00 | Bolt | 6 шт. | — | |
|
| 30 | 93306-00304-00 | .Bearing | 1 шт. | — | |
|
| 31 | 5PX-16383-00-00 | Spring., Cushion | 2 шт. | — | |
|
| 32 | 4XV-16356-01-00 | Rod, Push 1 | 1 шт. | — | |
|
| 33 | 90208-20001-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 34 | 90179-20007-00 | Nut | 1 шт. | — | |
|
| 35 | 5YU-81673-00-00 | Rotor | 1 шт. | — | |
|
| 36 | 5VR-W001G-10-00 | Clutch Plate Kit NOT SHOWN | 1 шт. | — | |
|
