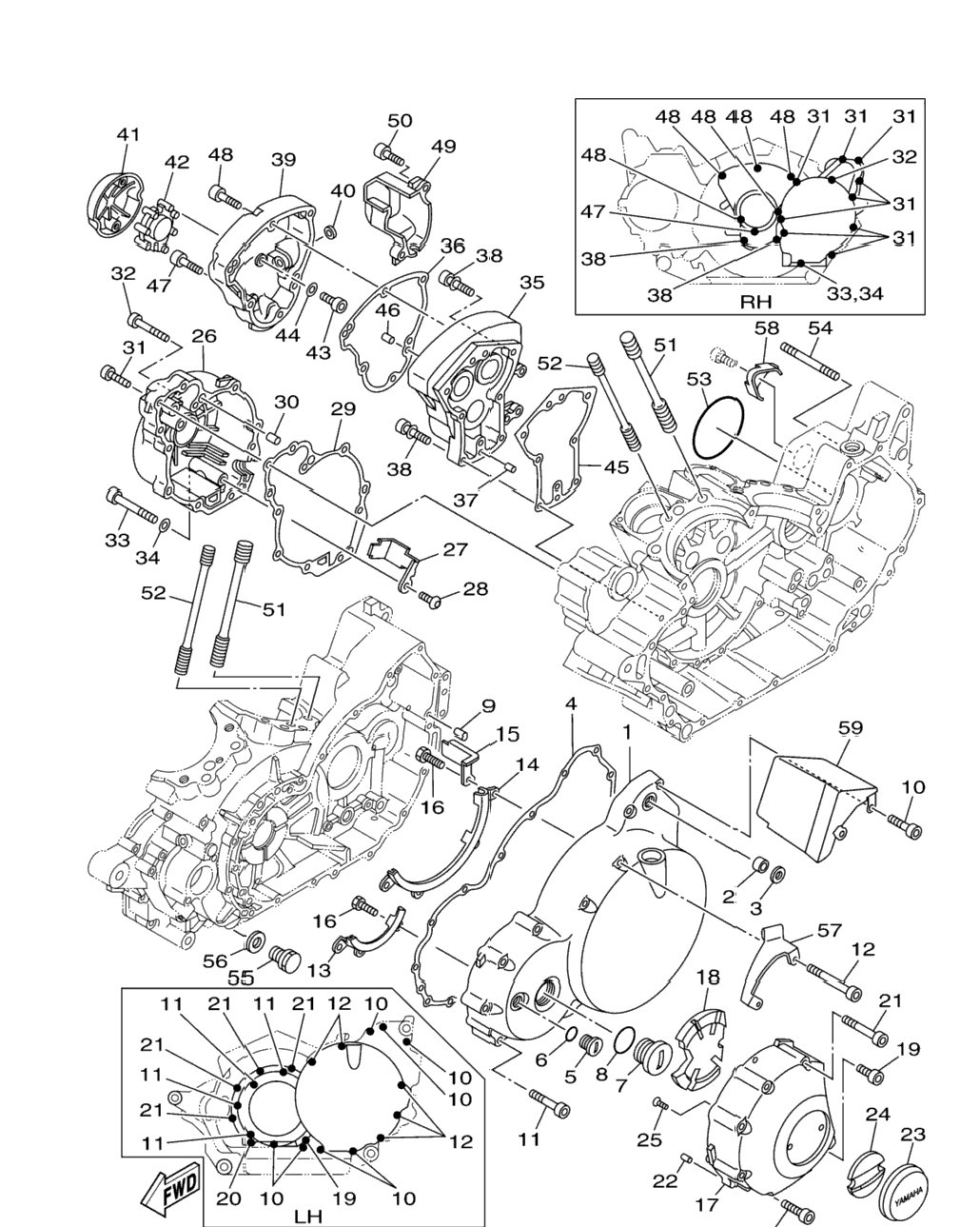

| 1 | 4WM-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 93317-11287-00 | Bearing | 1 шт. | — | |
|
| 3 | 93102-12224-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 5VN-15451-00-00 | Gasket, Crankcase Cover 1 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 5 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 6 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 7 | 90340-32080-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 8 | 93210-32172-00 | O-Ring | 1 шт. | — | |
|
| 11 | 91314-06045-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 12 | 91314-06070-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 13 | 4WM-15142-00-00 | Guide 1 | 0 шт. | — | |
|
| 14 | 4WM-15143-00-00 | Guide | 1 шт. | — | |
|
| 15 | 5YU-15484-00-00 | Clamp 2 | 1 шт. | — | |
|
| 17 | 5PX-15423-00-00 | Cover 2 | 1 шт. | — | |
|
| 18 | 4WM-15326-00-00 | Damper 2 | 1 шт. | — | |
|
| 20 | 91314-06035-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 20 | 91314-06035-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 21 | 91314-06060-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 22 | 91808-16023-00 | Pin, Dowel | 2 шт. | — | |
|
| 23 | 4WM-15425-00-00 | Cover, Generator 2 | 1 шт. | — | |
|
| 24 | 4WM-15316-00-00 | Damper 1 | 1 шт. | — | |
|
| 25 | 90151-05001-00 | Screw, Countersunk | 2 шт. | — | |
|
| 26 | 5PX-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 27 | 5VN-15377-00-00 | Guide, Inlet | 1 шт. | — | |
|
| 28 | 90149-06004-00 | Screw | 1 шт. | — | |
|
| 28 | 90149-06004-00 | Screw | 7 шт. | — | |
|
| 29 | 5PX-15461-02-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 30 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 30 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 32 | 91314-06050-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 33 | 91314-06065-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 35 | 5PX-15431-10-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 36 | 5YU-15462-01-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 38 | 90110-06300-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 39 | 4WM-12278-01-00 | Cover, Decomp | 1 шт. | — | |
|
| 40 | 93104-08089-00 | Oil Seal | 1 шт. | — | |
|
| 41 | 4WM-15427-00-00 | Cover, Cap 2 | 1 шт. | — | |
|
| 42 | 4WM-15335-00-00 | Damper 3 | 1 шт. | — | |
|
| 43 | 90110-06004-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 44 | 90430-06014-00 | Gasket | 2 шт. | — | |
|
| 44 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 45 | 5PX-12286-00-00 | Gasket, Decompression | 1 шт. | — | |
|
| 46 | 93606-10227-00 | Pin, Dowel | 2 шт. | — | |
|
| 46 | 93606-10227-00 | Pin, Dowel | 2 шт. | — | |
|
| 48 | 91314-06030-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 48 | 91314-06030-00 | Bolt, Hexagon Socket Head | 9 шт. | — | |
|
| 49 | 5MB-12275-10-00 | Cover, Decomp Lever | 1 шт. | — | |
|
| 50 | 91314-06025-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 50 | 91314-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 50 | 91314-06025-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 51 | 90116-12240-00 | Bolt, Stud | 8 шт. | — | |
|
| 52 | 90116-10344-00 | Bolt, Stud | 4 шт. | — | |
|
| 53 | 93210-750A1-00 | O-Ring | 1 шт. | — | |
|
| 54 | 90116-08065-00 | Bolt, Stud | 1 шт. | — | |
|
| 55 | 90340-14132-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 56 | 214-11198-01-00 | Gasket | 1 шт. | — | |
|
| 57 | 4WM-15441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 58 | 5PX-15413-00-00 | Cover | 1 шт. | — | |
|
| 59 | 5VN-15470-00-00 | Air Duct Assy | 1 шт. | — | |
|
