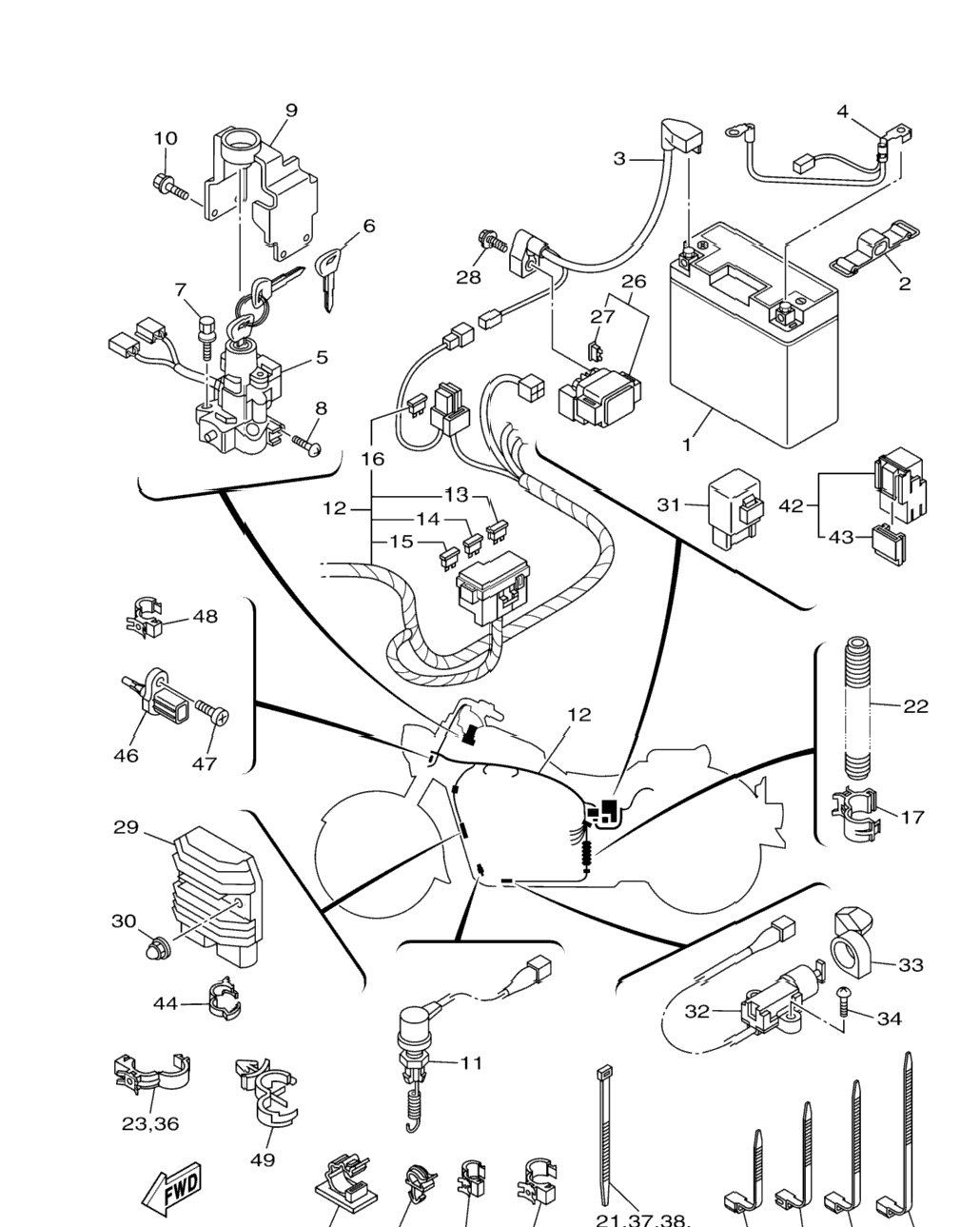

| 1 | 5EA-82100-11-00 | Battery Assy (Gs Gt14b-4) | 1 шт. | — | |
|
| 2 | 26L-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 3 | 5VN-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 4 | 5VN-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 5 | 5VN-82501-20-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 6 | 5PX-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 7 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 8 | 98507-05010-00 | Screw, Pan Head | 1 шт. | — | |
|
| 9 | 4WM-82568-00-00 | Cover, Main Switch | 1 шт. | — | |
|
| 10 | 90105-06010-00 | Bolt, Flange | 4 шт. | — | |
|
| 11 | 5VN-82530-10-00 | Stop Switch Assy | 1 шт. | — | |
|
| 12 | 5VN-82590-40-00 | Wire Harness Assy FOR U49 | 1 шт. | — | |
|
| 13 | 5VN-82590-50-00 | Wire Harness Assy FOR CAL | 0 шт. | — | |
|
| 14 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 3 шт. | — | |
|
| 15 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 3 шт. | — | |
|
| 16 | 5JJ-82151-50-00 | . .Fuse (3A-Bl) | 3 шт. | — | |
|
| 17 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 18 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 19 | 90464-08263-00 | Clamp | 2 шт. | — | |
|
| 20 | 90464-15195-00 | Clamp | 2 шт. | — | |
|
| 21 | 90464-15192-00 | Clamp | 1 шт. | — | |
|
| 22 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 23 | 4WM-82139-00-00 | Tube | 1 шт. | — | |
|
| 24 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 25 | 90464-12045-00 | Clamp | 1 шт. | — | |
|
| 26 | 90460-15126-00 | Clamp, Hose | 1 шт. | — | |
|
| 27 | 5VN-81940-00-00 | Starter Relay Assy (Rc19-078A) | 1 шт. | — | |
|
| 28 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 шт. | — | |
|
| 29 | 95027-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 30 | 1D7-81960-01-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 31 | 90176-06055-00 | Nut, Crown | 2 шт. | — | |
|
| 32 | 5VK-81950-30-00 | Relay Assy (5Vk-30) | 0 шт. | — | |
|
| 33 | 3D8-82566-70-00 | Switch, Side Stand | 1 шт. | — | |
|
| 34 | 4WM-8252U-00-00 | Cover | 1 шт. | — | |
|
| 35 | 90157-05008-00 | Screw, Pan Head | 2 шт. | — | |
|
| 36 | 90464-10190-00 | Clamp | 1 шт. | — | |
|
| 37 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 38 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 39 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 40 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 41 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 42 | 90464-25004-00 | Clamp | 1 шт. | — | |
|
| 43 | 5EA-81950-20-00 | Relay Assy (5Ea-02) | 1 шт. | — | |
|
| 44 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 45 | 90464-16003-00 | Clamp | 1 шт. | — | |
|
| 46 | 90464-15192-00 | Clamp | 1 шт. | — | |
|
| 47 | 5YU-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 48 | 98507-05012-00 | .Screw, Pan Head | 1 шт. | — | |
|
| 49 | 90464-08189-00 | Clamp | 1 шт. | — | |
|
| 50 | 90464-07209-00 | Clamp | 1 шт. | — | |
|
| 51 | 90464-20014-00 | Clamp | 1 шт. | — | |
|
| 52 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
