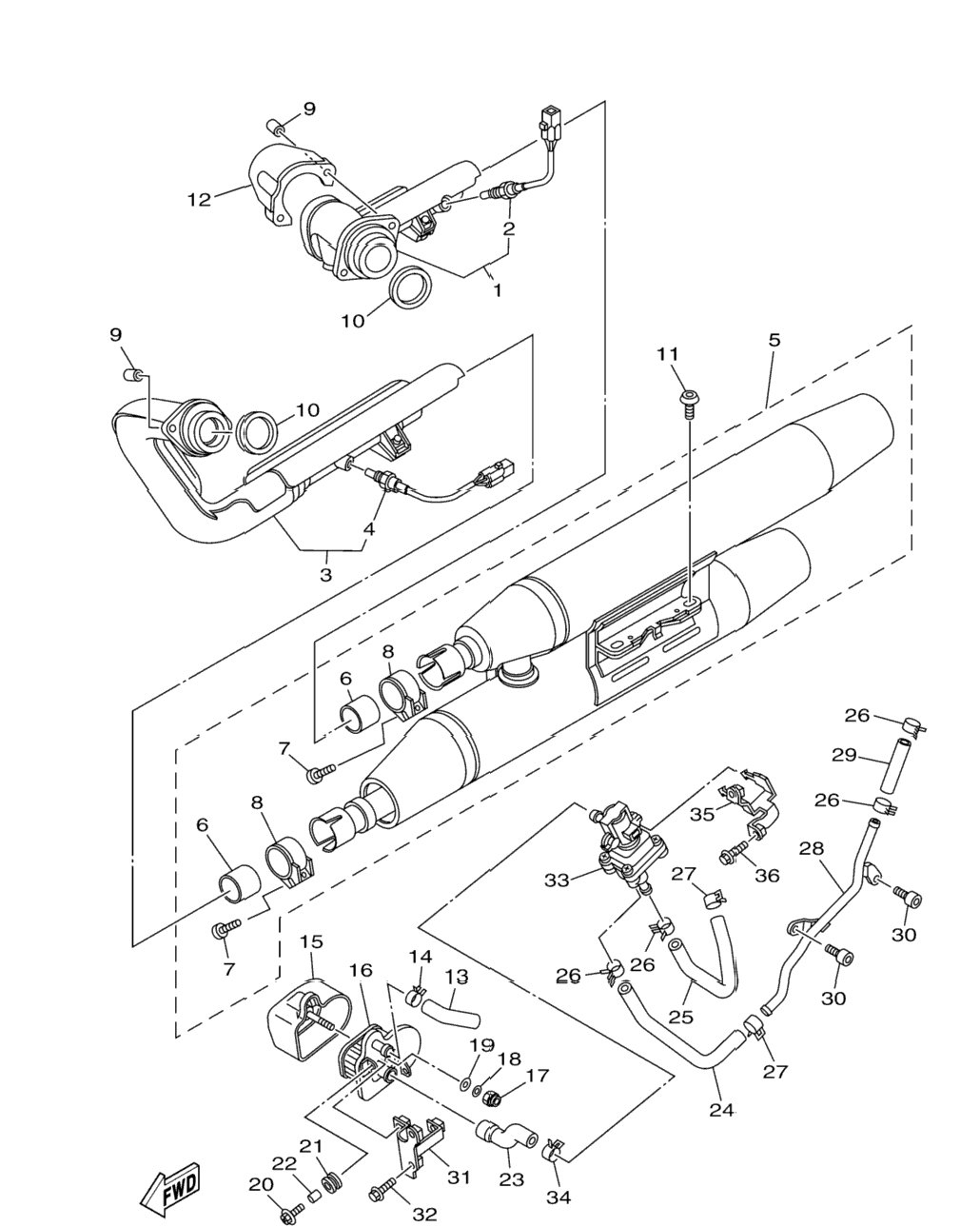

| 1 | 2D9-14610-00-00 | Exhaust Pipe Assy 1 | 1 шт. | — | |
|
| 2 | 5VN-8592A-00-00 | . .Sensor, Oxygen | 1 шт. | — | |
|
| 3 | 2D9-14620-00-00 | Exhaust Pipe Assy 2 | 1 шт. | — | |
|
| 4 | 5VN-8592A-00-00 | . .Sensor, Oxygen | 1 шт. | — | |
|
| 5 | 2D9-14710-00-00 | Muffler Assy 1 | 1 шт. | — | |
|
| 6 | 5KS-14755-00-00 | . .Gasket, Silencer | 2 шт. | — | |
|
| 7 | 92014-08030-00 | . Bolt, Button Head | 2 шт. | — | |
|
| 8 | 5VN-14788-00-00 | . .Band, Silencer | 2 шт. | — | |
|
| 9 | 90179-08022-00 | Nut | 4 шт. | — | |
|
| 10 | 3EG-14613-00-00 | Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 11 | 90111-10015-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 12 | 2D9-14624-00-00 | Cover, Exhaust | 1 шт. | — | |
|
| 13 | 4WM-14885-00-00 | Hose, Bend 5 | 1 шт. | — | |
|
| 14 | 90467-19065-00 | Clip | 1 шт. | — | |
|
| 15 | 4WM-14857-00-00 | Case, Air Cleaner | 1 шт. | — | |
|
| 16 | 5VN-14858-00-00 | Cap, Case | 1 шт. | — | |
|
| 17 | 95607-05100-00 | .Nut, U | 1 шт. | — | |
|
| 18 | 92907-05200-00 | Washer | 1 шт. | — | |
|
| 19 | 90202-05057-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 90119-05020-00 | Bolt, With Washer | 2 шт. | — | |
|
| 21 | 90480-10517-00 | Grommet | 2 шт. | — | |
|
| 22 | 90387-0501W-00 | Collar | 2 шт. | — | |
|
| 23 | 5VN-14882-00-00 | Hose, Bend 2 | 1 шт. | — | |
|
| 24 | 5VN-14884-10-00 | Hose, Bend 4 | 1 шт. | — | |
|
| 25 | 5VN-14886-20-00 | Hose, Bend 6 | 1 шт. | — | |
|
| 26 | 90468-08104-00 | Clip | 4 шт. | — | |
|
| 27 | 90467-160A2-00 | Clip | 2 шт. | — | |
|
| 28 | 5VN-14871-10-00 | Pipe 1 | 1 шт. | — | |
|
| 29 | 90445-16004-00 | Hose (L64) | 1 шт. | — | |
|
| 30 | 91314-06014-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 31 | 5VN-14868-00-00 | Bracket 2 | 1 шт. | — | |
|
| 32 | 95027-06010-00 | Bolt, Flange | 2 шт. | — | |
|
| 33 | 5VN-14803-00-00 | Air Induction System Assy | 1 шт. | — | |
|
| 34 | 90467-17089-00 | Clip | 1 шт. | — | |
|
| 35 | 5VN-14869-00-00 | Bracket 3 | 1 шт. | — | |
|
| 36 | 95027-06010-00 | Bolt, Flange | 2 шт. | — | |
|
