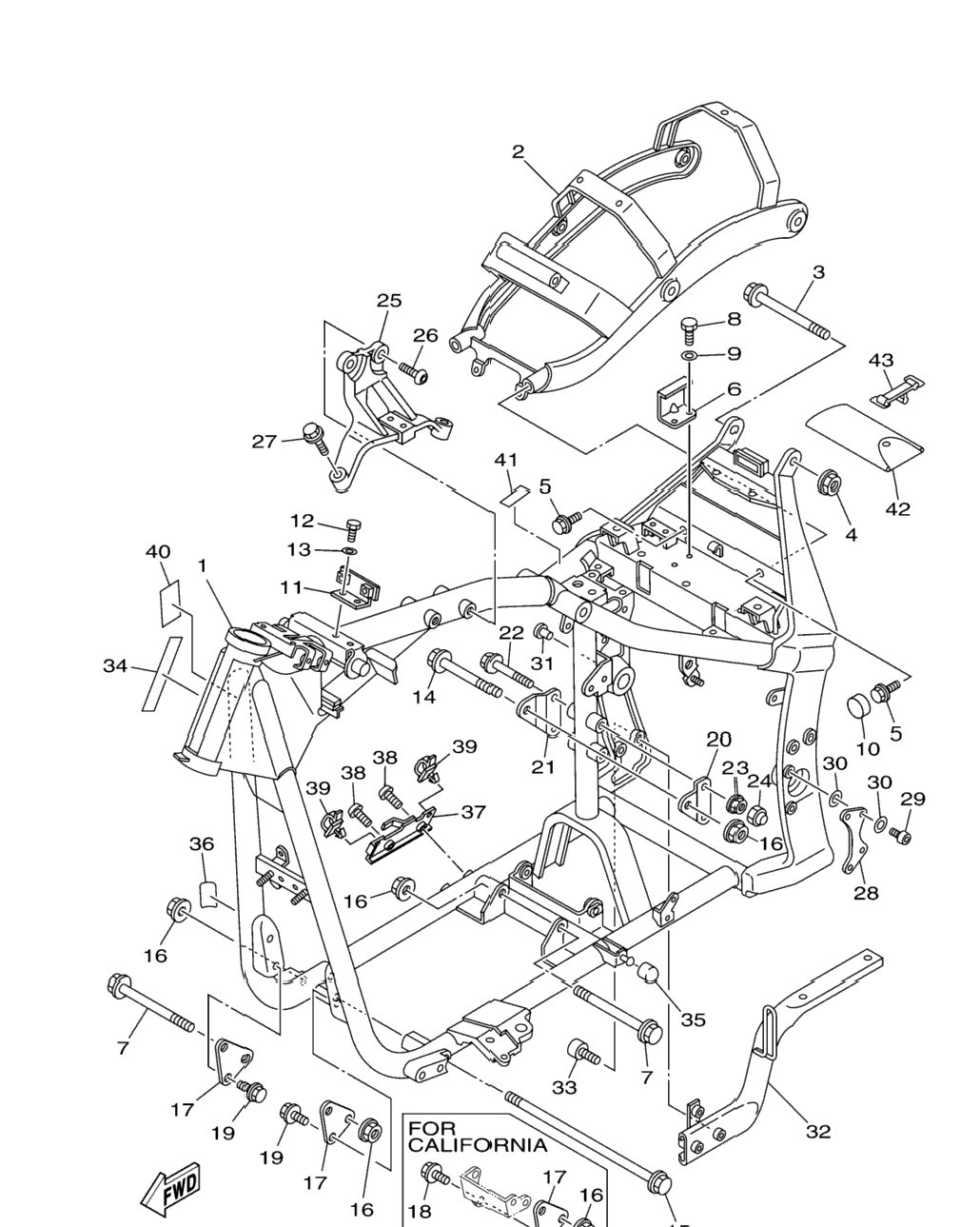

| 1 | 5VN-21110-20-00 | Frame Comp | 1 шт. | — | |
|
| 2 | 5VN-21190-00-00 | Rear Frame Comp | 1 шт. | — | |
|
| 3 | 90105-12016-00 | Bolt, Flange | 1 шт. | — | |
|
| 4 | 90185-12002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 5 | 95827-10035-00 | Bolt, Flange | 2 шт. | — | |
|
| 6 | 5VN-2115C-00-00 | Brkt | 1 шт. | — | |
|
| 7 | 90105-12087-00 | Bolt, Flange | 2 шт. | — | |
|
| 8 | 97007-05010-00 | Bolt | 2 шт. | — | |
|
| 9 | 92907-05600-00 | Washer, Plate | 2 шт. | — | |
|
| 10 | 4WM-21399-00-00 | Cap | 1 шт. | — | |
|
| 11 | 5VN-2134M-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 12 | 97007-05010-00 | Bolt | 2 шт. | — | |
|
| 13 | 92907-05600-00 | Washer, Plate | 2 шт. | — | |
|
| 14 | 90105-12309-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 90105-126A6-00 | Bolt, Flange | 1 шт. | — | |
|
| 16 | 95607-12200-00 | Nut, Self-Locking | 4 шт. | — | |
|
| 17 | 4WM-21314-00-00 | Stay, Engine 5 | 2 шт. | — | |
|
| 18 | 95827-10025-00 | Bolt, Flange FOR CAL | 0 шт. | — | |
|
| 19 | 95827-10016-00 | Bolt, Flange FOR CAL | 0 шт. | — | |
|
| 20 | 95827-10016-00 | Bolt, Flange FOR U49 | 4 шт. | — | |
|
| 21 | 4WM-21315-00-00 | Stay, Engine 2 | 1 шт. | — | |
|
| 22 | 4WM-21316-00-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 23 | 90105-10170-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 95607-10200-00 | Nut, U Flange | 2 шт. | — | |
|
| 25 | 5YU-2143A-00-00 | Cap | 0 шт. | — | |
|
| 26 | 5VN-21317-10-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 27 | 90111-10047-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 28 | 95827-10035-00 | Bolt, Flange | 2 шт. | — | |
|
| 29 | 5VN-2137F-00-00 | Stay 1 | 1 шт. | — | |
|
| 30 | 90111-10003-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 31 | 90201-11013-00 | Washer, Plate | 4 шт. | — | |
|
| 32 | 90338-09012-00 | Plug | 2 шт. | — | |
|
| 33 | 5MB-21445-00-00 | Stay, Muffler 1 | 1 шт. | — | |
|
| 34 | 90110-10191-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 35 | 3D8-2117G-00-00 | Protector | 0 шт. | — | |
|
| 36 | 3VR-27114-00-00 | Stopper, Main Stand | 1 шт. | — | |
|
| 37 | 5VN-21268-00-00 | Seal | 0 шт. | — | |
|
| 38 | 5VN-8257V-00-00 | Plate, Connector | 1 шт. | — | |
|
| 39 | 92017-06020-00 | Bolt, Button Head | 2 шт. | — | |
|
| 40 | 90464-07001-00 | Clamp | 2 шт. | — | |
|
| 41 | 5BM-21268-00-00 | Seal | 1 шт. | — | |
|
| 42 | 5VP-1548B-00-00 | Oil, Label | 1 шт. | — | |
|
| 43 | 5VN-28100-00-00 | Tool Kit | 1 шт. | — | |
|
| 44 | 46X-21376-00-00 | Band, Tool | 1 шт. | — | |
|
