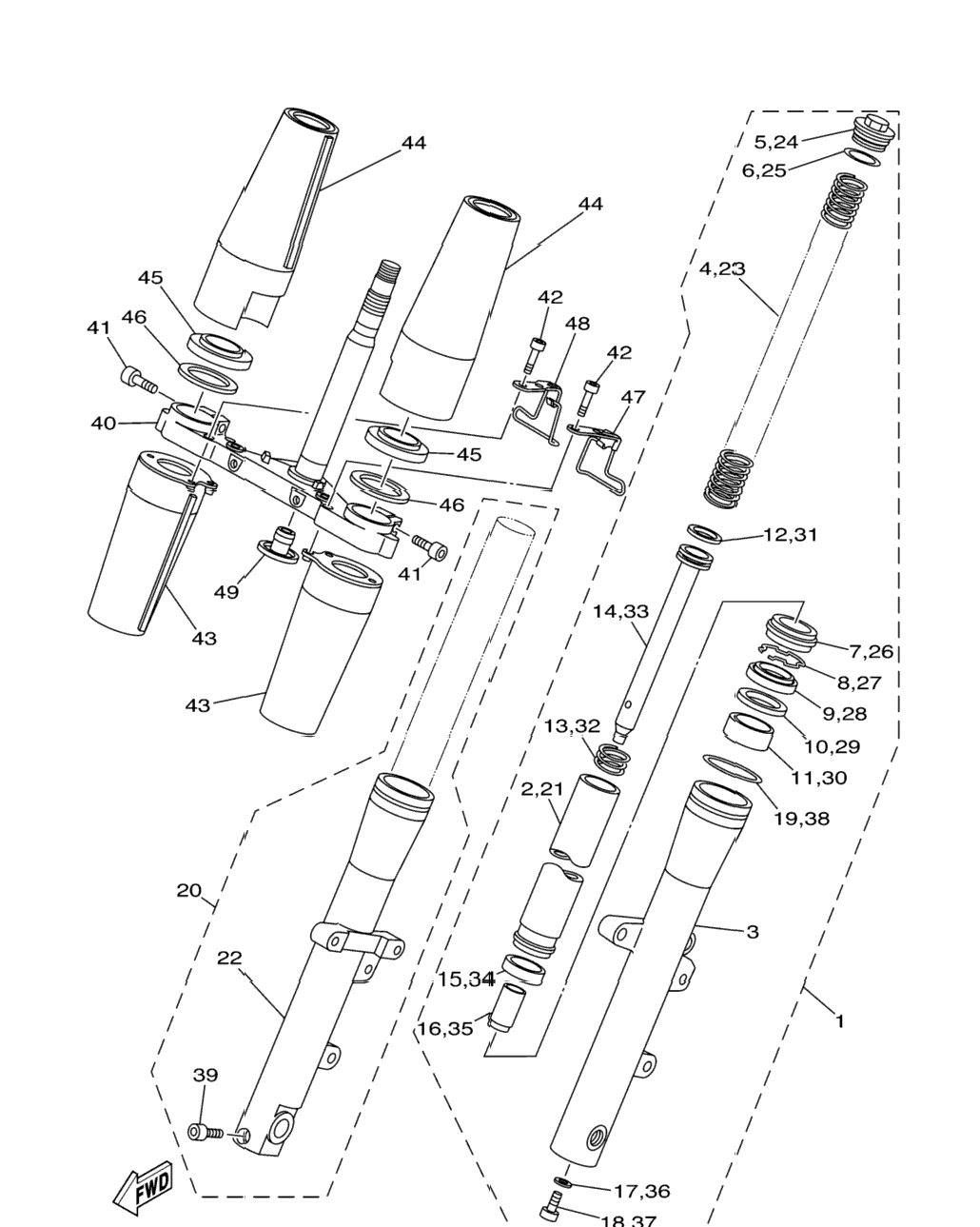

| 1 | 5MB-23102-01-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 4WM-23110-00-00 | . . .Inner Tube Comp.1 | 1 шт. | — | |
|
| 3 | 5MB-23126-00-00 | . .Tube, Outer (L.H) | 1 шт. | — | |
|
| 4 | 4WM-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 5 | 5MB-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 6 | 4NK-23147-00-00 | . .O-Ring | 1 шт. | — | |
|
| 7 | 4NK-23144-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 8 | 34L-23153-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 9 | 4NK-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 10 | 4NK-23146-00-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 11 | 4NK-23125-00-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 12 | 4NK-23157-00-00 | . .Ring, Piston | 1 шт. | — | |
|
| 13 | 4NK-23151-00-00 | . .Spring, Rebound | 1 шт. | — | |
|
| 14 | 4WM-23171-00-00 | . .Piston, Front Fork | 1 шт. | — | |
|
| 15 | 4NK-23135-00-00 | . .Metal, Slide 2 | 1 шт. | — | |
|
| 16 | 4WM-23166-00-00 | . .Spacer, Oil Lock | 1 шт. | — | |
|
| 17 | 3MA-23129-10-00 | . .Gasket, Drain Plug | 1 шт. | — | |
|
| 18 | 4NK-23181-00-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 19 | 4NK-23193-00-00 | . .Guide, Boot | 1 шт. | — | |
|
| 20 | 5MB-23103-01-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 21 | 4WM-23110-00-00 | . . .Inner Tube Comp.1 | 1 шт. | — | |
|
| 22 | 5MB-23136-00-00 | . .Tube, Outer (R.H) | 1 шт. | — | |
|
| 23 | 4WM-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 24 | 5MB-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 25 | 4NK-23147-00-00 | . .O-Ring | 1 шт. | — | |
|
| 26 | 4NK-23144-00-00 | . .Seal, Dust | 1 шт. | — | |
|
| 27 | 34L-23153-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 28 | 4NK-23145-00-00 | . .Oil Seal | 1 шт. | — | |
|
| 29 | 4NK-23146-00-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 30 | 4NK-23125-00-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 31 | 4NK-23157-00-00 | . .Ring, Piston | 1 шт. | — | |
|
| 32 | 4NK-23151-00-00 | . .Spring, Rebound | 1 шт. | — | |
|
| 33 | 4WM-23171-00-00 | . .Piston, Front Fork | 1 шт. | — | |
|
| 34 | 4NK-23135-00-00 | . .Metal, Slide 2 | 1 шт. | — | |
|
| 35 | 4WM-23166-00-00 | . .Spacer, Oil Lock | 1 шт. | — | |
|
| 36 | 3MA-23129-10-00 | . .Gasket, Drain Plug | 1 шт. | — | |
|
| 37 | 4NK-23181-00-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 38 | 4NK-23193-00-00 | . .Guide, Boot | 1 шт. | — | |
|
| 39 | 1KT-23181-00-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 40 | 4WM-23340-01-00 | Under Bracket Comp | 1 шт. | — | |
|
| 41 | 38W-23181-00-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 42 | 4NK-23181-10-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 43 | 5MB-23123-00-00 | Cover, Under 1 | 2 шт. | — | |
|
| 44 | 5MB-23121-00-00 | Cover, Upper 1 | 2 шт. | — | |
|
| 45 | 4NK-23163-00-00 | Gasket | 2 шт. | — | |
|
| 46 | 4NK-23165-00-00 | Washer, Felt | 2 шт. | — | |
|
| 47 | 4WM-25876-00-00 | Holder, Brake Hose 2 | 1 шт. | — | |
|
| 48 | 4WM-25887-00-00 | Holder, Brake Hose | 1 шт. | — | |
|
| 49 | 4KM-23123-01-00 | Cover, Under 1 | 1 шт. | — | |
|
