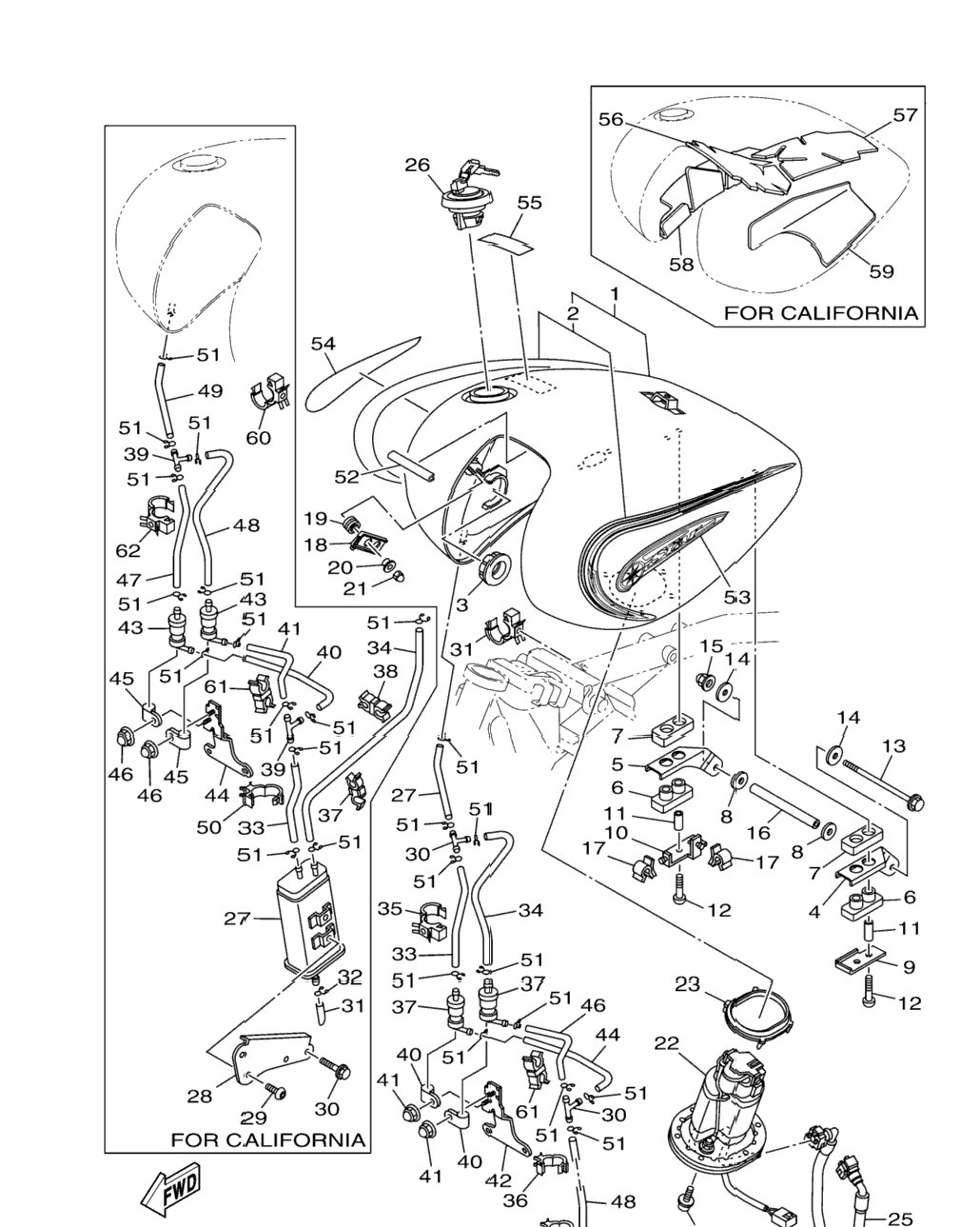

| 1 | 5VN-Y2410-00-X8 | Fuel Tank Comp FOR SMX | 1 шт. | — | — |
|
| 2 | 5VR-24240-60-00 | . .Graphic Set | 0 шт. | — | — |
|
| 3 | 2YK-24181-10-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 4 | 5MB-24191-00-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 5 | 5MB-24192-00-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 6 | 5MB-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 7 | 5MB-24182-00-00 | Damper, Locating 2 | 2 шт. | — | |
|
| 8 | 5MB-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 9 | 5MB-24186-00-00 | Washer, Special | 1 шт. | — | |
|
| 10 | 5VN-24186-00-00 | Washer, Special | 1 шт. | — | |
|
| 11 | 90387-06062-00 | Collar | 4 шт. | — | |
|
| 12 | 92017-06035-00 | Bolt, Button Head | 4 шт. | — | |
|
| 13 | 95827-06140-00 | Bolt, Flange | 0 шт. | — | |
|
| 14 | 90201-064R0-00 | Washer, Plate | 2 шт. | — | |
|
| 15 | 90176-06055-00 | Nut, Crown | 1 шт. | — | |
|
| 16 | 90387-06061-00 | Collar | 1 шт. | — | |
|
| 17 | 90464-08189-00 | Clamp | 2 шт. | — | |
|
| 18 | 4WM-24291-00-00 | Bracket, Fuel Tank 1 | 2 шт. | — | |
|
| 19 | 4WM-24339-00-00 | Grommet | 4 шт. | — | |
|
| 20 | 90387-050T5-00 | Collar | 4 шт. | — | |
|
| 21 | 95302-05800-00 | Nut, Crown | 4 шт. | — | |
|
| 22 | 5VN-13907-11-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 23 | 5VN-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 24 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 25 | 5VN-13971-00-00 | Pipe, Fuel 1 | 0 шт. | — | |
|
| 26 | 4NK-24602-20-00 | Cap Assy | 1 шт. | — | |
|
| 27 | 5PX-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 28 | 5VN-24321-30-00 | Pipe 10 FOR U49 | 1 шт. | — | |
|
| 29 | 5VN-2742L-00-00 | Bracket 5 FOR CAL | 0 шт. | — | |
|
| 30 | 90111-06102-00 | Bolt, Hex. Socket Button FOR CAL | 0 шт. | — | |
|
| 31 | 90413-07007-00 | Way 3 FOR U49 | 2 шт. | — | |
|
| 32 | 90105-06009-00 | Bolt, Flange FOR CAL | 0 шт. | — | |
|
| 33 | 90464-25217-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 34 | 3D8-24325-00-00 | Pipe 14 FOR CAL | 0 шт. | — | |
|
| 35 | 90467-10041-00 | Clip FOR CAL | 0 шт. | — | |
|
| 36 | 5VN-243A1-00-00 | Pipe 15 FOR U49 | 1 шт. | — | |
|
| 37 | 5VN-24322-20-00 | Pipe 11 FOR CAL | 0 шт. | — | |
|
| 38 | 5VN-243A2-00-00 | Pipe 16 FOR U49 | 1 шт. | — | |
|
| 39 | 5VN-24318-10-00 | Pipe, Overflow FOR CAL | 0 шт. | — | |
|
| 40 | 90464-25217-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 41 | 90464-10190-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 42 | 5RB-24180-00-00 | Roll Over Valve Assy FOR U49 | 2 шт. | — | |
|
| 43 | 90464-09022-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 44 | 90464-09014-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 45 | 90413-07007-00 | Way 3 FOR CAL | 0 шт. | — | |
|
| 46 | 90461-15139-00 | Clamp FOR U49 | 2 шт. | — | |
|
| 47 | 5VN-243A3-00-00 | Pipe 17 FOR CAL | 0 шт. | — | |
|
| 48 | 90176-05054-00 | Nut, Crown FOR U49 | 2 шт. | — | |
|
| 49 | 5VN-243A4-00-00 | Pipe 18 FOR CAL | 0 шт. | — | |
|
| 50 | 5VN-24662-10-00 | Stay FOR U49 | 1 шт. | — | |
|
| 51 | 5RB-24180-00-00 | Roll Over Valve Assy FOR CAL | 0 шт. | — | |
|
| 52 | 5VN-243A3-00-00 | Pipe 17 FOR U49 | 1 шт. | — | |
|
| 53 | 5VN-24662-10-00 | Stay FOR CAL | 0 шт. | — | |
|
| 54 | 90461-15139-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 55 | 90176-05054-00 | Nut, Crown FOR CAL | 0 шт. | — | |
|
| 56 | 5VN-243A4-00-00 | Pipe 18 FOR U49 | 1 шт. | — | |
|
| 57 | 5VN-243A1-00-00 | Pipe 15 FOR CAL | 0 шт. | — | |
|
| 58 | 5VN-243A2-00-00 | Pipe 16 FOR CAL | 0 шт. | — | |
|
| 59 | 5VN-24322-10-00 | Pipe 11 FOR U49 | 1 шт. | — | |
|
| 60 | 5VN-24321-30-00 | Pipe 10 FOR CAL | 0 шт. | — | |
|
| 61 | 90464-20191-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 62 | 90467-09103-00 | Clip FOR CAL | 0 шт. | — | |
|
| 63 | 90467-09103-00 | Clip FOR U49 | 11 шт. | — | |
|
| 64 | 4BP-24188-00-00 | Mold, Fuel Tank | 1 шт. | — | |
|
| 65 | 35S-2416B-00-00 | Emblem | 1 шт. | — | |
|
| 66 | 35S-2417B-00-00 | Emblem | 1 шт. | — | |
|
| 67 | 5GK-2118K-00-00 | Label, Caution | 1 шт. | — | |
|
| 68 | 5VN-24145-00-00 | Damper, Side Cover FOR CAL | 0 шт. | — | |
|
| 69 | 5VN-2414H-00-00 | Damper, Plate 1 FOR CAL | 0 шт. | — | |
|
| 70 | 5VN-2414J-00-00 | Damper, Plate 2 FOR CAL | 0 шт. | — | |
|
| 71 | 5VN-2414K-00-00 | Damper, Plate 3 FOR CAL | 0 шт. | — | |
|
| 72 | 90464-25217-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 73 | 90464-10M59-00 | Clamp | 1 шт. | — | |
|
| 74 | 90464-10190-00 | Clamp FOR U49 | 1 шт. | — | |
|
| 75 | 90464-25217-00 | Clamp FOR CAL | 0 шт. | — | |
|
