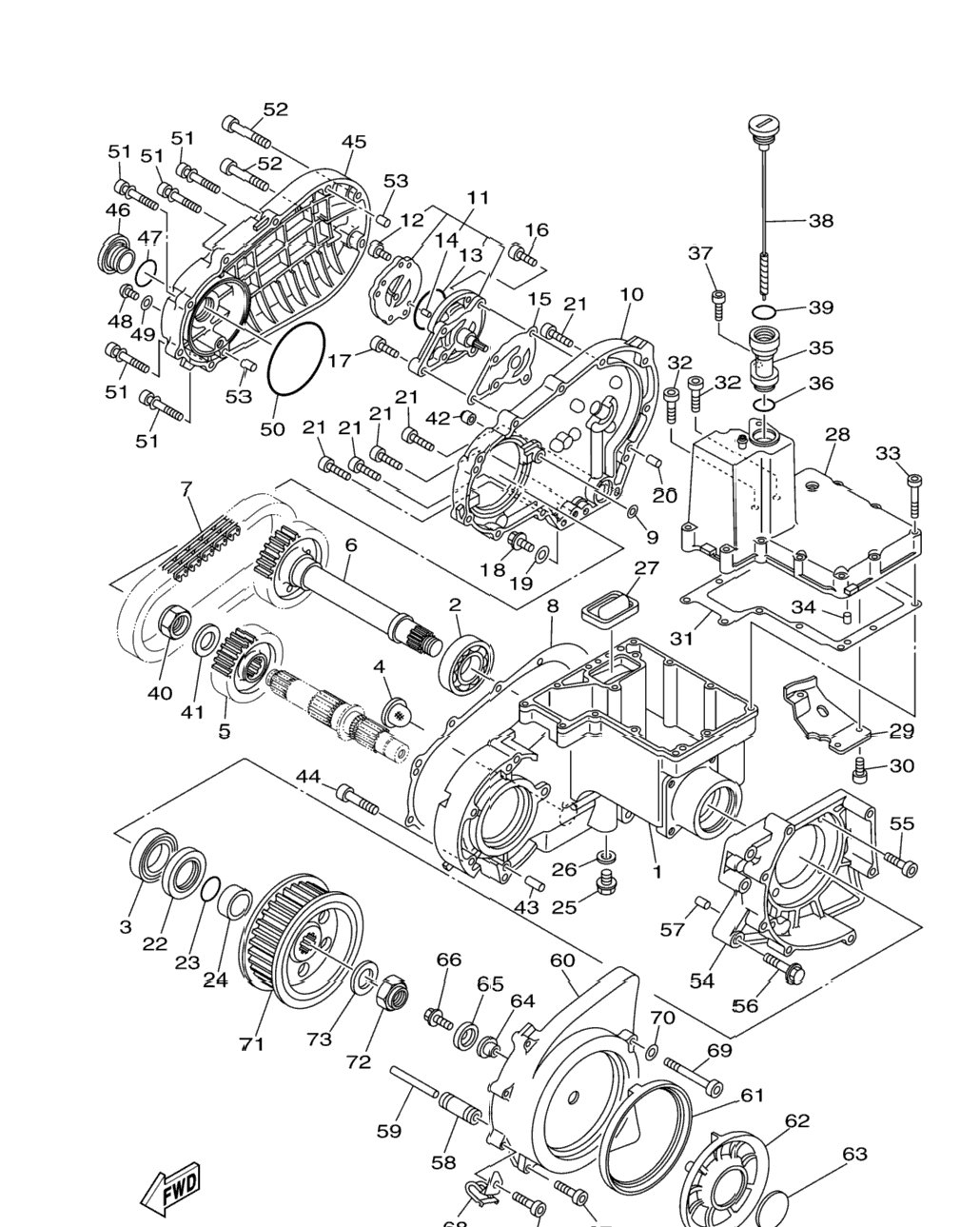

| 1 | 5VN-17541-00-00 | Case, Transfer 1 | 1 шт. | — | |
|
| 2 | 93306-00907-00 | Bearing | 1 шт. | — | |
|
| 3 | 93306-20601-00 | Bearing | 1 шт. | — | |
|
| 4 | 4WM-13286-00-00 | Cleaner | 1 шт. | — | |
|
| 5 | 4WM-17682-00-00 | Sprocket, Chain Drive | 1 шт. | — | |
|
| 6 | 5VN-1755A-00-00 | Middle Driven Shaft Assy | 1 шт. | — | |
|
| 7 | 4WM-16139-00-00 | Chain, Primary | 1 шт. | — | |
|
| 8 | 5PX-17929-00-00 | Gasket 1 | 1 шт. | — | |
|
| 9 | 4WM-17931-00-00 | Gasket 2 | 1 шт. | — | |
|
| 10 | 5PX-17542-00-00 | Case, Transfer 2 | 1 шт. | — | |
|
| 11 | 5PX-13100-00-00 | Oil Pump Assy | 1 шт. | — | |
|
| 12 | 90110-06168-00 | . Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 13 | 93210-48214-00 | . O-Ring | 1 шт. | — | |
|
| 14 | 93603-07073-00 | . Pin, Dowel | 2 шт. | — | |
|
| 15 | 4WM-13116-00-00 | Gasket, Pump Case | 1 шт. | — | |
|
| 16 | 90110-06047-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 17 | 90110-06039-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 95814-08016-00 | Bolt, Flange | 1 шт. | — | |
|
| 19 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 20 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 21 | 91314-06025-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 22 | 93102-40330-00 | Oil Seal | 1 шт. | — | |
|
| 23 | 93210-27672-00 | O-Ring | 1 шт. | — | |
|
| 24 | 90387-304K7-00 | Collar | 1 шт. | — | |
|
| 25 | 90340-14132-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 26 | 214-11198-01-00 | Gasket | 1 шт. | — | |
|
| 27 | 4WM-13421-00-00 | Strainer 2 | 1 шт. | — | |
|
| 28 | 5MB-17631-10-00 | Cap | 1 шт. | — | |
|
| 29 | 4WM-1763A-00-00 | Plate, Cap | 1 шт. | — | |
|
| 30 | 90110-06004-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 31 | 4WM-17932-00-00 | Gasket,3 | 1 шт. | — | |
|
| 32 | 91317-06030-00 | Bolt, Hex. Socket Head | 2 шт. | — | |
|
| 33 | 91317-06040-00 | Bolt, Hex. Socket Head | 13 шт. | — | |
|
| 34 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 35 | 5MB-13132-10-00 | Joint | 1 шт. | — | |
|
| 36 | 93210-23326-00 | O-Ring | 1 шт. | — | |
|
| 37 | 91317-06025-00 | Bolt, Hex. Socket Head | 1 шт. | — | |
|
| 38 | 4WM-15362-00-00 | Plug, Oil Level | 1 шт. | — | |
|
| 39 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 40 | 90179-22006-00 | Nut | 1 шт. | — | |
|
| 41 | 90208-22002-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 42 | 90179-08004-00 | Nut | 1 шт. | — | |
|
| 43 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 44 | 91314-08050-00 | Bolt | 4 шт. | — | |
|
| 45 | 4WM-15779-00-00 | Cover | 1 шт. | — | |
|
| 46 | 90340-32140-00 | Plug, Straight Screw | 0 шт. | — | |
|
| 47 | 93210-32172-00 | O-Ring | 1 шт. | — | |
|
| 48 | 92014-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 49 | 90430-06016-00 | Gasket | 1 шт. | — | |
|
| 50 | 93210-92448-00 | O-Ring | 1 шт. | — | |
|
| 51 | 90110-06312-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 52 | 91314-08055-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 53 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 54 | 5VN-17613-00-00 | Stay | 1 шт. | — | |
|
| 55 | 90110-08155-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 56 | 95817-10050-00 | Bolt, Flange | 3 шт. | — | |
|
| 57 | 99480-10018-00 | Pin | 0 шт. | — | |
|
| 58 | 4WM-17653-00-00 | Slider | 2 шт. | — | |
|
| 59 | 93606-76259-00 | Pin, Dowel | 2 шт. | — | |
|
| 60 | 5VN-17076-00-00 | Cover | 1 шт. | — | |
|
| 61 | 4WM-15449-00-00 | Ring, Rubber | 1 шт. | — | |
|
| 62 | 4WM-17665-01-00 | Plate 1 | 1 шт. | — | |
|
| 63 | 4WM-17675-00-00 | Plate 2 | 1 шт. | — | |
|
| 64 | 4H7-15486-00-00 | Grommet | 1 шт. | — | |
|
| 65 | 90209-06096-00 | Washer | 1 шт. | — | |
|
| 66 | 95807-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 67 | 90110-06140-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 68 | 90462-06003-00 | Clamp | 1 шт. | — | |
|
| 69 | 90110-08002-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 70 | 90201-08035-00 | Washer, Plate | 2 шт. | — | |
|
| 71 | 5VN-17651-00-00 | Pulley, Belt | 1 шт. | — | |
|
| 72 | 90179-22006-00 | Nut | 1 шт. | — | |
|
| 73 | 90208-22002-00 | Washer, Conical Spring | 1 шт. | — | |
|
