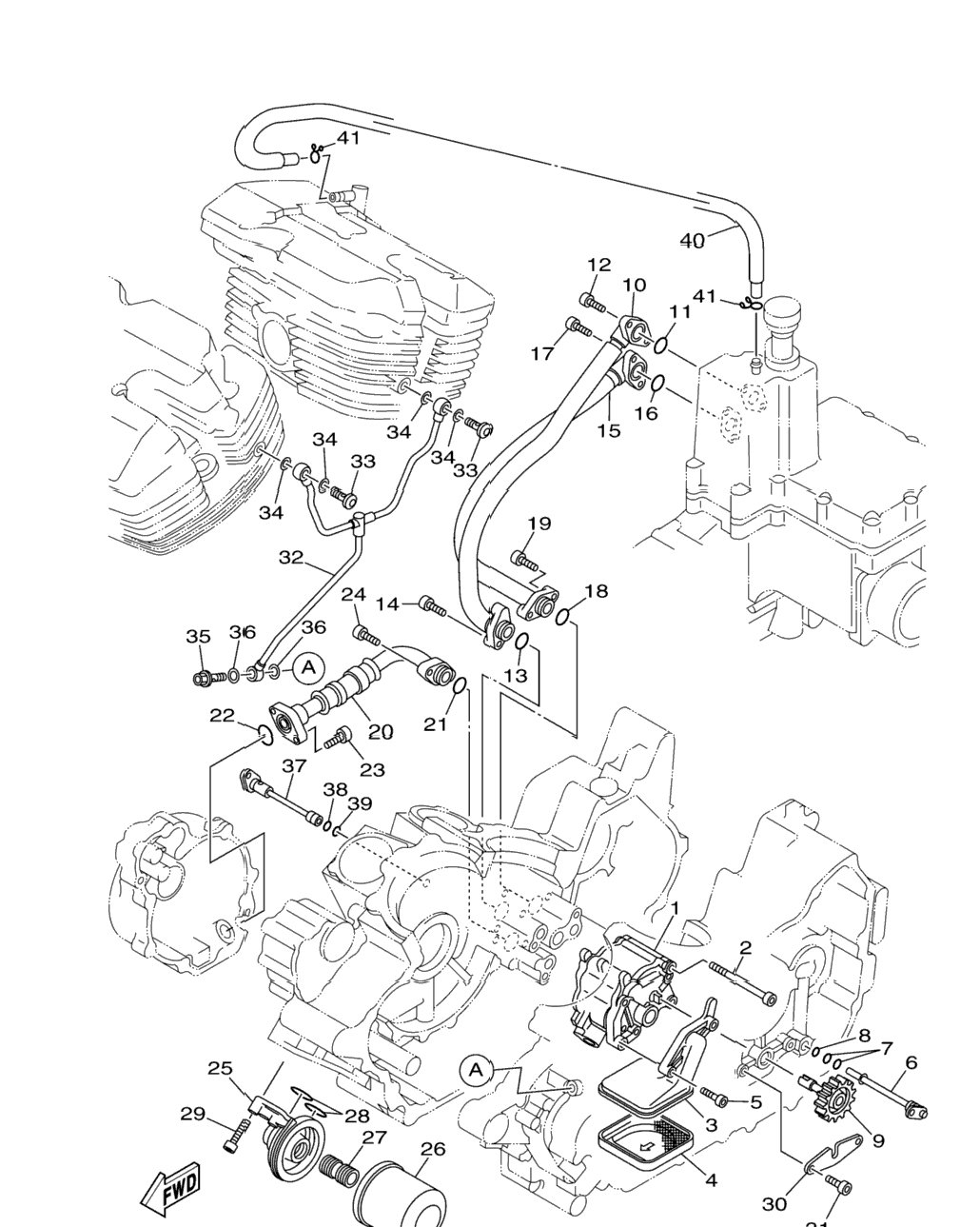

| 1 | 5PX-13300-03-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 90110-06309-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 3 | 4WM-13412-00-00 | Housing, Strainer | 1 шт. | — | |
|
| 4 | 4WM-13411-00-00 | Strainer, Oil | 1 шт. | — | |
|
| 5 | 90110-06057-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 6 | 4WM-13171-00-00 | Pipe, Delivery 2 | 1 шт. | — | |
|
| 7 | 93210-09350-00 | O-Ring | 2 шт. | — | |
|
| 8 | 93210-06667-00 | O-Ring | 1 шт. | — | |
|
| 9 | 5YU-13360-00-00 | Driven Gear Assy | 1 шт. | — | |
|
| 10 | 4WM-13416-01-00 | Pipe, Oil 1 | 1 шт. | — | |
|
| 15 | 4WM-13418-00-00 | Pipe, Oil 2 | 1 шт. | — | |
|
| 17 | 91317-06020-00 | Bolt, Hex. Socket Head | 2 шт. | — | |
|
| 17 | 91317-06020-00 | Bolt, Hex. Socket Head | 2 шт. | — | |
|
| 18 | 93210-15171-00 | .O-Ring | 1 шт. | — | |
|
| 18 | 93210-15171-00 | .O-Ring | 1 шт. | — | |
|
| 20 | 5PX-13161-00-00 | Pipe, Delivery 1 | 1 шт. | — | |
|
| 21 | 93210-13657-00 | O-Ring | 1 шт. | — | |
|
| 22 | 93210-16629-00 | O-Ring | 1 шт. | — | |
|
| 22 | 93210-16629-00 | O-Ring | 1 шт. | — | |
|
| 22 | 93210-16629-00 | O-Ring | 1 шт. | — | |
|
| 23 | 91314-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 23 | 91314-06020-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 23 | 91314-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 24 | 90110-06106-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 25 | 5MB-13461-00-00 | Plate, Adaptor | 1 шт. | — | |
|
| 26 | 3FV-13440-10-00 | Element Assy, Oil Cleaner | 1 шт. | — | |
|
| 27 | 90401-20002-00 | Bolt, Union | 1 шт. | — | |
|
| 28 | 93210-23326-00 | O-Ring | 2 шт. | — | |
|
| 29 | 90110-06047-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 30 | 4WM-1357N-01-00 | Plate, Stopper 1 | 1 шт. | — | |
|
| 31 | 91317-06016-00 | Bolt, Hex. Socket Head | 2 шт. | — | |
|
| 32 | 5VN-13405-00-00 | Oil Pipe Comp. 1 | 1 шт. | — | |
|
| 33 | 90401-10175-00 | Bolt, Union | 2 шт. | — | |
|
| 34 | 90430-10188-00 | Gasket | 4 шт. | — | |
|
| 35 | 90401-08176-00 | Bolt, Union | 1 шт. | — | |
|
| 36 | 90430-08119-00 | Gasket | 2 шт. | — | |
|
| 37 | 4WM-13181-00-00 | Pipe, Delivery 3 | 1 шт. | — | |
|
| 38 | 93210-08003-00 | O-Ring | 1 шт. | — | |
|
| 39 | 93210-07435-00 | O-Ring | 1 шт. | — | |
|
| 40 | 5VN-13464-00-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 41 | 90467-10008-00 | Clip | 2 шт. | — | |
|
