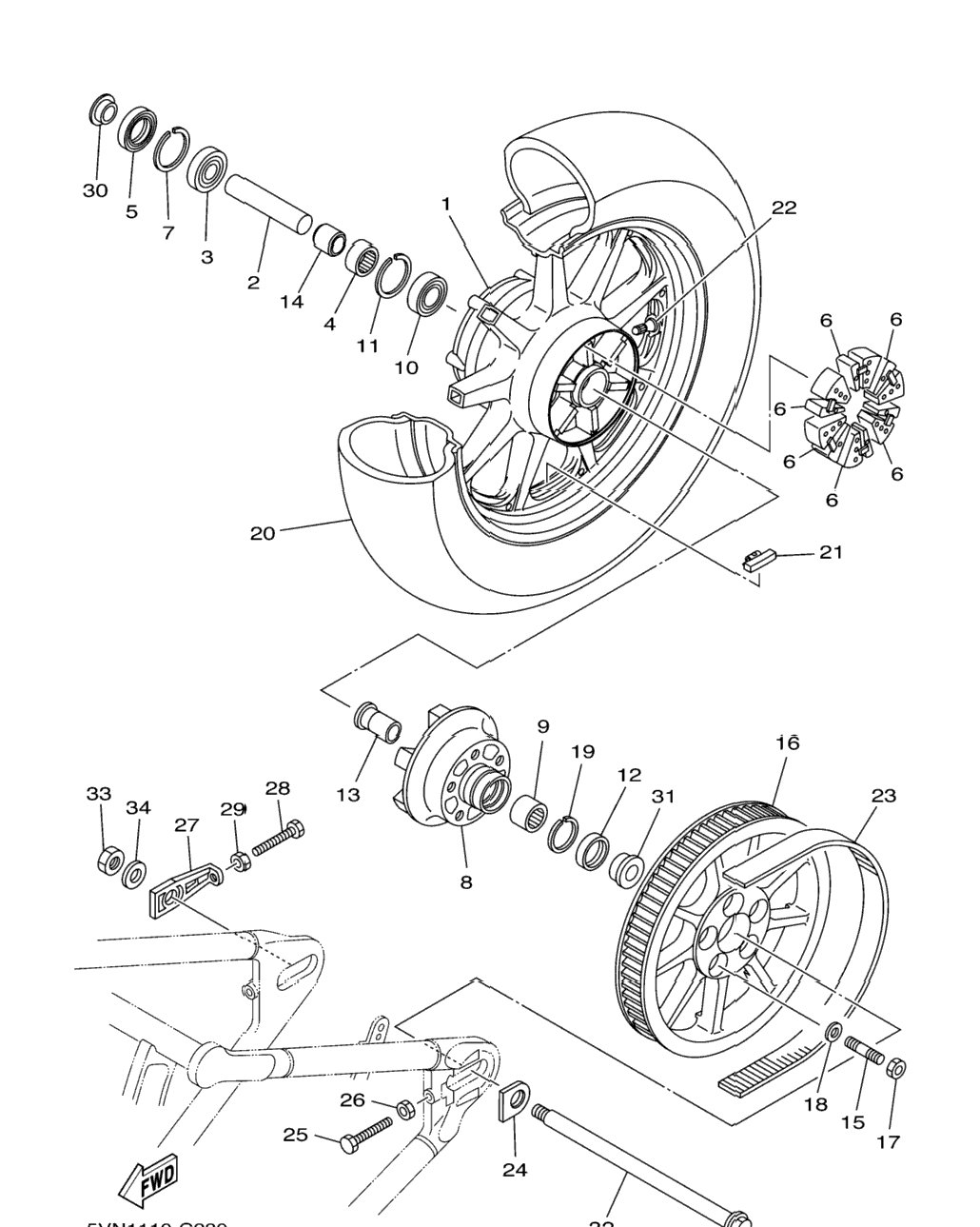

| 1 | 5VN-25338-00-33 | Cast Wheel, Rear YB FOR SMX | 1 шт. | — | |
|
| 2 | 90560-20339-00 | Spacer | 1 шт. | — | |
|
| 3 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 4 | 93317-33590-00 | Bearing | 1 шт. | — | |
|
| 5 | 93106-28001-00 | Oil Seal | 1 шт. | — | |
|
| 6 | 4WM-25364-00-00 | Damper | 6 шт. | — | |
|
| 7 | 99009-52500-00 | Circlip | 1 шт. | — | |
|
| 8 | 5VN-25366-10-00 | Clutch, Hub | 1 шт. | — | |
|
| 9 | 93311-32698-00 | Bearing | 1 шт. | — | |
|
| 10 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 11 | 99009-52500-00 | Circlip | 1 шт. | — | |
|
| 12 | 93106-30004-00 | Oil Seal | 1 шт. | — | |
|
| 13 | 4WM-25376-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 14 | 5VN-25383-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 15 | 95617-12630-00 | Bolt, Stud | 5 шт. | — | |
|
| 16 | 5VN-25470-21-00 | Sprocket, Driven (70T) | 1 шт. | — | |
|
| 17 | 95614-12100-00 | Nut, U | 5 шт. | — | |
|
| 18 | 90201-126A7-00 | Washer, Plate | 5 шт. | — | |
|
| 19 | 93450-35163-00 | Circlip | 1 шт. | — | |
|
| 20 | 94115-16012-00 | Tire (150/80-16 M/C 71H) BRIDGESTONE | 1 шт. | — | |
|
| 21 | 5MT-25398-00-00 | Balancer, Wheel (10G) UN | 1 шт. | — | |
|
| 22 | 5MT-25398-10-00 | Balancer, Wheel (20G) UN | 1 шт. | — | |
|
| 23 | 5MT-25398-20-00 | Balancer, Wheel (30G) UN | 1 шт. | — | |
|
| 24 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 25 | 5PX-46241-10-00 | V-Belt | 1 шт. | — | |
|
| 26 | 4WM-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 27 | 90101-10001-00 | Bolt | 1 шт. | — | |
|
| 28 | 90170-10003-00 | Nut | 1 шт. | — | |
|
| 29 | 4WM-25389-00-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 30 | 90101-10001-00 | Bolt | 1 шт. | — | |
|
| 31 | 90170-10003-00 | Nut | 1 шт. | — | |
|
| 32 | 90387-20033-00 | Collar | 1 шт. | — | |
|
| 33 | 90387-202X9-00 | Collar | 1 шт. | — | |
|
| 34 | 4WM-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 35 | 90185-18009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 36 | 90201-185R7-00 | Washer, Plate | 1 шт. | — | |
|
