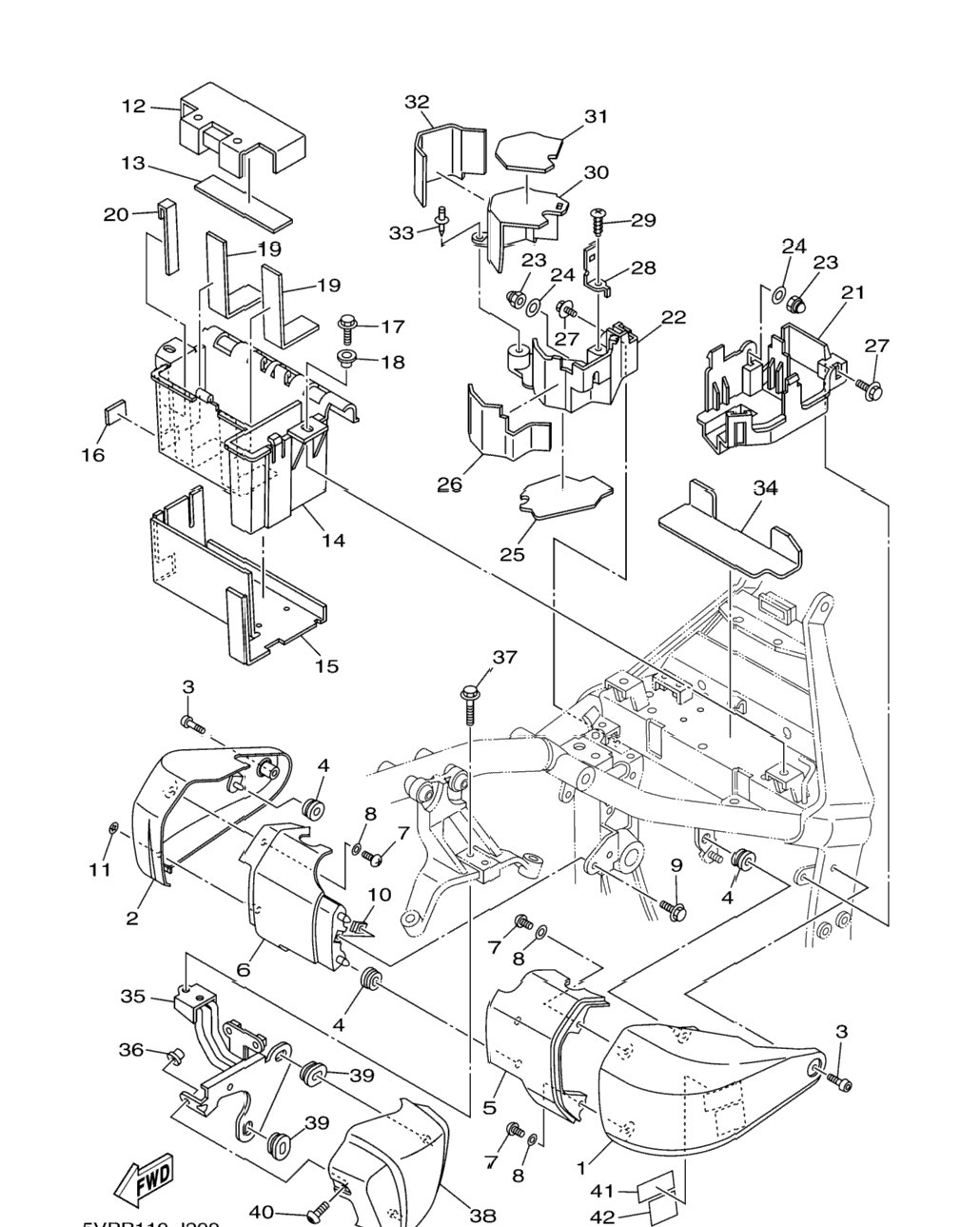

| 1 | 4WM-21711-01-PA | Cover, Side 1 FOR SMX | 1 шт. | — | |
|
| 2 | 4WM-21721-00-PA | Cover, Side 2 FOR SMX | 1 шт. | — | |
|
| 3 | 90149-06328-00 | Screw | 2 шт. | — | |
|
| 4 | 90480-13567-00 | Grommet | 4 шт. | — | |
|
| 5 | 4WM-2117X-00-PA | Cover 9 FOR SMX | 1 шт. | — | |
|
| 6 | 4WM-2117Y-00-PA | Cover 10 FOR SMX | 1 шт. | — | |
|
| 7 | 98507-06014-00 | Screw, Pan Head | 3 шт. | — | |
|
| 8 | 92907-06600-00 | Washer, Plate | 3 шт. | — | |
|
| 9 | 95027-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 10 | 90183-06100-00 | Nut, Spring | 1 шт. | — | |
|
| 11 | 90183-05068-00 | Nut, Spring | 1 шт. | — | |
|
| 12 | 5VN-82129-00-00 | Cover, Battery | 0 шт. | — | |
|
| 13 | 5PX-21778-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 14 | 5VN-2177G-00-00 | Box, Battery | 1 шт. | — | |
|
| 15 | 5VN-21732-10-00 | Seal 1 | 1 шт. | — | |
|
| 16 | 5VN-82118-00-00 | Seal, Battery | 1 шт. | — | |
|
| 17 | 95807-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 18 | 90387-07717-00 | Collar | 2 шт. | — | |
|
| 19 | 5VN-21746-00-00 | Damper | 0 шт. | — | |
|
| 20 | 1AE-2834E-00-00 | Damper 3 | 1 шт. | — | |
|
| 21 | 5VN-2172E-00-00 | Stay, Side Cover 1 | 1 шт. | — | |
|
| 22 | 5VN-2174E-00-00 | Stay, Side Cover 2 | 1 шт. | — | |
|
| 23 | 90176-06003-00 | Nut, Crown | 2 шт. | — | |
|
| 24 | 90201-06035-00 | Washer, Plate | 2 шт. | — | |
|
| 25 | 5VN-216A2-00-00 | Seal, 2 | 1 шт. | — | |
|
| 26 | 5VN-216A3-00-00 | Seal, 3 | 1 шт. | — | |
|
| 27 | 90119-06007-00 | Bolt, With Washer | 2 шт. | — | |
|
| 28 | 5VN-82523-00-00 | Clamp, Coupler | 1 шт. | — | |
|
| 29 | 97707-50014-00 | Screw, Truss Head Tapping | 1 шт. | — | |
|
| 30 | 5VN-8234W-00-00 | Cover, Cap | 1 шт. | — | |
|
| 31 | 5VN-216A4-00-00 | Seal, 4 | 1 шт. | — | |
|
| 32 | 5VN-21669-00-00 | Seal | 1 шт. | — | |
|
| 33 | 90269-06001-00 | Rivet | 1 шт. | — | |
|
| 34 | 5VN-21267-10-00 | Sheet 2 | 1 шт. | — | |
|
| 35 | 5VN-2175V-00-00 | Bracket 3 | 1 шт. | — | |
|
| 36 | 90179-05003-00 | Nut | 1 шт. | — | |
|
| 37 | 95807-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 38 | 5VN-21731-00-00 | Cover, Side 3 | 1 шт. | — | |
|
| 39 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 40 | 90149-05299-00 | Screw | 1 шт. | — | |
|
| 41 | 34B-21684-00-00 | Plate, Routing FOR CAL | 0 шт. | — | |
|
| 42 | 5RU-21686-00-00 | Plate, Routing 2 FOR CAL | 0 шт. | — | |
|
