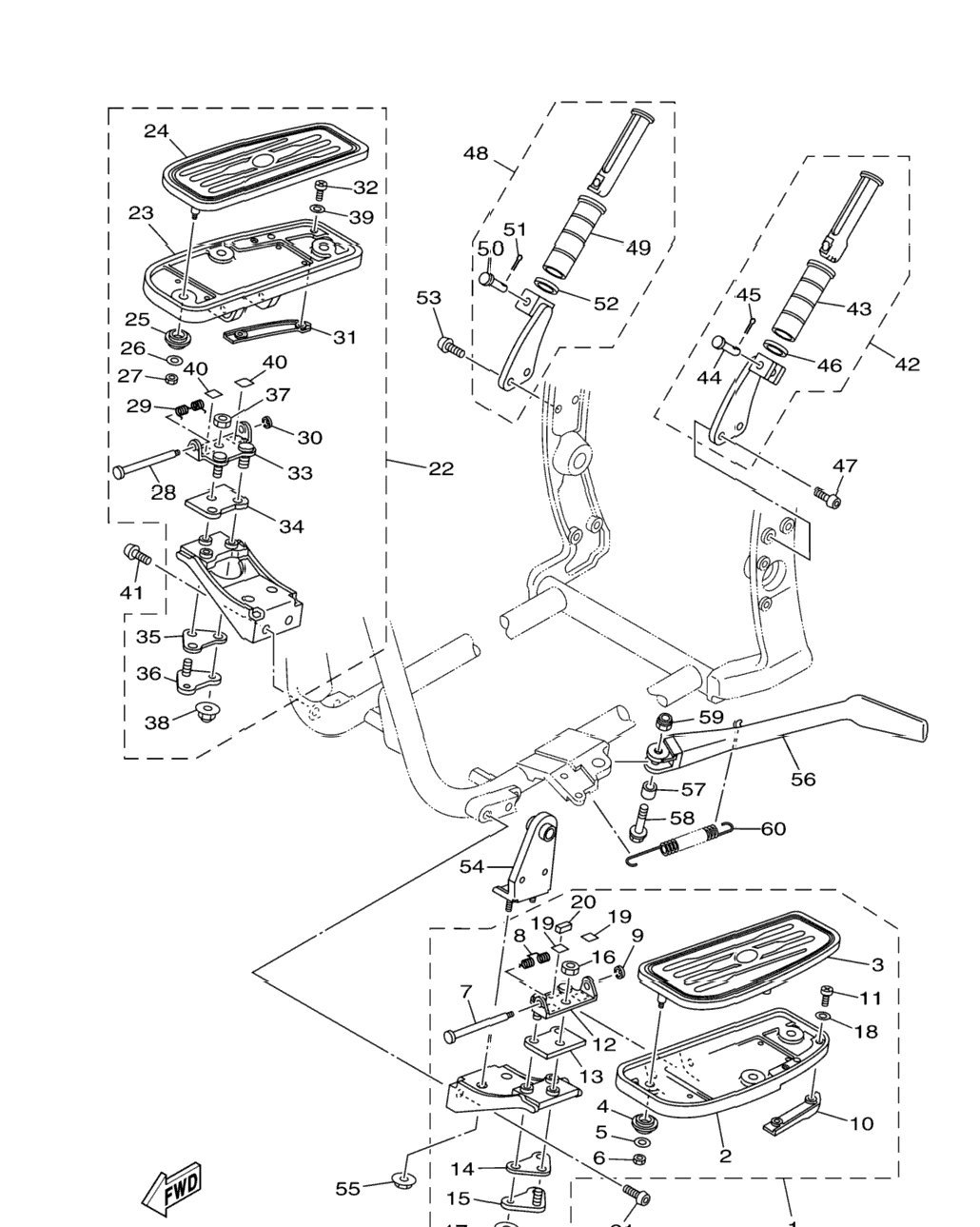

| 1 | 5VN-27410-10-00 | Front Footrest Assy (Left) | 1 шт. | — | |
|
| 2 | 4NK-27451-10-00 | . .Footrest | 1 шт. | — | |
|
| 3 | 4WM-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 4 | 4WM-27414-00-00 | . .Damper, Footrest | 1 шт. | — | |
|
| 5 | 90201-05033-00 | . Washer, Plate | 1 шт. | — | |
|
| 6 | 95607-05100-00 | . .Nut, U | 1 шт. | — | |
|
| 7 | 3D8-27427-00-00 | . .Shaft | 1 шт. | — | |
|
| 8 | 4NK-27426-00-00 | . Spring, Return | 1 шт. | — | |
|
| 9 | 99001-06600-00 | . .Circlip | 1 шт. | — | |
|
| 10 | 4WM-27496-00-00 | . .Mole 1 | 1 шт. | — | |
|
| 11 | 90157-05095-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 12 | 5VN-27422-00-00 | . .Bracket, Footrest 2 | 1 шт. | — | |
|
| 13 | 5VN-27414-00-00 | . .Damper, Footrest | 1 шт. | — | |
|
| 14 | 5VN-27424-00-00 | . .Damper, Footrest 2 | 1 шт. | — | |
|
| 15 | 5VN-27123-00-00 | . .Plate, Stopper | 1 шт. | — | |
|
| 16 | 95317-06600-00 | . .Nut | 1 шт. | — | |
|
| 17 | 90176-06007-00 | . .Nut, Crown | 2 шт. | — | |
|
| 18 | 92907-05200-00 | . Washer | 2 шт. | — | |
|
| 19 | 1D7-27485-00-00 | . .Seal | 2 шт. | — | |
|
| 20 | 5VN-2743E-00-00 | . .Stopper | 1 шт. | — | |
|
| 21 | 90111-10004-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 22 | 5VN-27420-10-00 | Front Footrest Assy (Right) | 1 шт. | — | |
|
| 23 | 4NK-27461-10-00 | . .Footrest | 1 шт. | — | |
|
| 24 | 4WM-27423-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 25 | 4WM-27414-00-00 | . .Damper, Footrest | 1 шт. | — | |
|
| 26 | 90201-05033-00 | . Washer, Plate | 1 шт. | — | |
|
| 27 | 95607-05100-00 | . .Nut, U | 1 шт. | — | |
|
| 28 | 3D8-27427-00-00 | . .Shaft | 1 шт. | — | |
|
| 29 | 4NK-27426-00-00 | . Spring, Return | 1 шт. | — | |
|
| 30 | 99001-06600-00 | . .Circlip | 1 шт. | — | |
|
| 31 | 4WM-27497-00-00 | . .Mole 2 | 1 шт. | — | |
|
| 32 | 90157-05095-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 33 | 5VN-27422-00-00 | . .Bracket, Footrest 2 | 1 шт. | — | |
|
| 34 | 5VN-27414-00-00 | . .Damper, Footrest | 1 шт. | — | |
|
| 35 | 5VN-27424-00-00 | . .Damper, Footrest 2 | 1 шт. | — | |
|
| 36 | 5VN-27123-00-00 | . .Plate, Stopper | 1 шт. | — | |
|
| 37 | 95317-06600-00 | . .Nut | 1 шт. | — | |
|
| 38 | 90176-06007-00 | . .Nut, Crown | 2 шт. | — | |
|
| 39 | 92907-05200-00 | . Washer | 2 шт. | — | |
|
| 40 | 1D7-27485-00-00 | . .Seal | 2 шт. | — | |
|
| 41 | 90111-10004-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 42 | 4WM-27430-11-00 | Rear Footrest Assy 1 | 1 шт. | — | |
|
| 43 | 4WM-27433-00-00 | . .Cover, Rear Footrest | 1 шт. | — | |
|
| 44 | 90240-06146-00 | . .Pin, Clevis | 1 шт. | — | |
|
| 45 | 91401-20015-00 | . Pin, Cotter | 1 шт. | — | |
|
| 46 | 90201-210U0-00 | . .Washer, Plate | 1 шт. | — | |
|
| 47 | 90111-08002-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 48 | 4WM-27440-11-00 | Rear Footrest Assy 2 | 1 шт. | — | |
|
| 49 | 4WM-27433-00-00 | . .Cover, Rear Footrest | 1 шт. | — | |
|
| 50 | 90240-06146-00 | . .Pin, Clevis | 1 шт. | — | |
|
| 51 | 91401-20015-00 | . Pin, Cotter | 1 шт. | — | |
|
| 52 | 90201-210U0-00 | . .Washer, Plate | 1 шт. | — | |
|
| 53 | 90111-08002-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 54 | 5VN-27443-00-00 | Bracket 3 | 1 шт. | — | |
|
| 55 | 95607-08200-00 | .Nut, Self-Locking | 2 шт. | — | |
|
| 56 | 4WM-27311-00-00 | Stand, Side | 1 шт. | — | |
|
| 57 | 90387-1007K-00 | Collar | 1 шт. | — | |
|
| 58 | 90105-10778-00 | Bolt, Flange | 1 шт. | — | |
|
| 59 | 90185-10037-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 60 | 90506-29358-00 | Spring, Tension | 1 шт. | — | |
|
