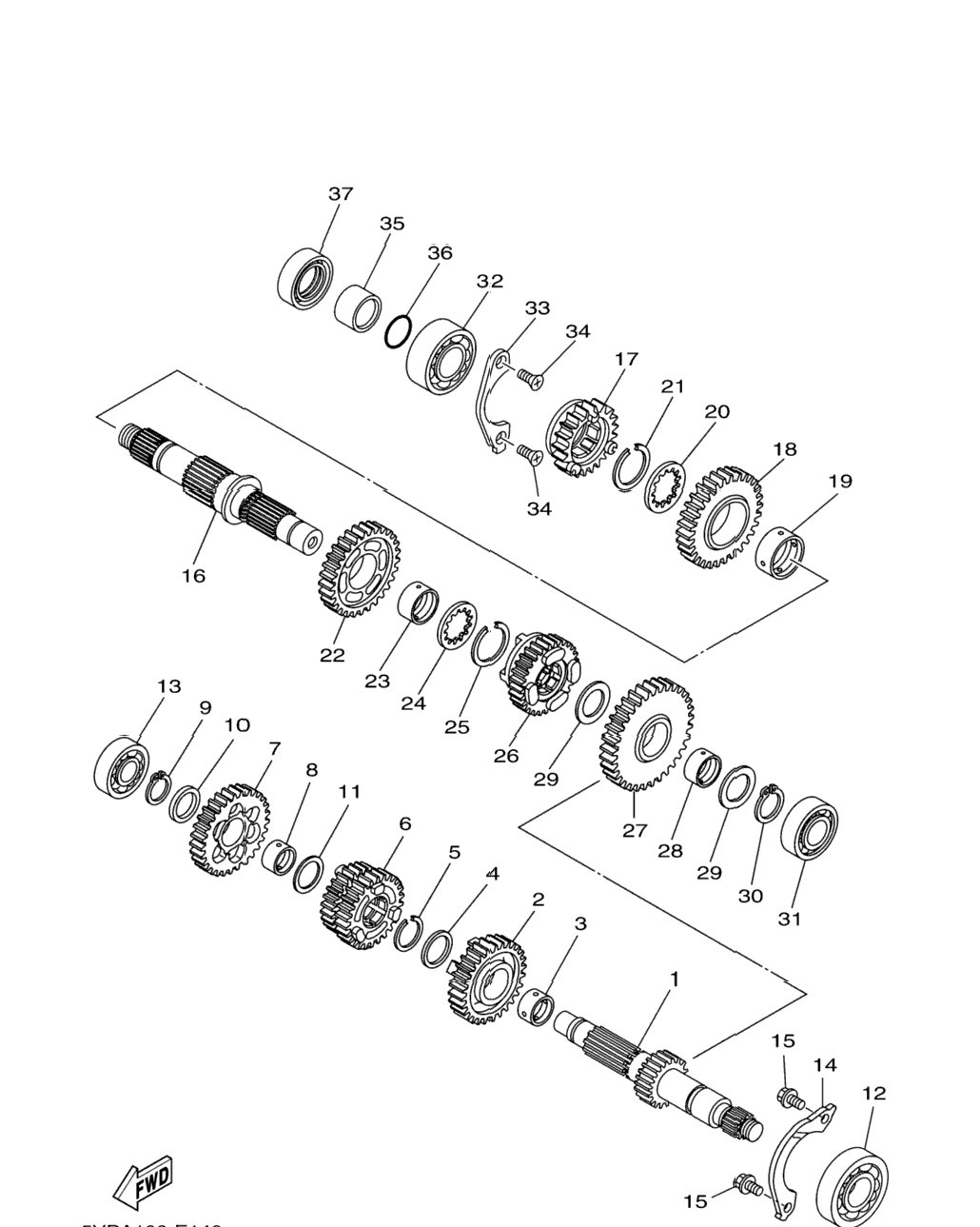

| 1 | 5PX-17411-30-00 | Axle, Main (16T) | 1 шт. | — | |
|
| 2 | 5VN-17141-10-00 | Gear, 4Th Pinion (32T) | 1 шт. | — | |
|
| 3 | 90387-28010-00 | Collar | 1 шт. | — | |
|
| 4 | 90209-25014-00 | Washer | 1 шт. | — | |
|
| 5 | 93440-28062-00 | Circlip | 1 шт. | — | |
|
| 6 | 5YU-17121-01-00 | Gear, 2Nd Pinion (19/25T) | 1 шт. | — | |
|
| 7 | 5VN-17151-10-00 | Gear, 5Th Pinion (28T) | 1 шт. | — | |
|
| 8 | 90387-23003-00 | Collar | 1 шт. | — | |
|
| 9 | 93410-23056-00 | .Circlip | 1 шт. | — | |
|
| 10 | 90201-232K5-00 | Washer, Plate | 1 шт. | — | |
|
| 11 | 90201-23014-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 93306-37806-00 | Bearing | 1 шт. | — | |
|
| 13 | 93306-30441-00 | Bearing | 1 шт. | — | |
|
| 14 | 5YU-15381-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 15 | 90105-06020-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 5PX-17421-30-00 | Axle, Drive | 1 шт. | — | |
|
| 17 | 5VN-17251-10-00 | Gear, 5Th Wheel (21T) | 1 шт. | — | |
|
| 18 | 5VN-17221-10-00 | Gear, 2Nd Wheel (30T) | 1 шт. | — | |
|
| 19 | 90387-350R5-00 | Collar | 1 шт. | — | |
|
| 20 | 90209-33008-00 | Washer | 1 шт. | — | |
|
| 21 | 93440-34025-00 | .Circlip | 1 шт. | — | |
|
| 22 | 5YU-17231-00-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 23 | 90387-31003-00 | Collar | 1 шт. | — | |
|
| 24 | 90209-28008-00 | Washer | 1 шт. | — | |
|
| 25 | 93440-31187-00 | Circlip | 1 шт. | — | |
|
| 26 | 5VN-17241-10-00 | Gear, 4Th Wheel (29T) | 1 шт. | — | |
|
| 27 | 5YU-17211-00-00 | Gear, 1St Wheel (38T) | 1 шт. | — | |
|
| 28 | 90387-25013-00 | Collar | 1 шт. | — | |
|
| 29 | 90201-25017-00 | Washer, Plate | 2 шт. | — | |
|
| 30 | 93410-25017-00 | Circlip | 1 шт. | — | |
|
| 31 | 93306-20550-00 | Bearing | 1 шт. | — | |
|
| 32 | 93305-20607-00 | Bearing | 1 шт. | — | |
|
| 33 | 5YU-15383-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 34 | 90151-06008-00 | Screw, Countersunk | 2 шт. | — | |
|
| 35 | 90387-3015P-00 | Collar | 1 шт. | — | |
|
| 36 | 93210-27672-00 | O-Ring | 1 шт. | — | |
|
| 37 | 93103-38184-00 | Oil Seal | 1 шт. | — | |
|
