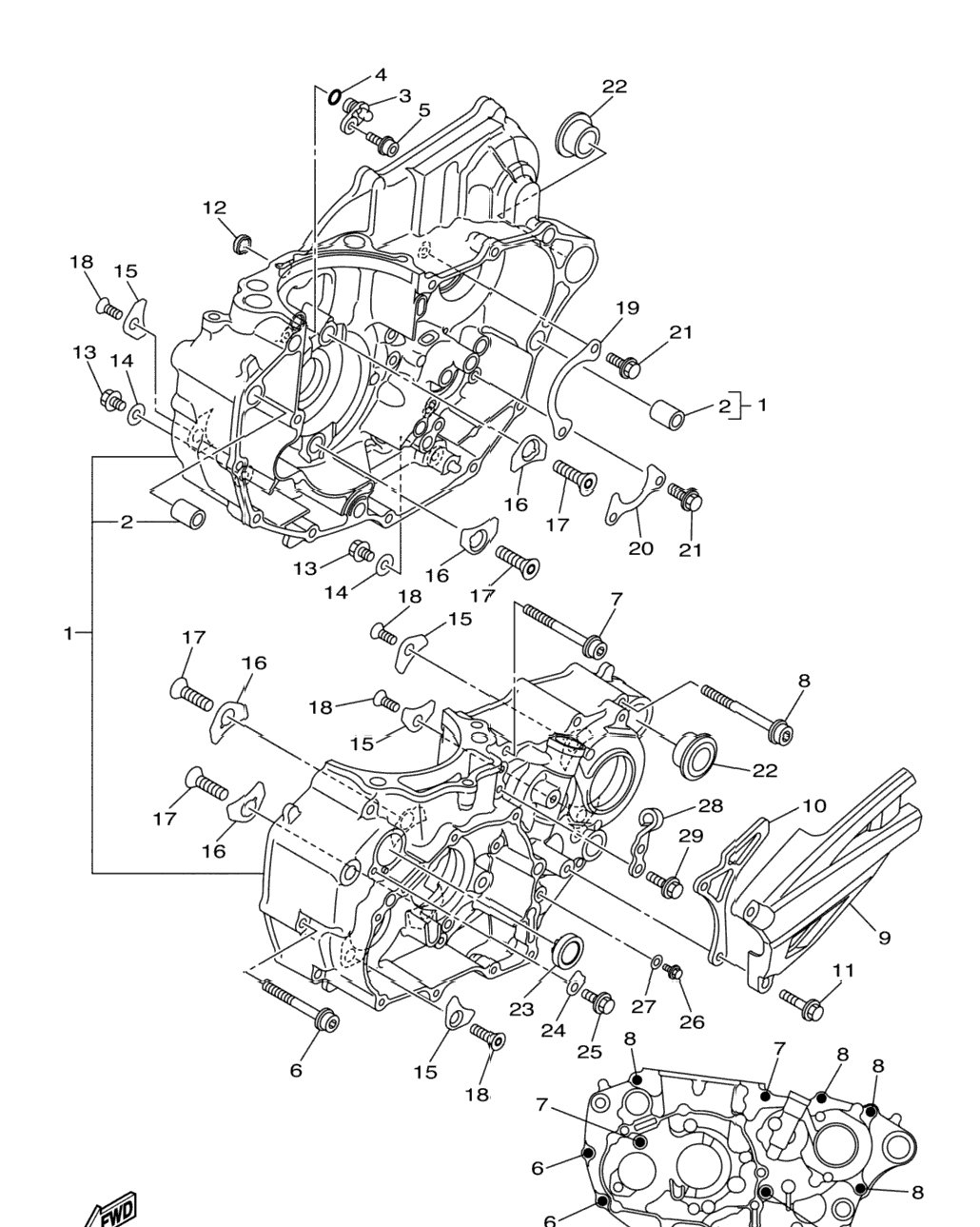

| 1 | 33D-15100-09-00 | Crankcase Assy | 1 шт. | — | |
|
| 2 | 99530-14016-00 | . Pin, Dowel | 2 шт. | — | |
|
| 3 | 17D-15155-00-00 | Nozzle 3 | 1 шт. | — | |
|
| 4 | 93210-07001-00 | O-Ring | 1 шт. | — | |
|
| 5 | 90110-05062-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 6 | 90110-06362-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 7 | 90110-06363-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 8 | 90110-06364-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 9 | 33D-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 10 | 2S2-17466-00-00 | Guide, Chain | 1 шт. | — | |
|
| 11 | 90105-06189-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 90430-08002-00 | Gasket | 1 шт. | — | |
|
| 13 | 95822-08016-00 | Bolt, Flange | 2 шт. | — | |
|
| 14 | 90430-08119-00 | Gasket INCL. IN BOTTOM END GASKET KIT | 2 шт. | — | |
|
| 15 | 4JT-15381-01-00 | .Plate, Bearing Cover | 4 шт. | — | |
|
| 16 | 18P-15383-00-00 | Plate, Bearing Cover | 4 шт. | — | |
|
| 17 | 90151-08003-00 | Screw, Countersunk | 4 шт. | — | |
|
| 18 | 90149-06074-00 | Screw | 4 шт. | — | |
|
| 19 | 2S2-15388-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 20 | 33D-18562-00-00 | Plate, Stopper 2 | 1 шт. | — | |
|
| 21 | 90105-06081-00 | Bolt, Flange | 4 шт. | — | |
|
| 22 | 90387-17015-00 | Collar | 2 шт. | — | |
|
| 23 | 3Y1-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 24 | 5XC-15118-00-00 | Holder | 1 шт. | — | |
|
| 26 | 95022-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 26 | 95022-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 27 | 90430-06014-00 | .Gasket | 1 шт. | — | |
|
| 28 | 33D-15441-10-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 29 | 90105-06099-00 | Bolt, Flange | 2 шт. | — | |
|
