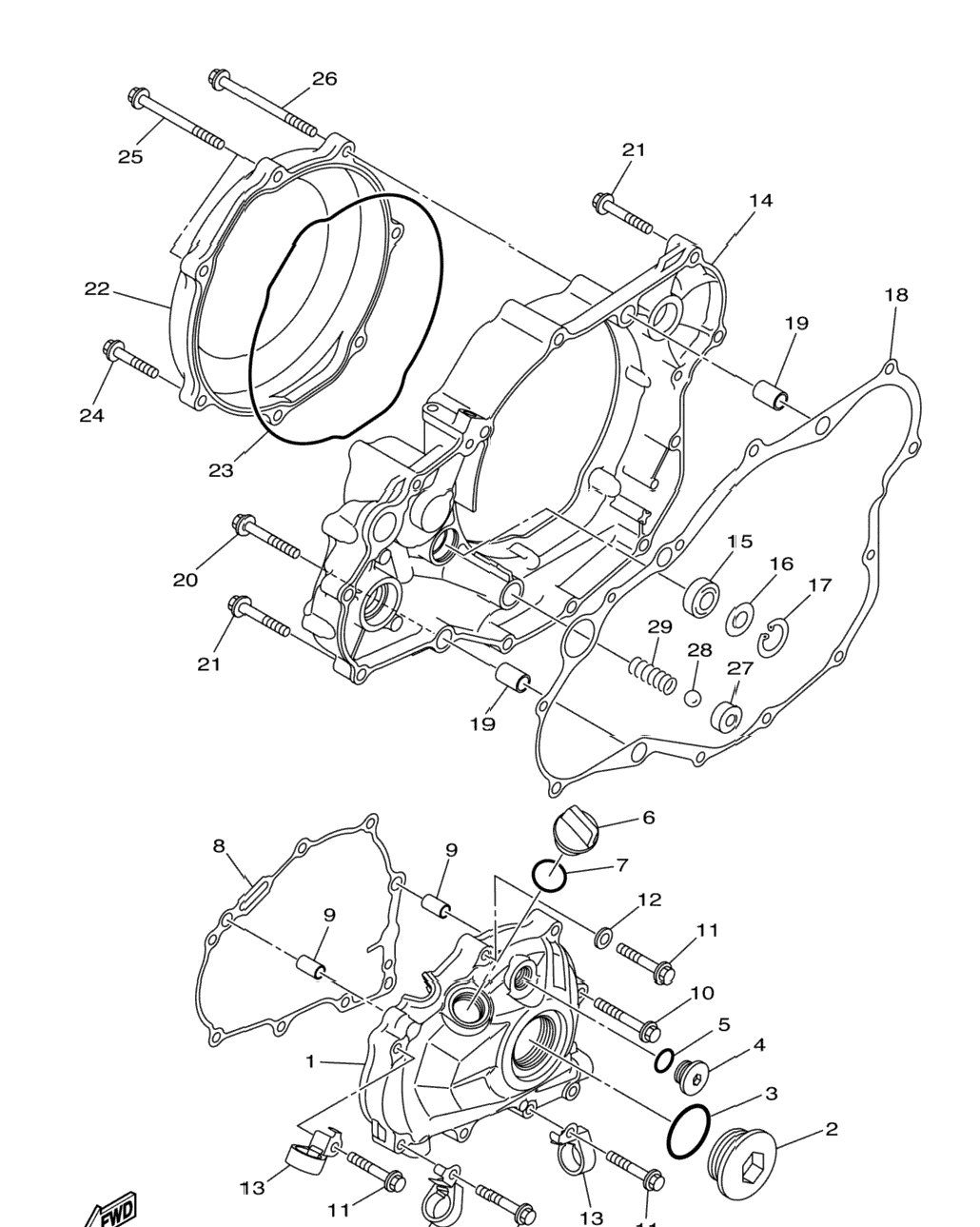

| 1 | 33D-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-36002-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-357A3-00 | O-Ring | 1 шт. | — | |
|
| 4 | 90340-14011-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 6 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 7 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 8 | 33D-15451-00-00 | Gasket, Crankcase Cover 1 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 9 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 12 | 90430-06014-00 | .Gasket INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 13 | 2S2-15378-00-00 | Holder | 3 шт. | — | |
|
| 14 | 33D-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 15 | 93101-14164-00 | Oil Seal | 1 шт. | — | |
|
| 16 | 90201-15701-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 17 | 99009-22500-00 | Circlip | 1 шт. | — | |
|
| 18 | 33D-15462-00-00 | Gasket, Crankcase Cover 3 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 19 | 91812-16001-00 | Pin, Dowel | 2 шт. | — | |
|
| 20 | 95022-06040-00 | Bolt, Flange | 1 шт. | — | |
|
| 20 | 95022-06040-00 | Bolt, Flange | 1 шт. | — | |
|
| 21 | 95022-06030-00 | Bolt, Flange | 7 шт. | — | |
|
| 21 | 95022-06030-00 | Bolt, Flange | 8 шт. | — | |
|
| 22 | 33D-15415-10-00 | Cover, 1 | 1 шт. | — | |
|
| 23 | 33D-15453-00-00 | Gasket INCL. IN CLUTCH AND BOTTOM END GASKET KITS | 1 шт. | — | |
|
| 24 | 95022-06025-00 | Bolt, Flange | 4 шт. | — | |
|
| 25 | 95022-06070-00 | Bolt, Flange | 2 шт. | — | |
|
| 26 | 95022-06080-00 | Bolt, Flange | 1 шт. | — | |
|
| 27 | 583-13113-00-00 | Seat, Check Ball | 1 шт. | — | |
|
| 28 | 93503-08007-00 | Ball | 1 шт. | — | |
|
| 29 | 90501-043E0-00 | Spring, Compression | 1 шт. | — | |
|
| 30 | 33D-W0002-00-00 | Bottom End Kit NOT SHOWN | 1 шт. | — | |
|
