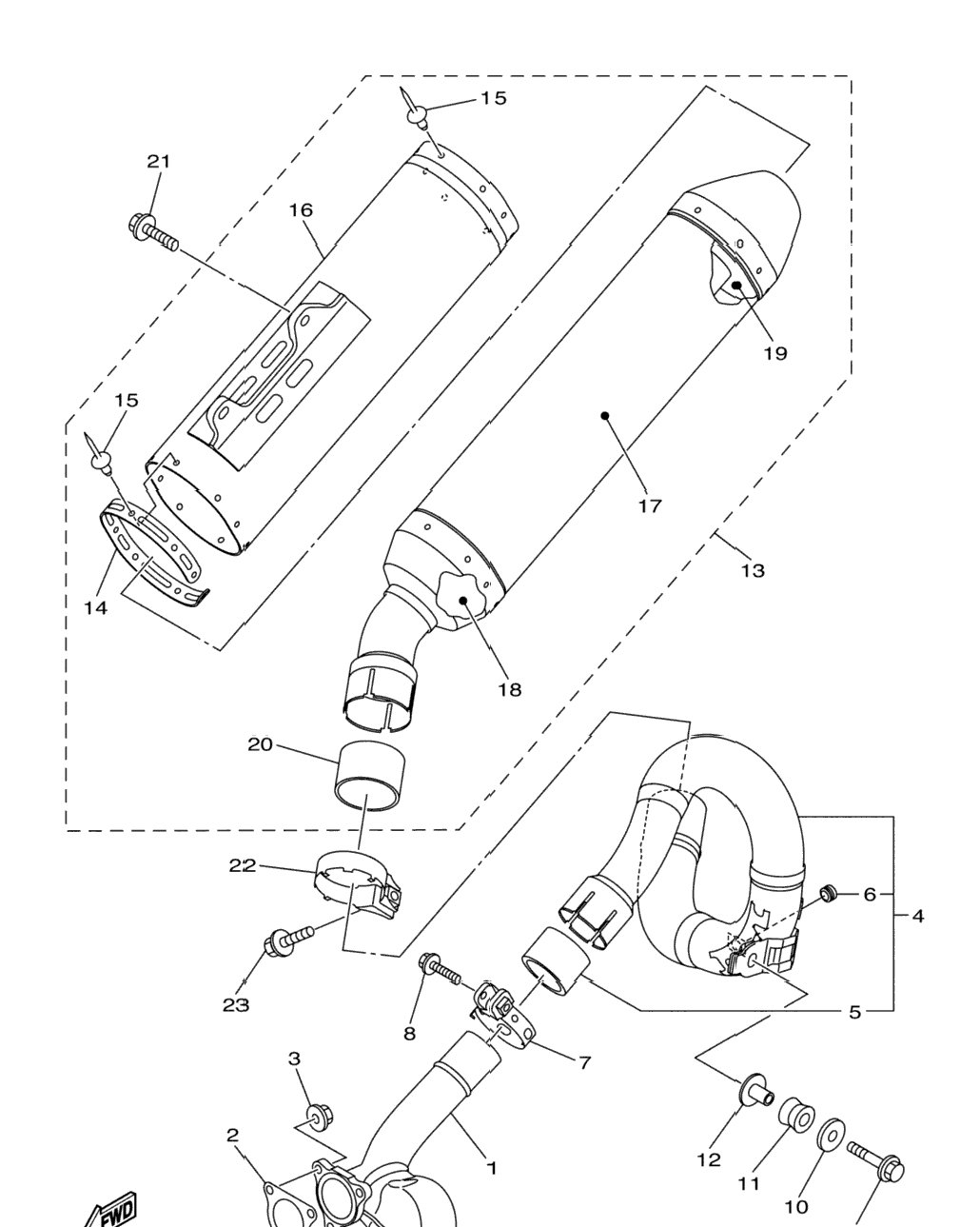

| 1 | 33D-14611-00-00 | Pipe, Exhaust 1 | 1 шт. | — | |
|
| 2 | 33D-14613-00-00 | Gasket, Exhaust Pipe INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 3 | 95704-06500-00 | Nut, Flange | 3 шт. | — | |
|
| 4 | 33D-14620-00-00 | Exhaust Pipe Assy 2 | 0 шт. | — | |
|
| 5 | 5PH-14714-00-00 | . .Gasket, Muffler | 1 шт. | — | |
|
| 6 | 2D1-14737-00-00 | . Damper, Muffler | 1 шт. | — | |
|
| 7 | 33D-14788-00-00 | Band, Silencer | 1 шт. | — | |
|
| 8 | 95024-08035-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 9 | 90105-08137-00 | Bolt, Flange | 1 шт. | — | |
|
| 10 | 90201-08061-00 | Washer, Plate | 1 шт. | — | |
|
| 11 | 5VY-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 12 | 90387-08081-00 | Collar | 1 шт. | — | |
|
| 13 | 33D-14750-10-00 | Silencer Assy | 1 шт. | — | |
|
| 14 | 33D-1476F-10-00 | . . Reinf., 3 | 1 шт. | — | |
|
| 15 | 90267-48084-00 | . .Rivet, Blind | 16 шт. | — | |
|
| 16 | 33D-1466G-10-00 | . .Body, Silencer | 1 шт. | — | |
|
| 17 | 2S2-1469A-10-00 | . .Fiber | 1 шт. | — | |
|
| 18 | 2S2-1469E-00-00 | . .Fiber | 1 шт. | — | |
|
| 19 | 2S2-1469F-00-00 | . .Fiber | 1 шт. | — | |
|
| 20 | 8GL-14714-00-00 | . Gasket, Muffler | 1 шт. | — | |
|
| 21 | 90119-08133-00 | Bolt, With Washer | 2 шт. | — | |
|
| 22 | 8GL-14789-00-00 | Band, Silencer | 1 шт. | — | |
|
| 23 | 95024-08025-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
