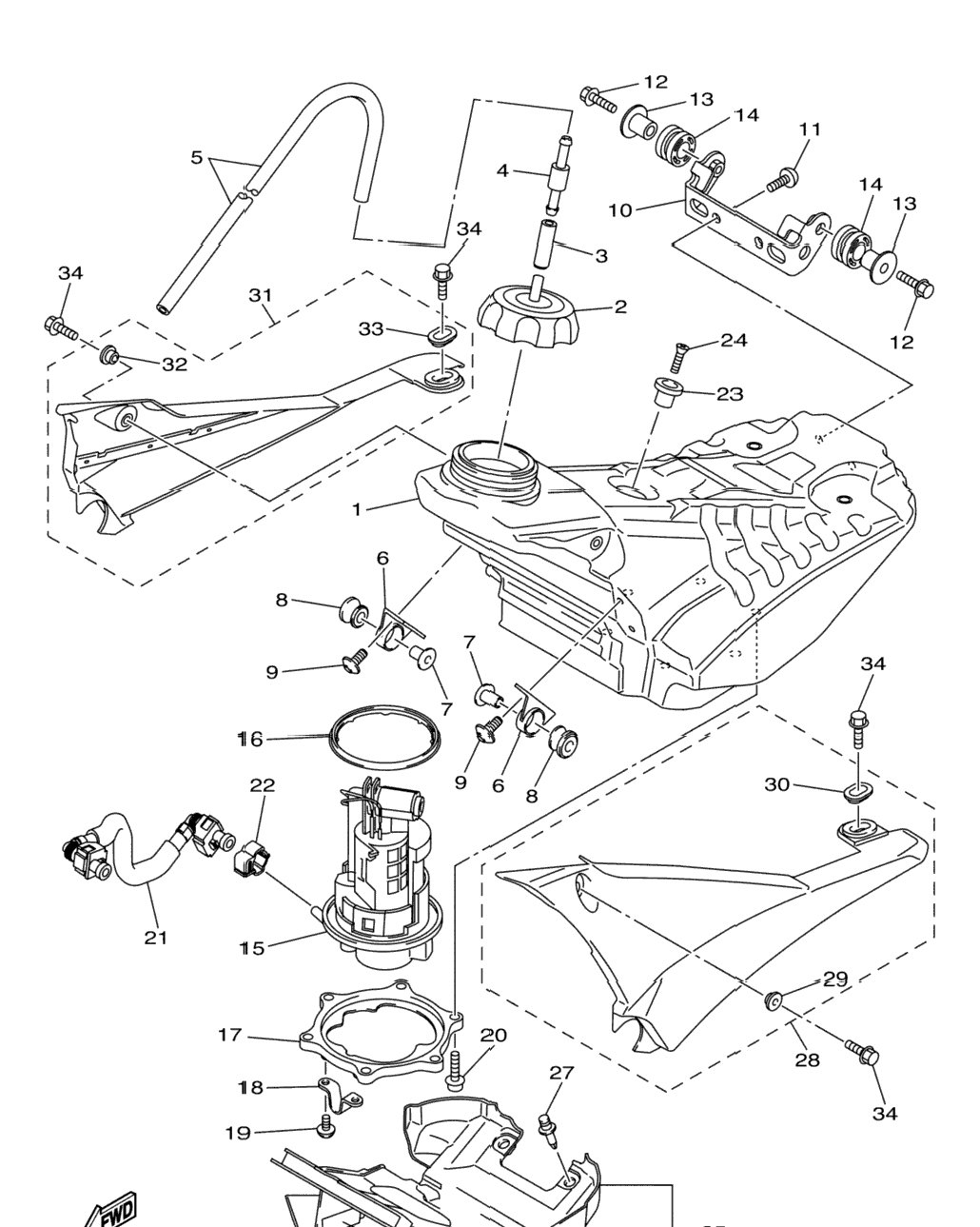

| 1 | 33D-24110-50-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 5NY-24610-10-00 | Cap Assy | 1 шт. | — | |
|
| 3 | 90445-09003-00 | Hose (L30) | 1 шт. | — | |
|
| 4 | 3XJ-24380-00-00 | Pipe Joint Assy | 1 шт. | — | |
|
| 5 | 90445-09005-00 | Hose | 0 шт. | — | |
|
| 6 | 33D-24144-00-00 | Holder, Damper | 2 шт. | — | |
|
| 7 | 90387-06091-00 | Collar | 2 шт. | — | |
|
| 8 | 90480-18549-00 | Grommet | 2 шт. | — | |
|
| 9 | 90111-06007-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 10 | 33D-2419A-00-00 | Holder | 1 шт. | — | |
|
| 11 | 90111-06007-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 12 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 90387-06236-00 | Collar | 2 шт. | — | |
|
| 14 | 90480-01023-00 | Grommet | 2 шт. | — | |
|
| 15 | 33D-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 16 | 33D-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 17 | 33D-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 18 | 33D-24192-00-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 19 | 90154-05012-00 | Screw, Binding | 2 шт. | — | |
|
| 20 | 90110-05058-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 21 | 33D-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 22 | 33D-24135-00-00 | Clamp 1 | 1 шт. | — | |
|
| 23 | 4EW-2412F-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 24 | 98702-06025-00 | Screw, Flat Head | 1 шт. | — | |
|
| 25 | 33D-24217-00-00 | Cover | 1 шт. | — | |
|
| 26 | 33D-24665-00-00 | . .Damper | 1 шт. | — | |
|
| 27 | 90269-07001-00 | Rivet | 2 шт. | — | |
|
| 28 | 33D-24106-10-00 | Tank Side Cover Assy 1 UR FOR PWS1 | 0 шт. | — | |
|
| 29 | 33D-24106-50-00 | Tank Side Cover Assy 1 UR FOR DPBSE | 1 шт. | — | |
|
| 30 | 90387-06009-00 | . Collar | 1 шт. | — | |
|
| 31 | 5XC-21749-90-00 | . Collar | 1 шт. | — | |
|
| 32 | 33D-24108-50-00 | Tank Side Cover Assy 2 UR FOR DPBSE | 1 шт. | — | |
|
| 33 | 33D-24108-10-00 | Tank Side Cover Assy 2 UR FOR PWS1 | 0 шт. | — | |
|
| 34 | 90387-06009-00 | . Collar | 1 шт. | — | |
|
| 35 | 5XC-21749-90-00 | . Collar | 1 шт. | — | |
|
| 36 | 90105-06064-00 | .Bolt, Flange | 4 шт. | — | |
|
