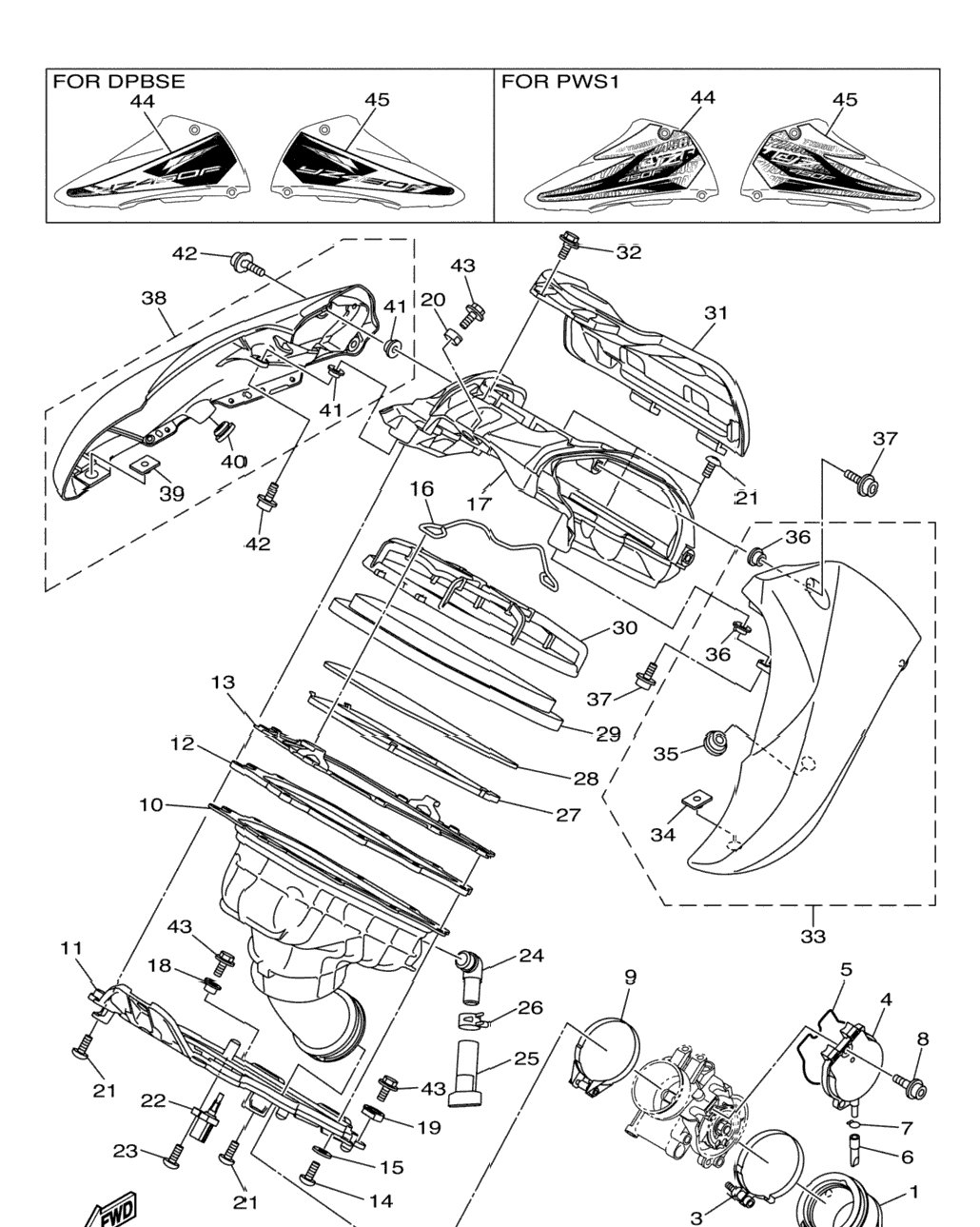

| 1 | 33D-13597-00-00 | Joint, Carburetor 3 | 1 шт. | — | |
|
| 2 | 91312-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 3 | 90450-60004-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 4 | 33D-14293-00-00 | Cover 1 | 1 шт. | — | |
|
| 5 | 33D-14227-00-00 | Washer | 1 шт. | — | |
|
| 6 | 33D-14987-00-00 | Hose | 1 шт. | — | |
|
| 7 | 3TJ-14137-40-00 | .Clip | 1 шт. | — | |
|
| 8 | 33D-14428-00-00 | Bolt | 2 шт. | — | |
|
| 9 | 90450-58007-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 10 | 33D-14454-00-00 | Joint | 1 шт. | — | |
|
| 11 | 33D-14477-00-00 | Plate | 1 шт. | — | |
|
| 12 | 33D-14462-00-00 | Seal | 1 шт. | — | |
|
| 13 | 33D-14459-00-00 | Holder, Guide | 1 шт. | — | |
|
| 14 | 90111-04008-00 | Bolt, Hex. Socket Button | 9 шт. | — | — |
|
| 15 | 90201-04030-00 | Washer, Plate | 9 шт. | — | |
|
| 16 | 33D-1441G-00-00 | Binder 1 | 1 шт. | — | |
|
| 17 | 33D-14417-00-00 | Cover 1 | 1 шт. | — | |
|
| 18 | 90387-06009-00 | Collar | 1 шт. | — | |
|
| 19 | 33D-14495-00-00 | Collar | 1 шт. | — | |
|
| 20 | 33D-14449-00-00 | Collar | 1 шт. | — | |
|
| 21 | 97702-50516-00 | Screw, Tapping | 9 шт. | — | |
|
| 22 | 8FP-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 23 | 97702-50516-00 | Screw, Tapping | 1 шт. | — | |
|
| 24 | 5TJ-14419-00-00 | Pipe | 1 шт. | — | |
|
| 25 | 33D-1443E-00-00 | Pipe, Drain | 1 шт. | — | |
|
| 26 | 90467-16098-00 | Clip | 1 шт. | — | |
|
| 27 | 33D-1441B-00-00 | Net 1 | 1 шт. | — | |
|
| 28 | 33D-14461-00-00 | Element, Air Cleaner 2 | 1 шт. | — | |
|
| 29 | 33D-14451-00-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 30 | 33D-14458-00-00 | Guide | 1 шт. | — | |
|
| 31 | 33D-14480-00-00 | Cover Sub Assy | 1 шт. | — | |
|
| 32 | 90105-05028-00 | Bolt, Flange | 2 шт. | — | |
|
| 33 | 33D-14437-00-00 | Duct UR FOR DPBSE | 1 шт. | — | |
|
| 34 | 33D-14437-10-00 | Duct UR FOR PWS1 | 10 шт. | — | |
|
| 35 | 90179-06055-00 | . Nut | 1 шт. | — | |
|
| 36 | 33D-14425-00-00 | . .Damper 1 | 1 шт. | — | |
|
| 37 | 90387-06009-00 | . Collar | 3 шт. | — | |
|
| 38 | 90110-06245-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 39 | 33D-1443A-10-00 | Duct UR FOR PWS1 | 0 шт. | — | |
|
| 40 | 33D-1443A-00-00 | Duct UR FOR DPBSE | 1 шт. | — | |
|
| 41 | 90179-06055-00 | . Nut | 1 шт. | — | |
|
| 42 | 33D-14425-00-00 | . .Damper 1 | 1 шт. | — | |
|
| 43 | 90387-06009-00 | . Collar | 3 шт. | — | |
|
| 44 | 90110-06245-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 45 | 90105-06170-00 | Bolt, Flange | 3 шт. | — | |
|
| 46 | 33D-2173E-60-00 | Graphic 1 UR FOR PWS1 | 0 шт. | — | — |
|
| 47 | 33D-2173E-50-00 | Graphic 1 UR FOR DPBSE | 1 шт. | — | — |
|
| 48 | 33D-2173F-50-00 | Graphic 2 UR FOR DPBSE | 1 шт. | — | — |
|
| 49 | 33D-2173F-60-00 | Graphic 2 UR FOR PWS1 | 0 шт. | — | — |
|
