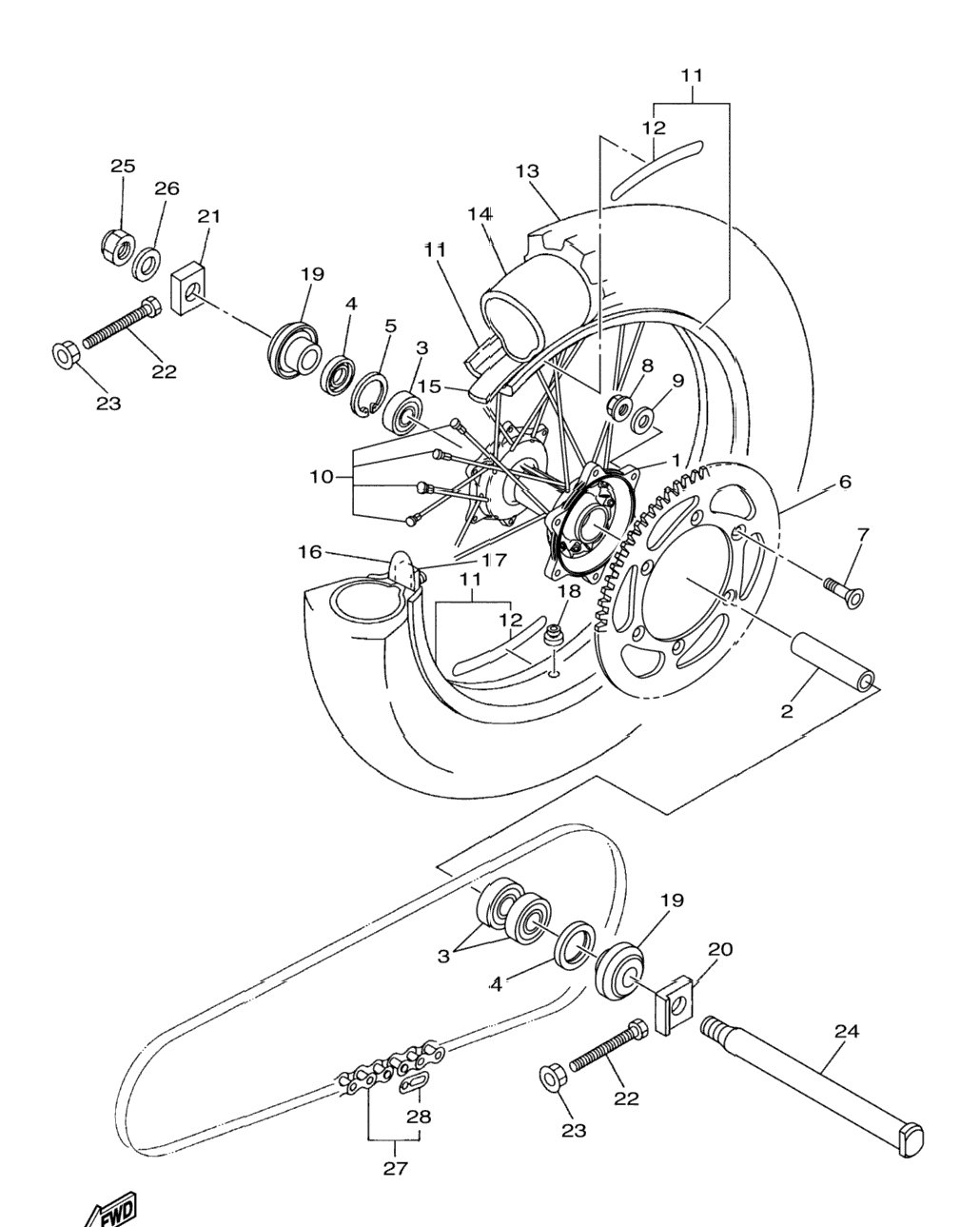

| 1 | 17D-25311-00-00 | Hub, Rear | 1 шт. | — | |
|
| 2 | 17D-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 3 | 93306-90510-00 | Bearing | 3 шт. | — | |
|
| 4 | 93102-32337-00 | Oil Seal | 2 шт. | — | |
|
| 5 | 99009-42700-00 | Circlip | 1 шт. | — | |
|
| 6 | 17D-25449-50-00 | Sprocket, Driven (49T) AP | 1 шт. | — | |
|
| 7 | 17D-25447-50-00 | Sprocket, Driven (47T) AP | 1 шт. | — | |
|
| 8 | 17D-25448-50-00 | Sprocket, Driven (48T) STD | 1 шт. | — | |
|
| 9 | 17D-25451-50-00 | Sprocket, Driven (51T) AP | 1 шт. | — | |
|
| 10 | 17D-25452-50-00 | Sprocket, Driven (52T) AP | 1 шт. | — | |
|
| 11 | 17D-25450-50-00 | Sprocket, Driven (50T) AP | 1 шт. | — | |
|
| 12 | 90109-08078-00 | Bolt | 6 шт. | — | |
|
| 13 | 90185-08008-00 | Nut, Self-Locking | 6 шт. | — | |
|
| 14 | 90201-08048-00 | Washer, Plate | 6 шт. | — | |
|
| 15 | 34P-25304-00-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 16 | 94421-19013-00 | Rim (2.15-19) | 1 шт. | — | |
|
| 17 | 17D-2531B-00-00 | . .Emblem, Wheel | 2 шт. | — | |
|
| 18 | 94112-19009-00 | Tire (120/80-19 63M Mx51) DUNLOP | 0 шт. | — | |
|
| 19 | 94211-19273-00 | Tube (110/90-19 M/C Tr4) DUNLOP | 1 шт. | — | |
|
| 20 | 94311-19155-00 | Band, Rim (2.5-19) DUNLOP | 1 шт. | — | |
|
| 21 | 3JE-25394-00-00 | Spacer, Bead | 1 шт. | — | |
|
| 22 | 4XM-25364-00-00 | Damper | 1 шт. | — | |
|
| 23 | 90480-08608-00 | Grommet | 1 шт. | — | |
|
| 24 | 17D-2530S-00-00 | Collar Assy | 2 шт. | — | |
|
| 25 | 17D-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 26 | 33D-25389-00-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 27 | 90101-08006-00 | Bolt | 2 шт. | — | |
|
| 28 | 90179-08019-00 | Nut | 2 шт. | — | |
|
| 29 | 17D-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 30 | 90185-22011-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 31 | 90201-22023-00 | Washer, Plate | 1 шт. | — | |
|
| 32 | 9Y582-28113-00 | Chain (Did520dma2-114Ll) | 1 шт. | — | |
|
| 33 | 94682-28001-00 | . . Joint, Chain (Did520dm G&B- | 1 шт. | — | |
|
