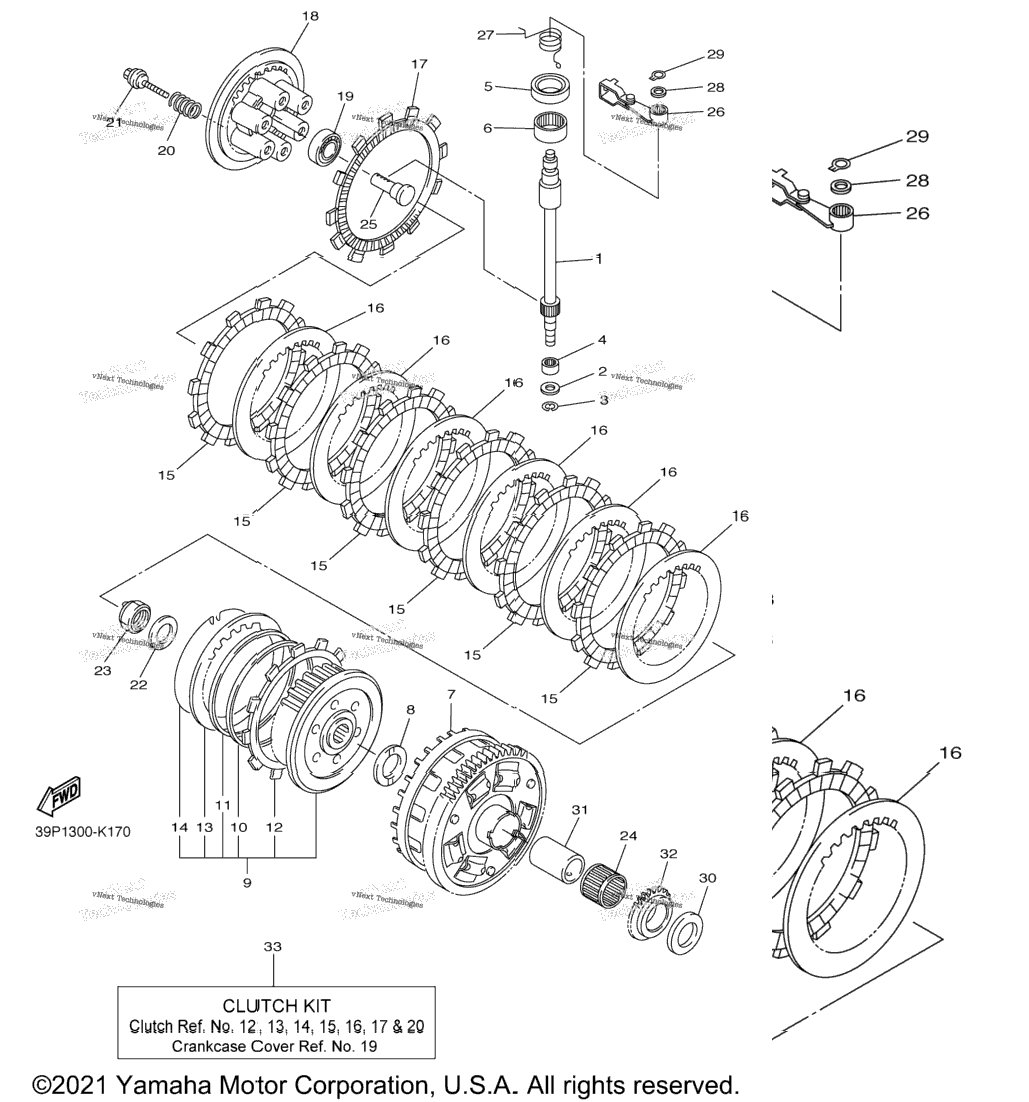

| 1 | 2D1-16382-00-00 | .Axle, Push Lever | 1 шт. | — | |
|
| 2 | 92907-08600-00 | .Washer, Plate | 1 шт. | — | |
|
| 3 | 99001-07600-00 | .Circlip | 1 шт. | — | |
|
| 4 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 5 | 93102-15212-00 | .Oil Seal | 1 шт. | — | |
|
| 6 | 93315-31502-00 | Bearing | 1 шт. | — | |
|
| 7 | 5VY-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 8 | 5VY-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 9 | 39P-16370-01-00 | Clutch Boss Assy | 1 шт. | — | — |
|
| 10 | 5VY-16384-00-00 | . .Plate, Seat | 1 шт. | — | |
|
| 11 | 5VY-16383-00-00 | . . Spring, Cushion | 1 шт. | — | |
|
| 12 | 5VY-16331-00-00 | . Plate, Friction 2 INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 14 | 4X7-16385-00-00 | . . Ring Set INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 15 | 5VY-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 6 шт. | — | |
|
| 16 | 5VY-16325-00-00 | . Plate, Clutch 2 INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 16 | 5VY-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH KIT | 6 шт. | — | |
|
| 17 | 5VY-16330-00-00 | Plate, Friction 2 INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 18 | 5VY-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 19 | 93306-00304-00 | .Bearing | 1 шт. | — | |
|
| 20 | 90501-230A0-00 | Spring, Compression INCL. IN CLUTCH KIT | 6 шт. | — | |
|
| 21 | 90119-06257-00 | Bolt, With Washer | 6 шт. | — | |
|
| 22 | 90208-20001-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 23 | 90179-20007-00 | Nut | 1 шт. | — | |
|
| 24 | 93310-232R9-00 | Bearing | 1 шт. | — | |
|
| 25 | 4XV-16356-01-00 | Rod, Push 1 | 1 шт. | — | |
|
| 26 | 5VY-16340-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 27 | 90508-18051-00 | Spring, Torsion | 1 шт. | — | |
|
| 28 | 90201-10029-00 | Washer, Plate | 1 шт. | — | |
|
| 29 | 99009-10400-00 | Circlip | 1 шт. | — | |
|
| 30 | 5VY-16164-00-00 | Plate, Thrust 2 | 1 шт. | — | |
|
| 31 | 5VY-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 32 | 5VY-13354-00-00 | Sprocket, Drive | 1 шт. | — | |
|
| 33 | 39P-W001G-00-00 | Clutch Kit | 1 шт. | — | |
|
