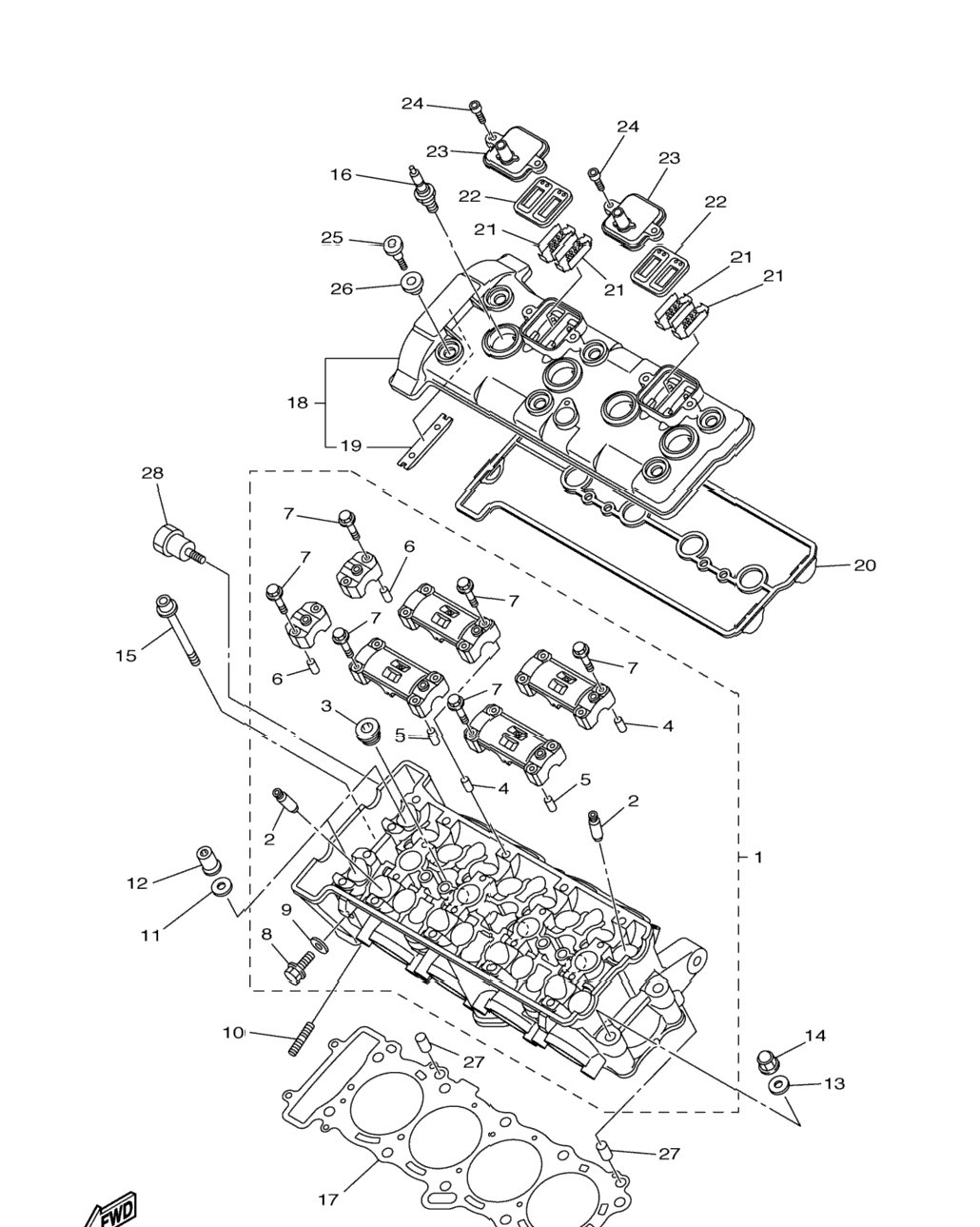

| 1 | 39P-11101-09-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 20S-11134-10-00 | . .Guide, Valve 2 | 16 шт. | — | |
|
| 3 | 90340-18002-00 | . .Plug, Straight Screw | 3 шт. | — | |
|
| 6 | 91808-16023-00 | . .Pin, Dowel | 4 шт. | — | |
|
| 6 | 91808-16023-00 | . .Pin, Dowel | 4 шт. | — | |
|
| 6 | 91808-16023-00 | . .Pin, Dowel | 4 шт. | — | |
|
| 7 | 90105-06027-00 | . .Bolt, Flange | 20 шт. | — | |
|
| 8 | 95024-06012-00 | . Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 9 | 90430-06014-00 | . .Gasket | 1 шт. | — | |
|
| 10 | 90116-08087-00 | .Bolt, Stud | 8 шт. | — | |
|
| 12 | 90179-10029-00 | Nut | 8 шт. | — | |
|
| 13 | 90201-10035-00 | Washer, Plate | 8 шт. | — | |
|
| 13 | 90201-10035-00 | Washer, Plate | 2 шт. | — | |
|
| 14 | 90176-10075-00 | Nut, Crown | 2 шт. | — | |
|
| 15 | 90110-06212-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 16 | 94701-00318-00 | Plug, Spark (Ngk R Cr9e) | 4 шт. | — | |
|
| 17 | 39P-11181-00-00 | Gasket, Cylinder Head 1 | 1 шт. | — | |
|
| 18 | 4C8-11191-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 19 | 5BE-12241-00-00 | . Guide, Stopper 2 | 1 шт. | — | |
|
| 20 | 4C8-11193-00-00 | Gasket, Head Cover 1 | 1 шт. | — | |
|
| 21 | 5VY-1482K-00-00 | Plate | 4 шт. | — | |
|
| 22 | 5SL-14890-10-00 | Reed Valve Assy | 2 шт. | — | |
|
| 23 | 5VY-14899-01-00 | Cap, Case | 2 шт. | — | |
|
| 24 | 90110-06175-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 25 | 90109-066F0-00 | Bolt | 6 шт. | — | |
|
| 26 | 5VY-1111G-00-00 | Rubber, Mount 1 | 6 шт. | — | |
|
| 27 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 28 | 2D1-11026-00-00 | Bolt, Mount | 1 шт. | — | |
|
