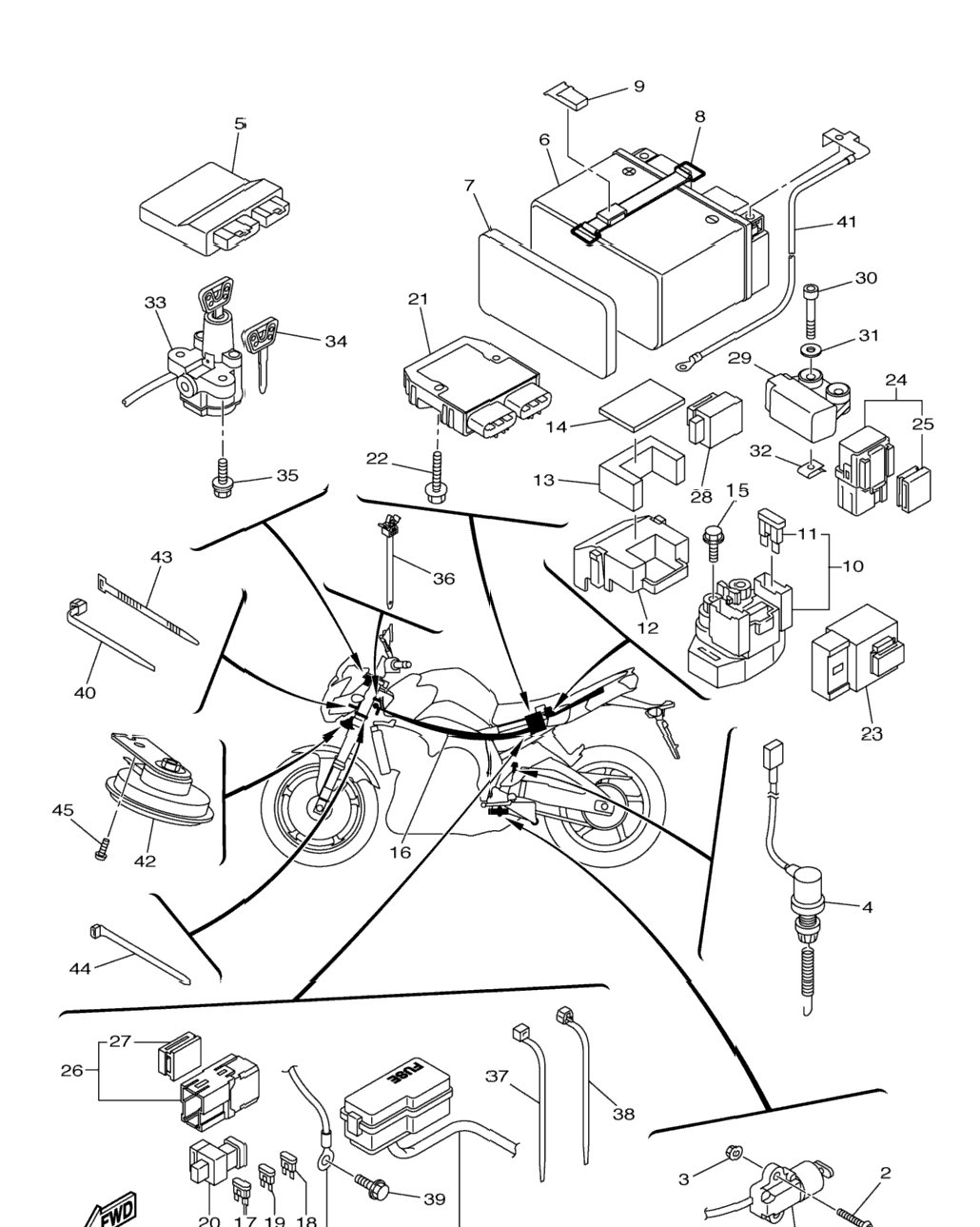

| 1 | 23P-82566-60-00 | Switch, Side Stand | 1 шт. | — | |
|
| 2 | 92012-05030-00 | Bolt, Button Head | 2 шт. | — | |
|
| 3 | 95602-05200-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 4 | 39P-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 5 | 39P-8591A-50-00 | Engine Control Unit Assy | 1 шт. | — | — |
|
| 6 | 5VY-82100-00-00 | Battery Assy (Yuasa Ytz10s) | 1 шт. | — | |
|
| 7 | 39P-8246K-00-00 | Spacer | 1 шт. | — | |
|
| 8 | 2D1-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 9 | 5YU-2162A-00-00 | Hook | 1 шт. | — | |
|
| 10 | 2C0-81940-00-00 | Starter Relay Assy (Rc19-054) | 1 шт. | — | |
|
| 11 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 шт. | — | |
|
| 12 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 13 | 39P-82176-00-00 | Damper | 1 шт. | — | |
|
| 14 | 39P-82157-00-00 | Damper | 1 шт. | — | |
|
| 15 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 39P-82590-21-00 | Wire Harness Assy FOR CALIFORNIA | 0 шт. | — | — |
|
| 17 | 39P-82590-11-00 | Wire Harness Assy | 1 шт. | — | — |
|
| 18 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 2 шт. | — | |
|
| 19 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 5 шт. | — | |
|
| 20 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 2 шт. | — | |
|
| 21 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 22 | 1D7-81960-01-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 23 | 95822-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 24 | 5VK-81950-40-00 | Relay Assy (5Vk-40) | 1 шт. | — | |
|
| 25 | 5JJ-81950-20-00 | Relay Assy (5Jj-20) | 1 шт. | — | |
|
| 26 | 5JJ-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 27 | 5JJ-81950-20-00 | Relay Assy (5Jj-20) | 1 шт. | — | |
|
| 28 | 5JJ-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 29 | 4MY-83350-01-00 | .Flasher Relay Assy | 1 шт. | — | |
|
| 30 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 31 | 91312-04025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 32 | 90201-04030-00 | Washer, Plate | 2 шт. | — | |
|
| 33 | 90183-04039-00 | Nut, Spring | 2 шт. | — | |
|
| 34 | 39P-82501-10-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 35 | 4BH-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 36 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 37 | 90464-12036-00 | Clamp | 1 шт. | — | |
|
| 38 | 90464-13073-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 39 | 90464-13073-00 | Clamp | 3 шт. | — | |
|
| 40 | 90464-15195-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 90464-15195-00 | Clamp | 2 шт. | — | |
|
| 42 | 91380-06010-00 | Bolt | 1 шт. | — | |
|
| 43 | 90464-13077-00 | Clamp | 1 шт. | — | |
|
| 44 | 2D1-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 45 | 39P-83371-00-00 | Horn | 1 шт. | — | |
|
| 46 | 90465-10098-00 | Clamp | 1 шт. | — | |
|
| 47 | 90464-59001-00 | Clamp | 1 шт. | — | |
|
| 48 | 92012-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
