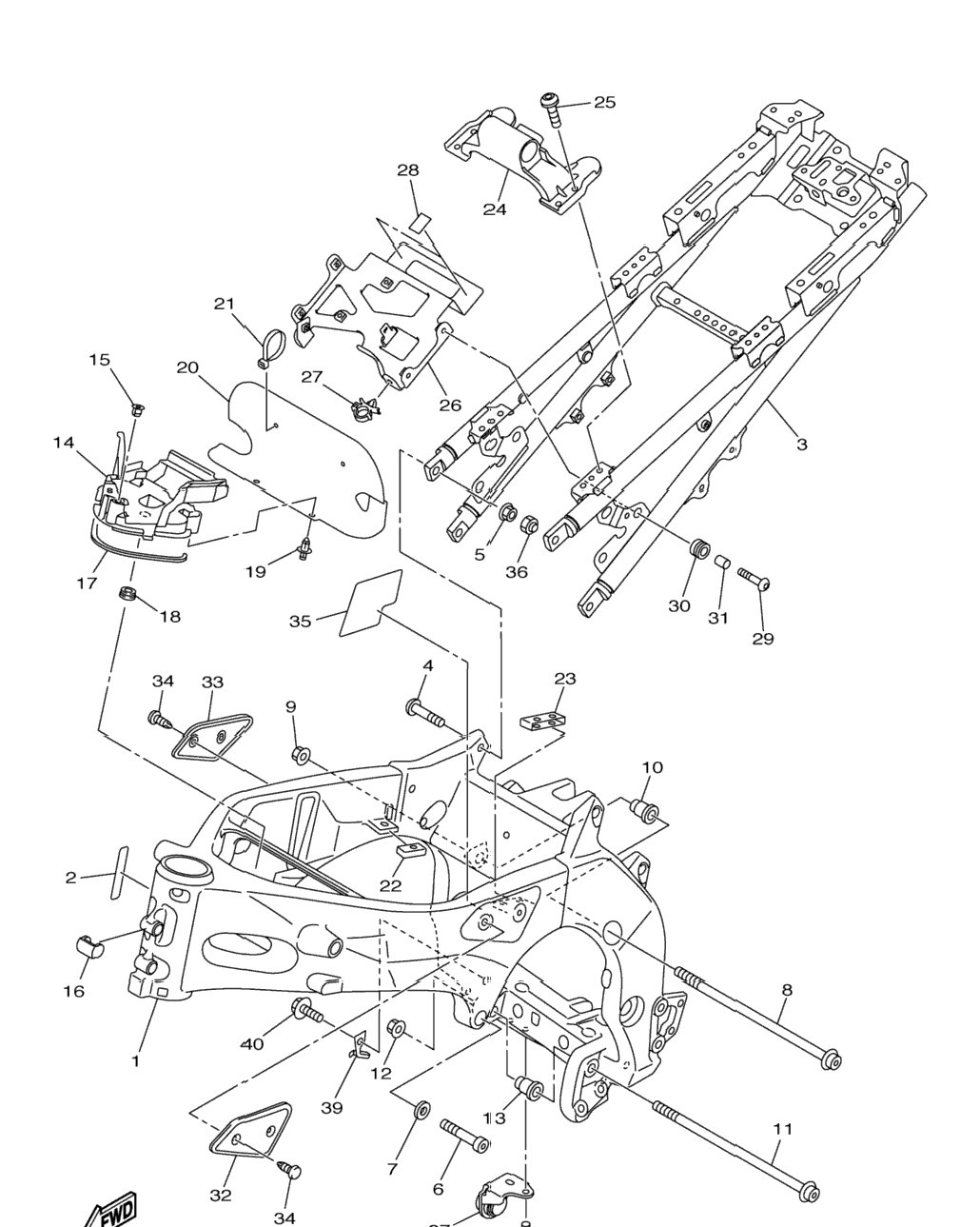

| 1 | 2D1-21110-03-P0 | Frame Comp MBL2 | 1 шт. | — | |
|
| 2 | 2D1-21110-23-P0 | Frame Comp MBL2 FOR CAL | 0 шт. | — | |
|
| 3 | 2D1-2197E-00-00 | Protector, Frame Fr | 1 шт. | — | |
|
| 4 | 39P-21190-00-00 | Rear Frame Comp | 1 шт. | — | |
|
| 5 | 90157-10001-00 | Screw, Pan Head | 4 шт. | — | |
|
| 6 | 95602-10200-00 | Nut, S/L Flange | 4 шт. | — | |
|
| 7 | 91314-10040-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 8 | 90201-10020-00 | Washer, Plate | 2 шт. | — | |
|
| 9 | 90110-10024-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 10 | 90179-10025-00 | Nut | 1 шт. | — | |
|
| 11 | 4C8-21495-00-00 | Bolt, Engine Adjusting | 1 шт. | — | |
|
| 12 | 90110-10024-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 13 | 90179-10025-00 | Nut | 1 шт. | — | |
|
| 14 | 4C8-21495-00-00 | Bolt, Engine Adjusting | 1 шт. | — | |
|
| 15 | 39P-2117N-00-00 | Cover 3 | 1 шт. | — | |
|
| 16 | 90269-08058-00 | Rivet | 1 шт. | — | |
|
| 17 | 2D1-21399-00-00 | Cap | 1 шт. | — | |
|
| 18 | 2D1-2174Y-00-00 | Damper | 1 шт. | — | |
|
| 19 | 90480-01333-00 | Grommet | 0 шт. | — | |
|
| 20 | 90269-06001-00 | Rivet | 2 шт. | — | |
|
| 21 | 2D1-2117G-00-00 | Protector | 0 шт. | — | |
|
| 22 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 23 | 2D1-24184-00-00 | Damper, Locating 4 | 1 шт. | — | |
|
| 24 | 2D1-24185-00-00 | Damper, Locating 5 | 1 шт. | — | |
|
| 25 | 39P-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 26 | 90111-06038-00 | Bolt,Hex. Socket Button | 4 шт. | — | |
|
| 27 | 39P-21287-00-00 | Bracket, Regulator | 1 шт. | — | |
|
| 28 | 90464-16006-00 | Clamp | 1 шт. | — | |
|
| 29 | 5YU-21639-00-00 | Damper 2 | 2 шт. | — | |
|
| 30 | 92012-06020-00 | Bolt, Button Head | 4 шт. | — | |
|
| 31 | 90480-14030-00 | Grommet | 4 шт. | — | |
|
| 32 | 90387-065L7-00 | Collar | 4 шт. | — | |
|
| 33 | 2D1-24129-00-00 | Cover, Side 1 | 1 шт. | — | |
|
| 34 | 2D1-24139-00-00 | Cover, Side 2 | 1 шт. | — | |
|
| 35 | 90269-06003-00 | Rivet | 4 шт. | — | |
|
| 36 | 39P-21575-00-00 | Seal 1 | 1 шт. | — | |
|
| 37 | 5YU-2143A-00-00 | Cap FOR CALIFORNIA | 0 шт. | — | |
|
| 38 | 39P-27425-00-00 | Bracket, Footrest 2 | 1 шт. | — | |
|
| 39 | 95812-08016-00 | Bolt, Flange | 2 шт. | — | |
|
| 40 | 39P-27267-00-00 | Guide, Wire | 1 шт. | — | |
|
| 41 | 95022-10016-00 | Bolt, Flange | 1 шт. | — | |
|
