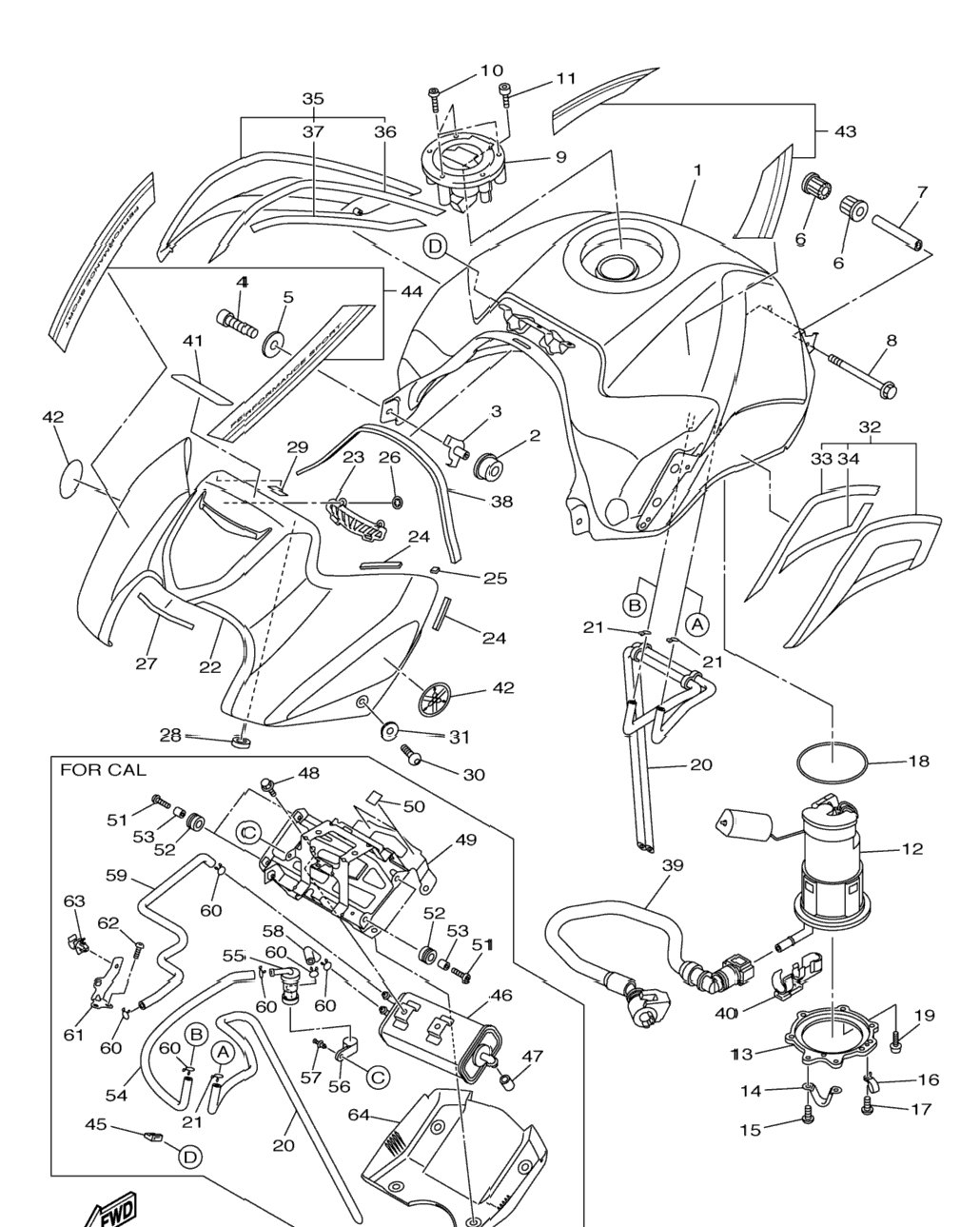

| 1 | 39P-24110-00-P4 | Fuel Tank Comp MNM3 | 1 шт. | — | |
|
| 2 | 5VY-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 3 | 2D1-2412G-00-00 | Collar | 2 шт. | — | |
|
| 4 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 5 | 90201-06086-00 | Washer, Plate | 2 шт. | — | |
|
| 6 | 5SL-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 7 | 90387-06055-00 | Collar | 1 шт. | — | |
|
| 8 | 95022-06090-00 | Bolt, Flange | 1 шт. | — | |
|
| 9 | 39P-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 10 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 11 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 12 | 39P-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 13 | 39P-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 14 | 2D1-24192-00-00 | .Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 15 | 98902-05008-00 | Screw, Bind | 2 шт. | — | |
|
| 16 | 90461-10010-00 | Clamp | 1 шт. | — | |
|
| 17 | 90154-05035-00 | Screw, Binding | 1 шт. | — | |
|
| 18 | 19B-24486-01-00 | O-Ring | 1 шт. | — | |
|
| 19 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 20 | 39P-24317-00-00 | Pipe 7 | 1 шт. | — | |
|
| 21 | 39P-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 шт. | — | |
|
| 22 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 23 | 90467-09006-00 | Clip | 2 шт. | — | |
|
| 24 | 39P-2171A-10-P5 | Cover, Top MNM3 | 1 шт. | — | — |
|
| 25 | 39P-241B1-00-00 | Cover, Tank | 1 шт. | — | |
|
| 26 | 4XV-2834E-00-00 | .Damper 3 | 4 шт. | — | |
|
| 27 | 14B-24181-00-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 28 | 90183-05M02-00 | Nut, Spring | 2 шт. | — | |
|
| 29 | 39P-28307-00-00 | Seal | 1 шт. | — | |
|
| 30 | 4FM-28372-00-00 | Damper | 1 шт. | — | |
|
| 31 | 4RR-21485-00-00 | Damper, Rubber 1 | 1 шт. | — | |
|
| 32 | 90111-05019-00 | Bolt,Hex. Socket Button | 4 шт. | — | |
|
| 33 | 90202-05224-00 | Washer, Plate | 4 шт. | — | |
|
| 34 | 39P-24106-00-00 | Tank Side Cover Assy 1 | 1 шт. | — | |
|
| 35 | 39P-241A3-00-00 | . .Seal 3 | 1 шт. | — | |
|
| 36 | 39P-241A5-00-00 | . .Seal 5 | 1 шт. | — | |
|
| 37 | 39P-24108-00-00 | Tank Side Cover Assy 2 | 1 шт. | — | |
|
| 38 | 39P-241A4-00-00 | . .Seal 4 | 1 шт. | — | |
|
| 39 | 39P-241A6-00-00 | . .Seal 6 | 1 шт. | — | |
|
| 40 | 2D1-2414P-00-00 | Damper, Plate 5 | 1 шт. | — | |
|
| 41 | 39P-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 42 | 90464-16005-00 | Clamp | 1 шт. | — | |
|
| 43 | 5GK-2118K-00-00 | Label, Caution | 1 шт. | — | |
|
| 44 | 5SL-2413B-00-00 | Emblem | 2 шт. | — | |
|
| 45 | 39P-24240-20-00 | Graphic Set | 1 шт. | — | — |
|
| 46 | 42P-24230-00-00 | Graphic Set 1 | 1 шт. | — | — |
|
| 47 | 5PW-2411J-01-00 | Damper, Side Cover FOR CALIFORNIA | 0 шт. | — | |
|
| 48 | 39P-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 49 | 90445-11418-00 | Hose (L18) FOR CALIFORNIA | 0 шт. | — | |
|
| 50 | 95802-06010-00 | Bolt, Flange FOR CALIFORNIA | 0 шт. | — | |
|
| 51 | 39P-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 шт. | — | |
|
| 52 | 5YU-21639-00-00 | Damper 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 53 | 92012-06020-00 | Bolt, Button Head FOR CALIFORNIA | 0 шт. | — | |
|
| 54 | 90480-14030-00 | Grommet FOR CALIFORNIA | 0 шт. | — | |
|
| 55 | 90387-065L7-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 56 | 39P-24313-00-00 | Pipe 3 FOR CALIFORNIA | 0 шт. | — | |
|
| 57 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 58 | 90461-15139-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 59 | 90269-05005-00 | Rivet FOR CALIFORNIA | 0 шт. | — | |
|
| 60 | 39P-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 61 | 39P-1444J-00-00 | Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 62 | 90467-09006-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 63 | 39P-24216-00-00 | Stay FOR CALIFORNIA | 0 шт. | — | |
|
| 64 | 92012-06016-00 | Bolt, Button Head FOR CALIFORNIA | 0 шт. | — | |
|
| 65 | 90464-10125-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 66 | 5D0-2172W-00-00 | Cover FOR CALIFORNIA | 0 шт. | — | |
|
| 67 | 90269-07077-00 | Rivet FOR CALIFORNIA | 0 шт. | — | |
|
