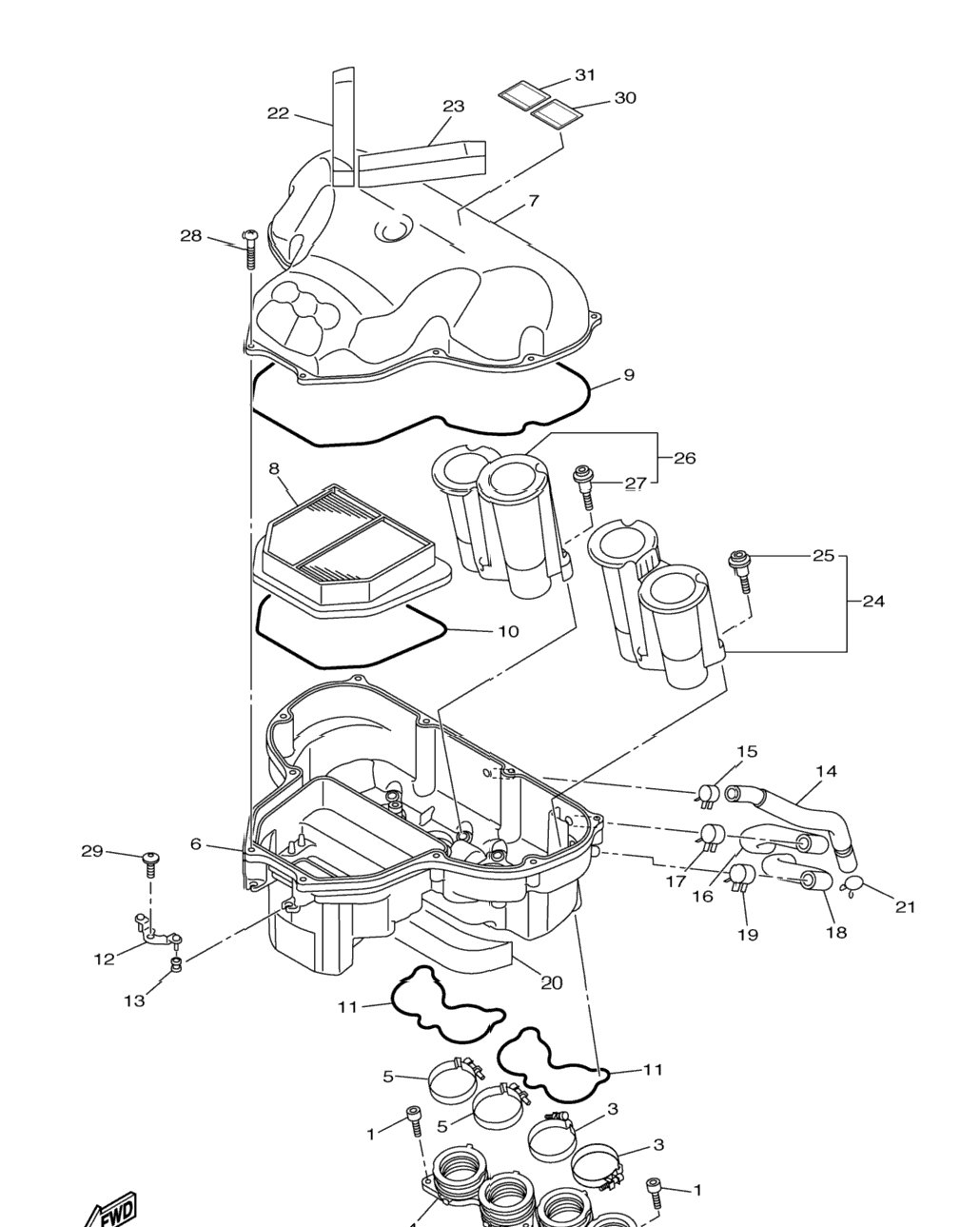

| 1 | 91312-06016-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 2 | 39P-13595-00-00 | Joint | 1 шт. | — | |
|
| 3 | 90450-56007-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 4 | 39P-13596-00-00 | Joint, Carburetor 2 | 1 шт. | — | |
|
| 5 | 90450-56007-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 6 | 39P-14411-00-00 | Case, Air Cleaner 1 | 1 шт. | — | |
|
| 7 | 39P-14421-00-00 | Case, Air Cleaner 2 | 1 шт. | — | |
|
| 8 | 2D1-14451-00-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 9 | 2D1-14452-00-00 | Seal | 1 шт. | — | |
|
| 10 | 2D1-14462-00-00 | Seal | 1 шт. | — | |
|
| 11 | 39P-14457-00-00 | Seal | 2 шт. | — | |
|
| 12 | 2D1-14498-00-00 | Stay 1 | 1 шт. | — | |
|
| 13 | 90480-08264-00 | Grommet | 2 шт. | — | |
|
| 14 | 39P-15393-00-00 | Pipe, Breather 2 | 1 шт. | — | |
|
| 15 | 90467-14171-00 | Clip | 1 шт. | — | |
|
| 16 | 39P-14148-00-00 | Pipe | 1 шт. | — | |
|
| 17 | 90467-17003-00 | Clip | 1 шт. | — | |
|
| 18 | 39P-14149-00-00 | Pipe | 1 шт. | — | |
|
| 19 | 90467-17003-00 | Clip | 1 шт. | — | |
|
| 20 | 2D1-14409-00-00 | Damper | 1 шт. | — | |
|
| 21 | 90467-14015-00 | Clip | 1 шт. | — | |
|
| 22 | 39P-14425-00-00 | Damper 1 | 1 шт. | — | |
|
| 23 | 39P-14426-00-00 | Damper 2 | 1 шт. | — | |
|
| 24 | 39P-1440B-00-00 | Joint Assy | 1 шт. | — | |
|
| 25 | 90109-05005-00 | . Bolt | 3 шт. | — | |
|
| 26 | 39P-1440C-00-00 | Joint Assy 2 | 1 шт. | — | |
|
| 27 | 90109-05005-00 | . Bolt | 3 шт. | — | |
|
| 28 | 90160-05013-00 | Screw, Round Tapping | 11 шт. | — | |
|
| 29 | 90111-06038-00 | Bolt,Hex. Socket Button | 1 шт. | — | |
|
| 30 | 39P-21686-00-00 | Plate, Routing 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 31 | 13S-21684-10-00 | Plate, Routing FOR CALIFORNIA | 0 шт. | — | |
|
