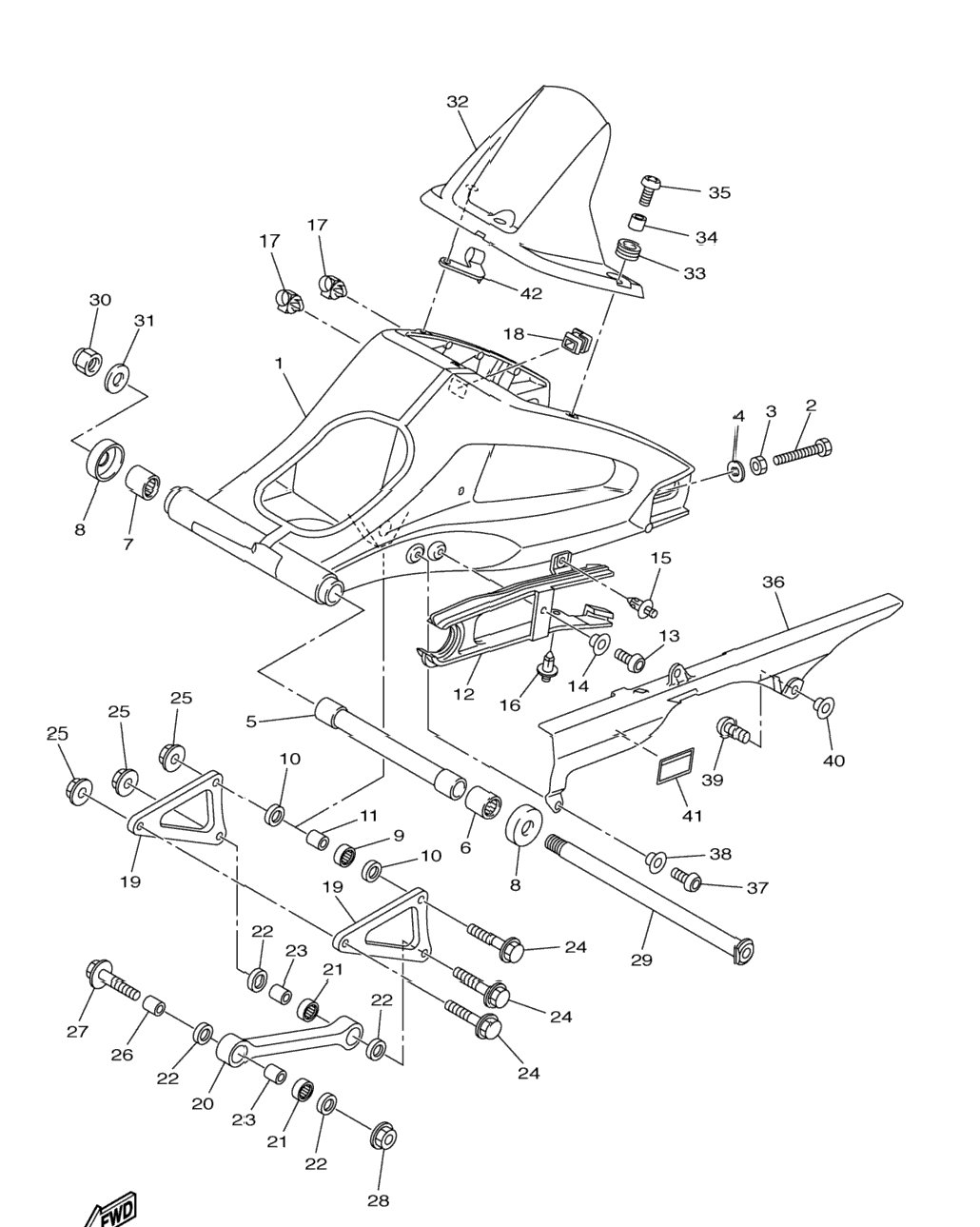

| 1 | 39P-22110-00-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 90101-08013-00 | Bolt | 2 шт. | — | |
|
| 3 | 95302-08600-00 | Nut, Hexagon | 2 шт. | — | |
|
| 4 | 90201-08057-00 | Washer, Plate | 2 шт. | — | |
|
| 5 | 39P-22184-00-00 | Bush | 1 шт. | — | |
|
| 6 | 93317-42599-00 | Bearing | 1 шт. | — | |
|
| 7 | 93315-42536-00 | .Bearing | 1 шт. | — | |
|
| 8 | 5JJ-22128-00-00 | Cover, Thrust 1 | 2 шт. | — | |
|
| 9 | 93315-41762-00 | Bearing | 1 шт. | — | |
|
| 10 | 93109-17071-00 | Oil Seal | 2 шт. | — | |
|
| 11 | 90387-1012A-00 | Collar | 1 шт. | — | |
|
| 12 | 2D1-22151-00-00 | Seal, Guard | 1 шт. | — | |
|
| 13 | 92012-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 14 | 90387-06130-00 | Collar | 1 шт. | — | |
|
| 15 | 90269-07007-00 | Rivet | 1 шт. | — | |
|
| 16 | 90269-07008-00 | Rivet | 1 шт. | — | |
|
| 17 | 90464-17003-00 | Clamp | 2 шт. | — | |
|
| 18 | 2D1-22117-00-00 | Cap | 1 шт. | — | |
|
| 19 | 2D1-2217A-10-00 | Arm, Relay | 2 шт. | — | |
|
| 20 | 2D1-2217M-00-00 | Arm 1 | 1 шт. | — | |
|
| 21 | 93315-31758-00 | Bearing | 2 шт. | — | |
|
| 22 | 93109-17071-00 | Oil Seal | 4 шт. | — | |
|
| 23 | 90387-1012A-00 | Collar | 2 шт. | — | |
|
| 24 | 90105-10283-00 | Bolt, Flange | 3 шт. | — | |
|
| 25 | 95602-10200-00 | Nut, S/L Flange | 3 шт. | — | |
|
| 26 | 90387-10043-00 | Collar | 1 шт. | — | |
|
| 27 | 90105-10211-00 | Bolt, Flange | 1 шт. | — | |
|
| 28 | 95602-10200-00 | Nut, S/L Flange | 1 шт. | — | |
|
| 29 | 39P-22141-00-00 | Shaft, Pivot | 1 шт. | — | |
|
| 30 | 90185-18009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 31 | 90201-18013-00 | Washer, Plate | 1 шт. | — | |
|
| 32 | 2D1-21650-00-00 | Rear Fender Comp | 1 шт. | — | |
|
| 33 | 90480-12003-00 | Grommet | 3 шт. | — | |
|
| 34 | 90387-06219-00 | Collar | 3 шт. | — | |
|
| 35 | 90149-06302-00 | Screw | 3 шт. | — | |
|
| 36 | 5SL-22311-00-00 | Case, Chain | 1 шт. | — | |
|
| 37 | 92012-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 38 | 90387-06130-00 | Collar | 1 шт. | — | |
|
| 39 | 90110-06102-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 40 | 90387-06009-00 | Collar | 2 шт. | — | |
|
| 41 | 14B-21668-00-00 | Label, Tire | 1 шт. | — | |
|
| 42 | 2D1-25886-00-00 | Holder, Brake Hose | 1 шт. | — | |
|
