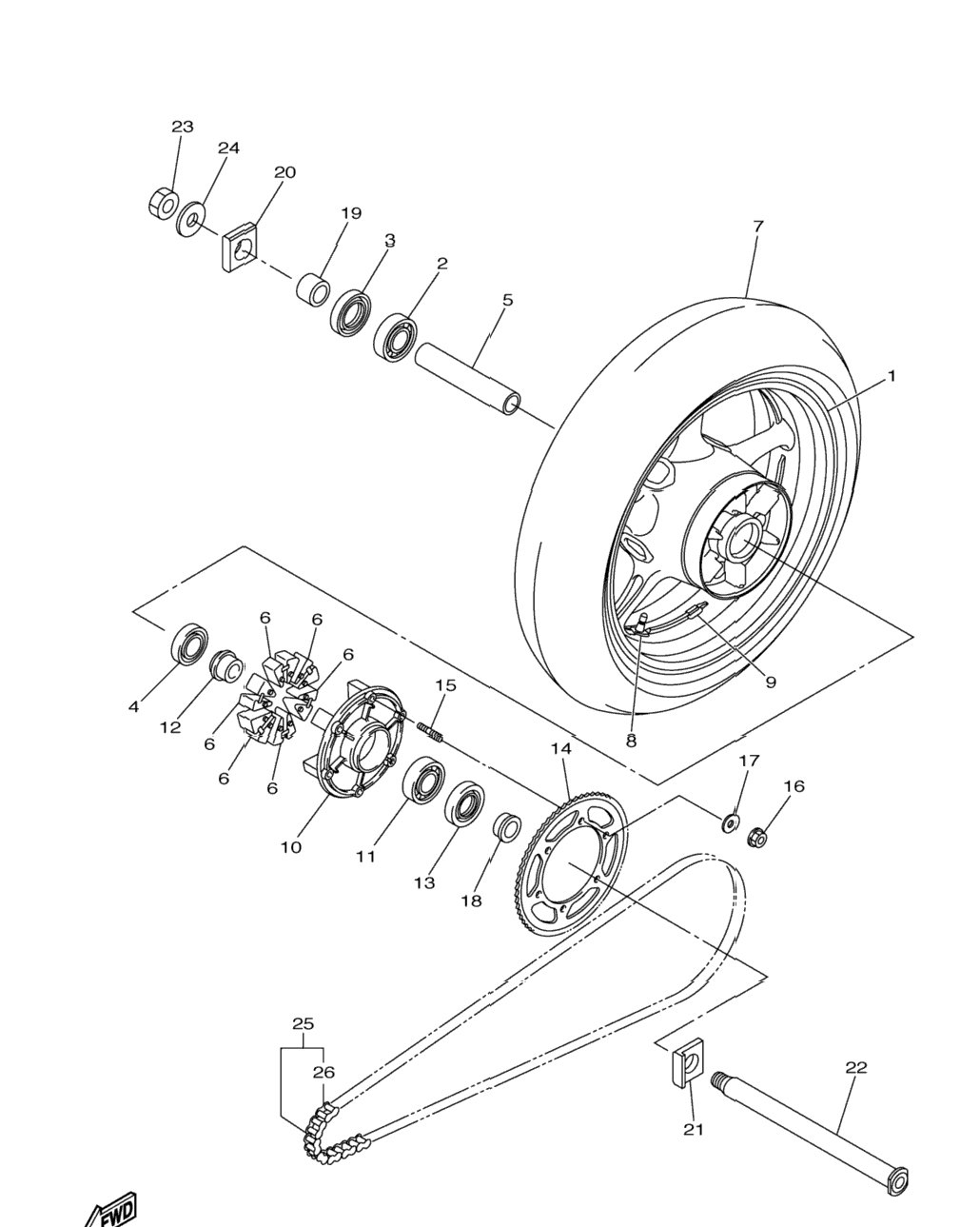

| 1 | 39P-25338-00-98 | Cast Wheel, Rear LGB | 1 шт. | — | |
|
| 2 | 93306-20531-00 | Bearing | 1 шт. | — | |
|
| 3 | 93106-40013-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 93306-07806-00 | Bearing | 1 шт. | — | |
|
| 5 | 39P-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 6 | 5EA-25364-00-00 | Damper | 6 шт. | — | |
|
| 7 | 94118-17072-00 | Tire (180/55Zr17m/C 73W Bt021r) BRIDGESTONE | 0 шт. | — | |
|
| 8 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 9 | 5MT-25398-00-00 | Balancer, Wheel (10G) UN | 1 шт. | — | |
|
| 10 | 5MT-25398-10-00 | Balancer, Wheel (20G) UN | 1 шт. | — | |
|
| 11 | 5MT-25398-20-00 | Balancer, Wheel (30G) UN | 1 шт. | — | |
|
| 12 | 20S-25366-10-00 | Clutch, Hub | 1 шт. | — | |
|
| 13 | 93306-20659-00 | Bearing | 1 шт. | — | |
|
| 14 | 4FM-25377-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 15 | 93106-40041-00 | Oil Seal | 1 шт. | — | |
|
| 16 | 39P-25446-00-00 | Sprocket, Driven (46T) | 1 шт. | — | |
|
| 17 | 90116-10048-00 | Bolt, Stud | 6 шт. | — | |
|
| 18 | 90185-10012-00 | Nut, Self-Locking | 6 шт. | — | |
|
| 19 | 90201-10021-00 | Washer, Plate | 6 шт. | — | |
|
| 20 | 90387-28015-00 | Collar | 1 шт. | — | |
|
| 21 | 90387-28014-00 | Collar | 1 шт. | — | |
|
| 22 | 5VY-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 23 | 5VY-25389-01-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 24 | 2D1-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 25 | 90185-24007-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 26 | 90201-25020-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 94582-31122-00 | Chain (Did 525V10-121Ll) | 0 шт. | — | |
|
| 28 | 94682-31031-00 | . .Joint, Chain (Did 525V10-Zj) | 1 шт. | — | |
|
