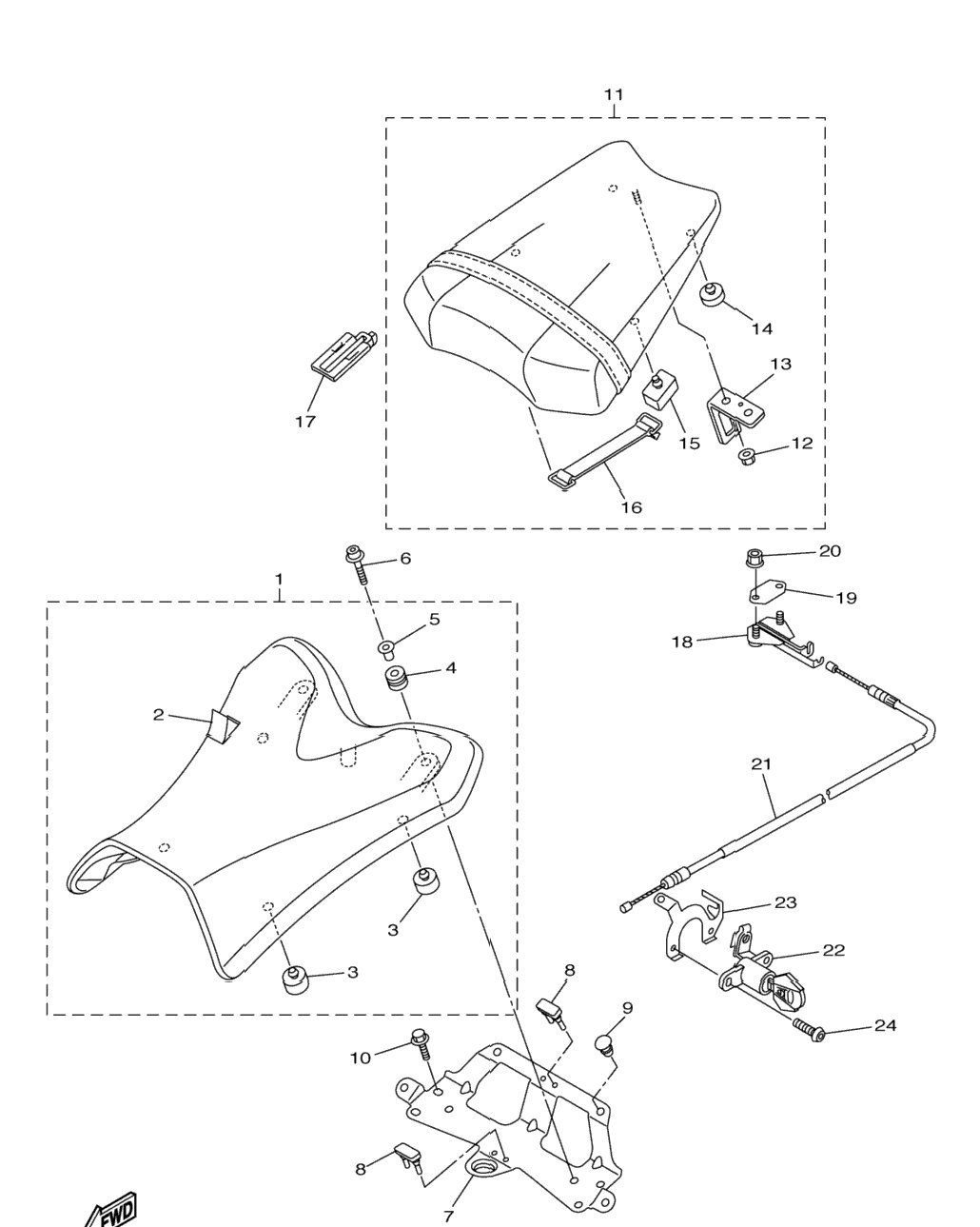

| 1 | 39P-24710-10-00 | Single Seat Assy | 1 шт. | — | — |
|
| 2 | 39P-2470F-10-00 | . .Seat Cover Comp | 1 шт. | — | — |
|
| 3 | 278-27114-00-00 | . .Stopper, Main Stand | 4 шт. | — | |
|
| 4 | 90480-14604-00 | . .Grommet | 2 шт. | — | |
|
| 5 | 90387-07391-00 | . Collar | 2 шт. | — | |
|
| 6 | 90110-06232-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 7 | 39P-21349-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 8 | 682-44532-00-00 | Stopper, Upper Mount | 2 шт. | — | |
|
| 9 | 90338-07043-00 | Plug | 2 шт. | — | |
|
| 10 | 95022-06010-00 | .Bolt, Flange | 4 шт. | — | |
|
| 11 | 39P-24750-10-00 | Tandem Seat Assy | 1 шт. | — | — |
|
| 12 | 95702-06500-00 | . Nut, Flange | 1 шт. | — | |
|
| 13 | 4NK-24728-00-00 | . .Bracket, Seat | 1 шт. | — | |
|
| 14 | 22W-24741-00-00 | . .Pad, Seat | 2 шт. | — | |
|
| 15 | 39P-24741-00-00 | . .Pad, Seat | 2 шт. | — | |
|
| 16 | 18G-82131-00-00 | . Band, Battery | 1 шт. | — | |
|
| 17 | 39P-24768-00-00 | Stopper | 1 шт. | — | |
|
| 18 | 4BP-24780-00-00 | Seat Lock Assy | 1 шт. | — | |
|
| 19 | 4BP-24792-00-00 | Plate | 1 шт. | — | |
|
| 20 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 21 | 2D1-2478E-00-00 | Cable, Seat Lock | 1 шт. | — | |
|
| 22 | 2TV-W2470-00-00 | Rotor Set | 1 шт. | — | |
|
| 23 | 4XV-2117K-00-00 | Stay, Lock | 1 шт. | — | |
|
| 24 | 90149-06134-00 | Screw | 2 шт. | — | |
|
