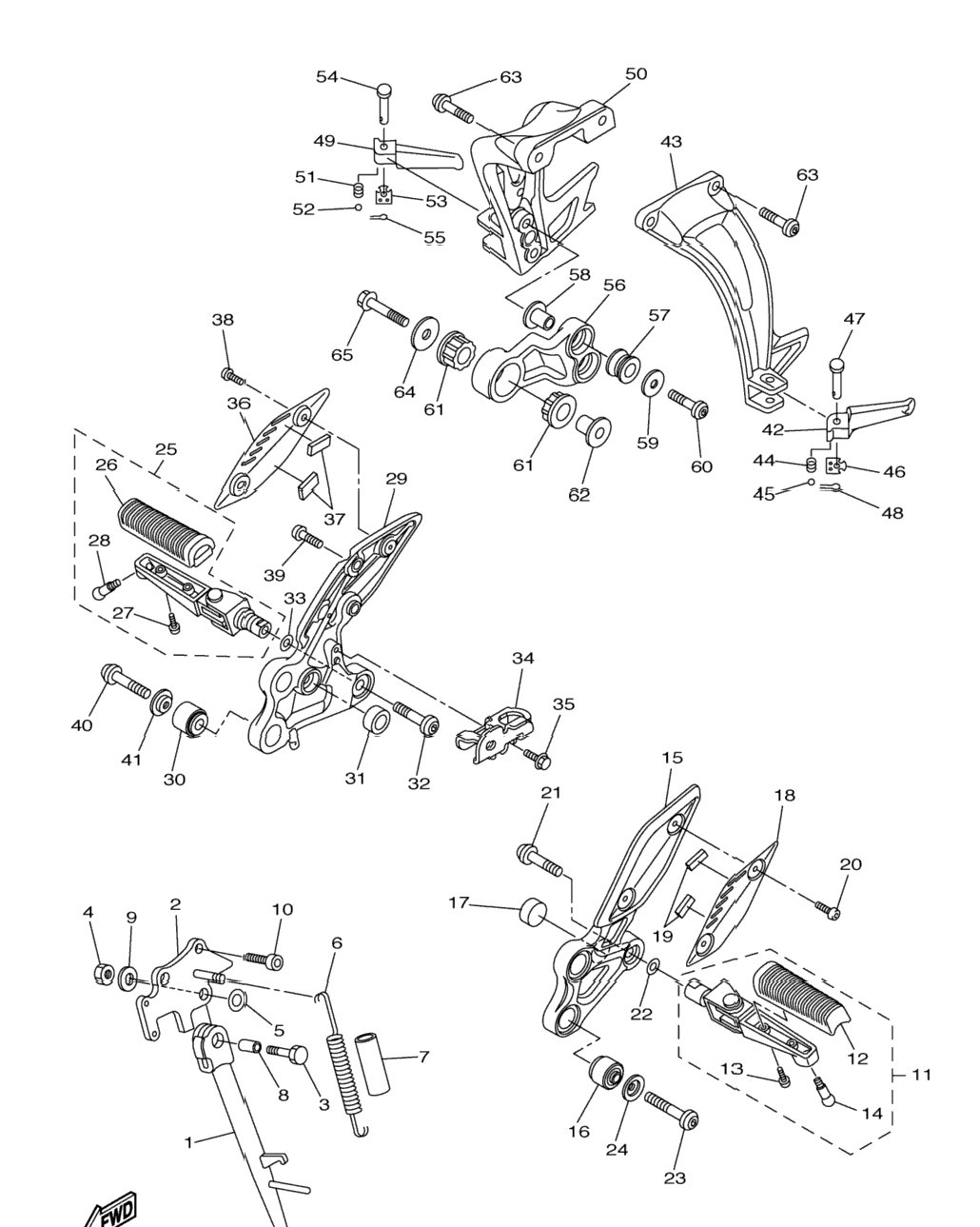

| 1 | 39P-27311-00-00 | Stand, Side | 1 шт. | — | |
|
| 2 | 2D1-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 3 | 90101-10025-00 | Bolt | 1 шт. | — | |
|
| 4 | 90185-10023-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 5 | 90201-16027-00 | Washer, Plate | 1 шт. | — | |
|
| 6 | 90506-18020-00 | Spring, Tension | 1 шт. | — | |
|
| 7 | 90445-19002-00 | Hose (L60) | 1 шт. | — | |
|
| 8 | 90387-10050-00 | Collar | 1 шт. | — | |
|
| 9 | 90201-10035-00 | Washer, Plate | 1 шт. | — | |
|
| 10 | 90110-10028-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 11 | 39P-27410-00-00 | Front Footrest Assy (Left) | 1 шт. | — | |
|
| 12 | 4BP-27413-00-00 | . Cover, Footrest | 1 шт. | — | |
|
| 13 | 90157-05025-00 | . Screw, Pan Head | 2 шт. | — | |
|
| 14 | 90109-08203-00 | . Bolt | 1 шт. | — | |
|
| 15 | 39P-27442-00-00 | Bracket 2 | 1 шт. | — | |
|
| 16 | 1NL-27424-00-00 | Damper, Footrest 2 | 2 шт. | — | |
|
| 17 | 5VX-27114-00-00 | Stopper, Main Stand | 1 шт. | — | |
|
| 18 | 39P-27486-00-00 | Cover 1 | 1 шт. | — | |
|
| 19 | 1HX-27415-00-00 | Plate, Damper | 2 шт. | — | |
|
| 20 | 90111-05015-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 21 | 90111-10039-00 | Bolt,Hex. Socket Button | 1 шт. | — | |
|
| 22 | 90206-17084-00 | Washer, Wave | 1 шт. | — | |
|
| 23 | 90110-08071-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 24 | 90209-08295-00 | Washer | 2 шт. | — | |
|
| 25 | 39P-27420-00-00 | Front Footrest Assy (Right) | 1 шт. | — | |
|
| 26 | 4BP-27413-00-00 | . Cover, Footrest | 1 шт. | — | |
|
| 27 | 90157-05025-00 | . Screw, Pan Head | 2 шт. | — | |
|
| 28 | 90109-08203-00 | . Bolt | 1 шт. | — | |
|
| 29 | 39P-27443-00-00 | Bracket 3 | 1 шт. | — | |
|
| 30 | 1NL-27424-00-00 | Damper, Footrest 2 | 2 шт. | — | |
|
| 31 | 5VX-27114-00-00 | Stopper, Main Stand | 1 шт. | — | |
|
| 32 | 90111-10039-00 | Bolt,Hex. Socket Button | 1 шт. | — | |
|
| 33 | 90206-17084-00 | Washer, Wave | 1 шт. | — | |
|
| 34 | 39P-2144G-00-00 | Stay, Stop Switch | 1 шт. | — | |
|
| 35 | 95802-06008-00 | Bolt, Flange | 1 шт. | — | |
|
| 36 | 39P-27487-00-00 | Cover 2 | 1 шт. | — | |
|
| 37 | 1HX-27415-00-00 | Plate, Damper | 2 шт. | — | |
|
| 38 | 90111-05015-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 39 | 92017-08020-00 | Bolt, Button Head | 2 шт. | — | |
|
| 40 | 90110-08071-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 41 | 90209-08295-00 | Washer | 2 шт. | — | |
|
| 42 | 3VR-27431-01-00 | .Footrest, Rear 1 | 1 шт. | — | |
|
| 43 | 2D1-2741L-10-00 | Bracket 4 | 1 шт. | — | |
|
| 44 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 45 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 46 | 5VX-27437-00-00 | Washer, Special | 1 шт. | — | |
|
| 47 | 91702-08040-00 | Pin, Clevis | 1 шт. | — | |
|
| 48 | 91401-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 49 | 3VR-27441-01-00 | .Footrest, Rear 2 | 1 шт. | — | |
|
| 50 | 39P-2742L-00-00 | Bracket 5 | 1 шт. | — | |
|
| 51 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 52 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 53 | 5VX-27437-00-00 | Washer, Special | 1 шт. | — | |
|
| 54 | 91702-08040-00 | Pin, Clevis | 1 шт. | — | |
|
| 55 | 91401-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 56 | 39P-21436-00-00 | Bracket, Muffler 2 | 1 шт. | — | |
|
| 57 | 5BE-14747-00-00 | Damper, Muffler | 2 шт. | — | |
|
| 58 | 90387-08021-00 | Collar | 2 шт. | — | |
|
| 59 | 90201-08054-00 | Washer, Plate | 2 шт. | — | |
|
| 60 | 92012-08035-00 | Bolt, Button Head | 2 шт. | — | |
|
| 61 | 39P-27424-00-00 | Damper, Footrest 2 | 2 шт. | — | |
|
| 62 | 90387-10097-00 | Collar | 1 шт. | — | |
|
| 63 | 90109-085G6-00 | Bolt | 4 шт. | — | |
|
| 64 | 90201-10073-00 | Washer, Plate | 1 шт. | — | |
|
| 65 | 90105-10158-00 | Bolt, Flange | 1 шт. | — | |
|
